FRONT FORK
KX80-P1 1988 AL

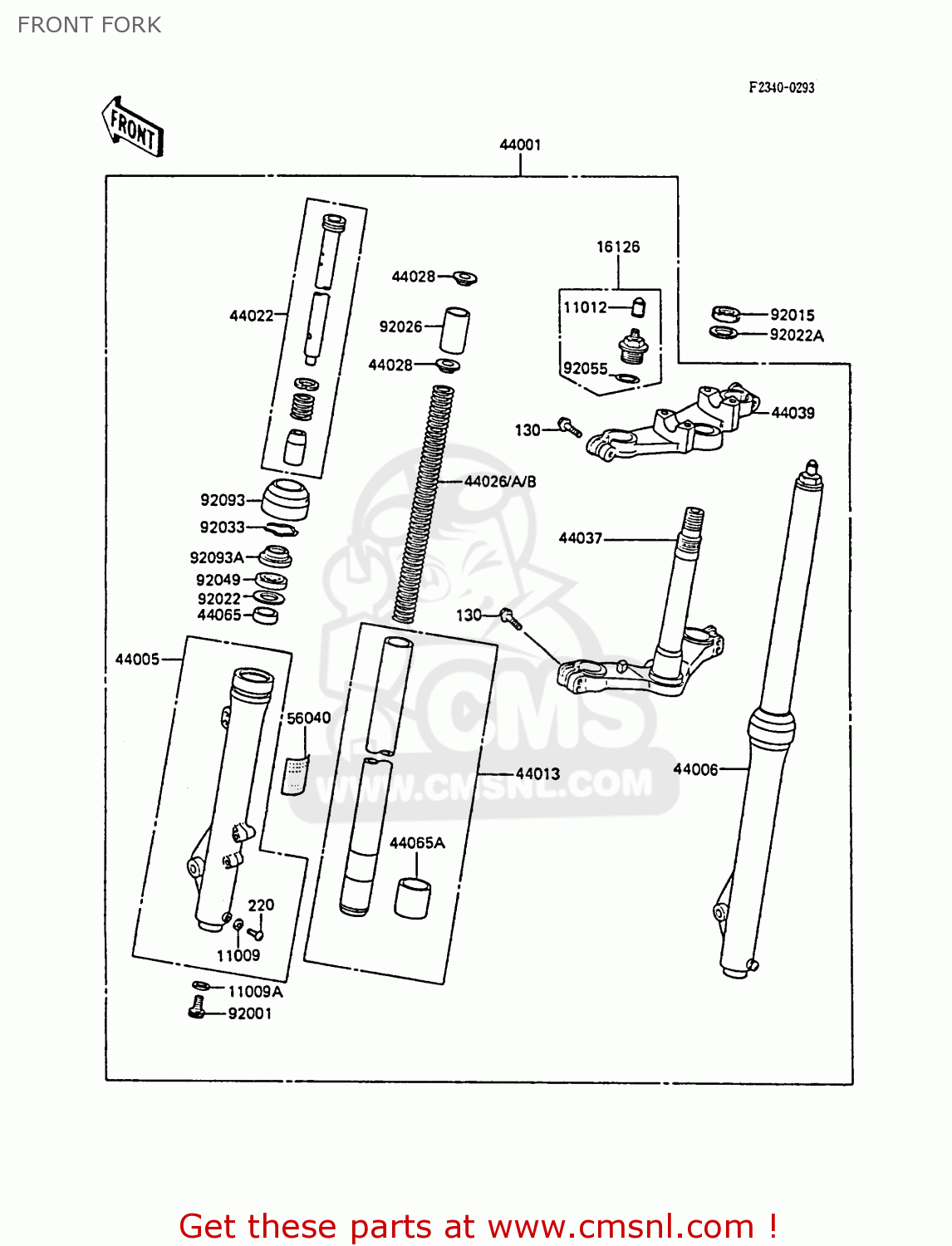

Front fork diagram KX80-P1 1988 AL
FRONT FORK KX80-P1 1988 AL
×
prices are in EUR
ref
part #
description
quantity
130
130G0835
ref: 130
BOLT,FLANGED,8X35
€ 1.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
11012
110121391
ref: 11012
CAP,VALVE AIR
€ 3.50
16126
161261145
ref: 16126
VALVE,AIR
€ 38.00
44001
440011670
ref: 44001
FORK-FRONT
€ 503.00
44005
440051263
ref: 44005
PIPE-LEFT FORK OUTER
€ 204.00
44006
440061260
ref: 44006
PIPE-RIGHT FORK OUTER
€ 185.00
44013
440131267
ref: 44013
PIPE-FORK INNER
€ 86.50
44022
440221214
ref: 44022
CYLINDER-FORK
€ 47.50
44026
440261371
ref: 44026
SPRING-FRONT FORK,K=0
€ 46.50
44026A
440261389
ref: 44026A
SPRING FRONT FORK
€ 31.00
44026B
440261390
ref: 44026B
SPRING-FRONT FORK,K=0
€ 21.00
44028
440281004
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44037
440371225
ref: 44037
HOLDER-FORK UNDER
€ 138.50
44039
440391162
ref: 44039
HOLDER-FORK UPPER
€ 104.00
44065
440651065
ref: 44065
BUSHING-FRONT FORK
€ 9.50
44065A
440651075
ref: 44065A
BUSHING-FRONT FORK,IN
€ 11.50
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92015
920151653
ref: 92015
NUT,STEERING STEM,22M
€ 11.50
92022
920221801
ref: 92022
WASHER,FORK
€ 4.00
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92026
920261305
ref: 92026
SPACER,FORK,L=60
€ 3.00
92033
44044015
ref: 92033
CIRCLIP
€ 9.50
92049
920491252
ref: 92049
SEAL-OIL,FORK
€ 16.00
92055
920551318
ref: 92055
RING-O
€ 3.00
92093
920931202
ref: 92093
SEAL,FORK
€ 11.50
92093A
920931250
ref: 92093A
SEAL,FORK OUTER TUBE
€ 9.00
