FUEL TANK

KX80-M1 1988 AL

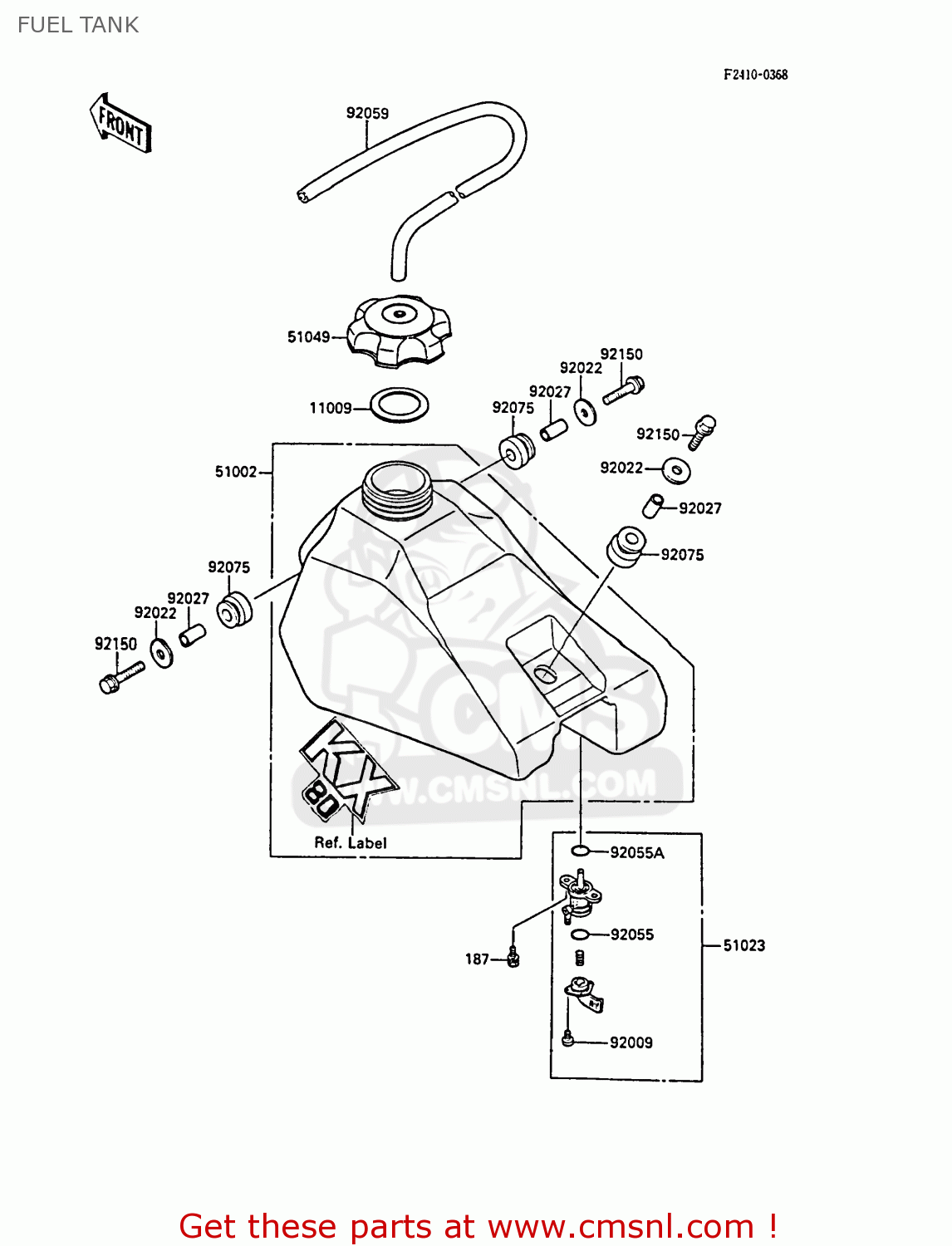

Fuel tank diagram KX80-M1 1988 AL

FUEL TANK KX80-M1 1988 AL

FUEL TANK KX80-M1 1988 AL

prices are in EUR

ref

part #

description

quantity

187

187B0616
ref: 187

BOLT-UPSET-WSP

€ 0.50

11009

110091622
ref: 11009

GASKET,FUEL TANK CAP (NAS)

€ 4.00

51002

5100253516W
ref: 51002

TANK-COMP-FUEL,L.GREE

€ 323.00

51023

510231115
ref: 51023

TAP-ASSY,FUEL

€ 37.00

51049

510491089
ref: 51049

CAP-TANK

€ 19.00

92009

920091386
ref: 92009

SCREW,3X8

€ 2.00

92022

920221690
ref: 92022

WASHER

€ 2.50

92027

920271833
ref: 92027

COLLAR,6.8X10X17

€ 3.50

92055

920551299
ref: 92055

RING-O

€ 1.00

92055A

920551300
ref: 92055A

RING-O,FUEL TAP PACKI

€ 5.00

92059

920591265
ref: 92059

TUBE,5X9X350

€ 7.00

92075

920751660
ref: 92075

DAMPER

€ 5.50

92150

921501124
ref: 92150

BOLT

€ 3.00
