FRONT FORK
KX80-L3 1990 UNITED KINGDOM AL

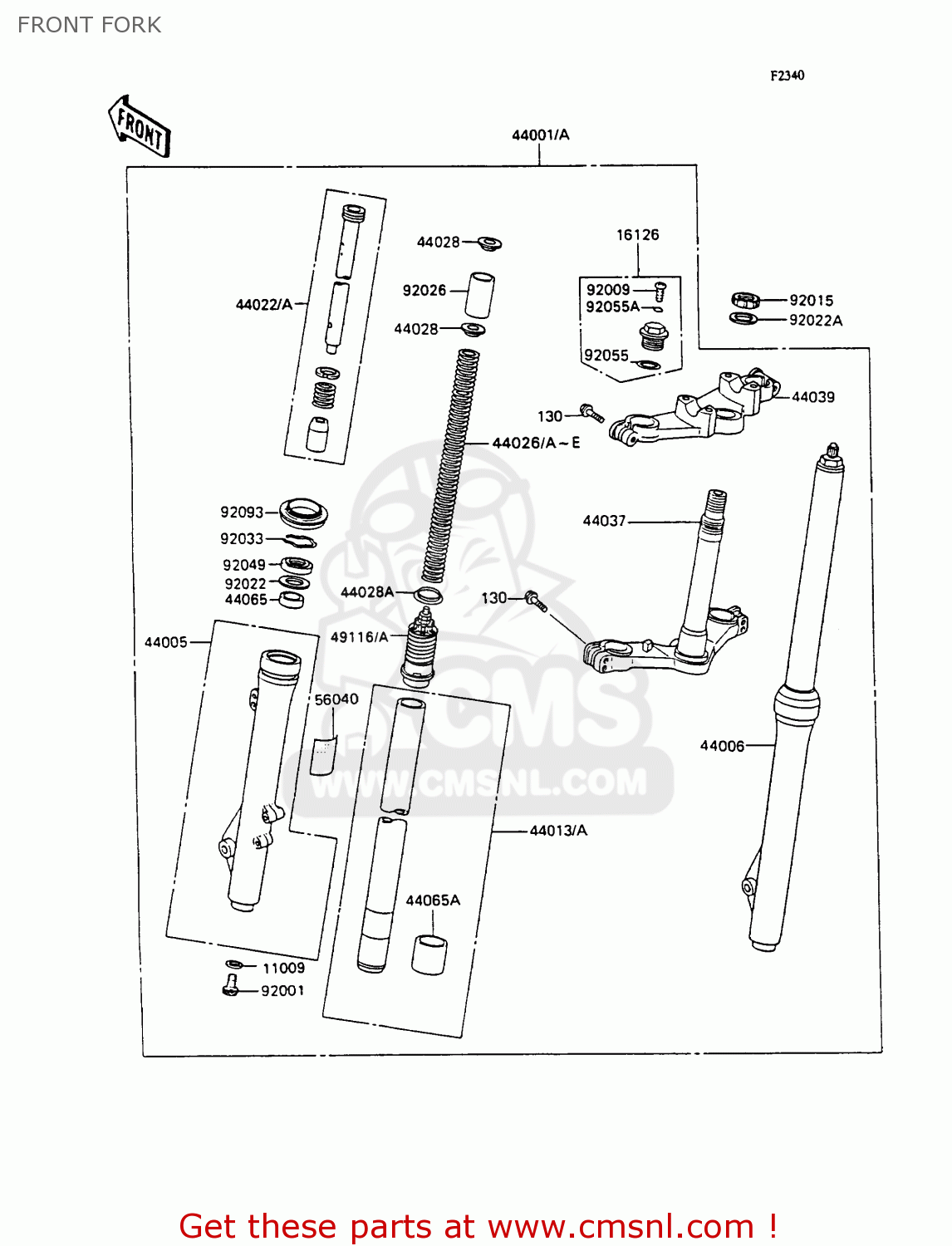

Front fork diagram KX80-L3 1990 UNITED KINGDOM AL
FRONT FORK KX80-L3 1990 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
44045057
ref: 11009
GASKET (NAS)
€ 3.00
16126
161261230
ref: 16126
VALVE,AIR
€ 35.00
44001
440011736
ref: 44001
FORK-FRONT
€ 713.50
44005
440051302
ref: 44005
PIPE-LEFT FORK OUTER
€ 223.00
44006
440061298
ref: 44006
PIPE-RIGHT FORK OUTER
€ 166.50
44013
440131298
ref: 44013
PIPE-FORK INNER
€ 111.50
44022
440221243
ref: 44022
CYLINDER-FORK
€ 59.00
44026
440261436
ref: 44026
SPRING-FRONT FORK,K=0
€ 26.50
44026B
440261447
ref: 44026B
SPRING-FRONT FORK,K=0
€ 26.50
44026C
440261448
ref: 44026C
SPRING-FRONT FORK,K=0
€ 31.00
44028
440281004
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44028A
440281068
ref: 44028A
GUIDE-FORK SPRING
€ 5.50
44037
440371225
ref: 44037
HOLDER-FORK UNDER
€ 138.50
44039
440391183
ref: 44039
HOLDER-FORK UPPER
€ 66.00
44065
440651097
ref: 44065
BUSHING-FRONT FORK
€ 9.50
44065A
440651098
ref: 44065A
BUSHING-FRONT FORK,IN
€ 12.50
49116
491161079
ref: 49116
VALVE-ASSY,FORK
€ 92.50
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151653
ref: 92015
NUT,STEERING STEM,22M
€ 11.50
92022
920221801
ref: 92022
WASHER,FORK
€ 4.00
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92033
44044015
ref: 92033
CIRCLIP
€ 9.50
92049
920491350
ref: 92049
SEAL-OIL,FORK
€ 10.00
92055
920551318
ref: 92055
RING-O
€ 3.00
92055A
920551441
ref: 92055A
RING-O
€ 2.50
92093
920931304
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.00
130
130G0835
ref: 130
BOLT,FLANGED,8X35
€ 1.00
