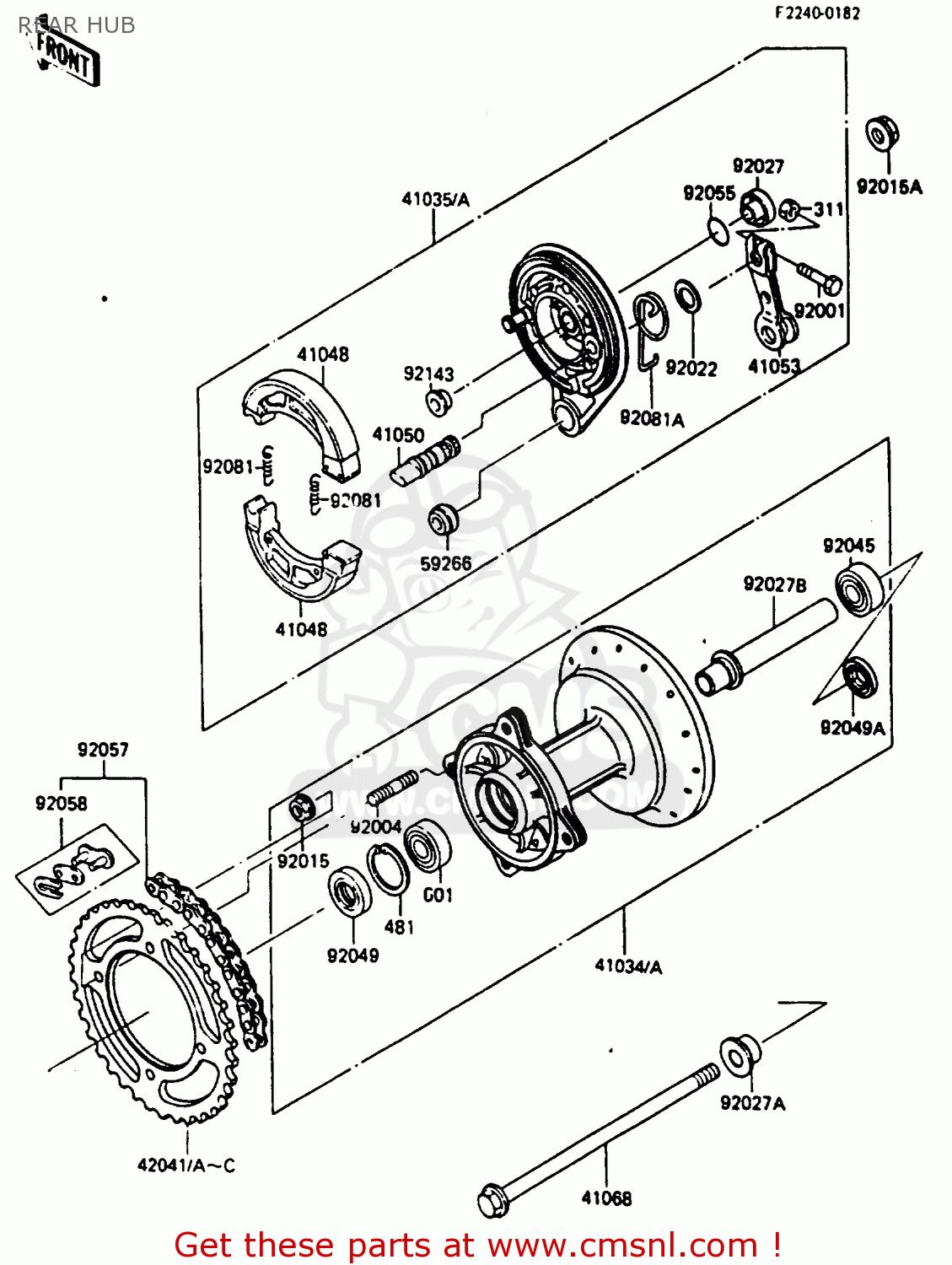

REAR HUB

ref

part #

description

quantity

41034A

410341151
ref: 41034A

DRUM-ASSY,REAR BRAKE

€ 196.00

41035A

410351214
ref: 41035A

PANEL-ASSY-BRAKE,RR

€ 157.50

41048

410481022
ref: 41048

SHOE-BRAKE (MCA)

€ 13.00

41050

410501061
ref: 41050

CAM-BRAKE,RR

€ 13.50

41053

410531062
ref: 41053

LEVER-BRAKE CAM

€ 37.50

41068

410681201
ref: 41068

AXLE,RR

€ 25.50

42041

420411229
ref: 42041
(OPTION)

SPROCKET-HUB

€ 36.00

42041A

420411246
ref: 42041A
(OPTION)

SPROCKET-HUB,53T

€ 35.00

420418

420411247
ref: 420418

SPROCKET-HUB,55T

€ 31.50

42041C

420411248
ref: 42041C
(OPTION)

SPROCKET-HUB

€ 29.00

59266

592661013
ref: 59266

JOINT-BALL,BRAKE PANE

€ 33.00

92001

920011695
ref: 92001

BOLT,5X25

€ 3.00

92004

920041053
ref: 92004

STUD,8X16

€ 2.50

92015

920151022
ref: 92015

NUT, 8MM

€ 0.50

92015A

920151156
ref: 92015A

NUT,12MM

€ 4.50

92022

920221715
ref: 92022

WASHER,13X26X0.5

€ 3.50

92027

920271542
ref: 92027

COLLAR,BRAKE PANEL,RH

€ 20.00

9207A

920271013
ref: 9207A

COLLAR,REAR HUB BRG

€ 15.50

92027B

920271927
ref: 92027B

COLLAR,L=113.5

€ 11.50

92045

920451062
ref: 92045

BEARING-BALL,TMB201LL

€ 24.50

92049

920491096
ref: 92049

SEAL-OIL,DD20377

€ 11.00

92049A

920491232
ref: 92049A

SEAL-OIL,DC25323.5

€ 6.50

92055

92055076
ref: 92055

O RING,25.5MM

€ 7.50

92057

920571207
ref: 92057

CHAIN,DRIVE,DID420MX1

€ 32.50

92058

920581053
ref: 92058

JOINT-CHAIN

€ 5.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92081A

920811897
ref: 92081A

SPRING,BRAKE CAM LEVE

€ 6.00

92143

921431022
ref: 92143

COLLAR,L=19.25

€ 10.50

311

311G0500
ref: 311

NUT-HEX

€ 2.50

481

481J3700
ref: 481

CIRCLIP-TYPE-C,37MM

€ 1.50

601

601B6301UU
ref: 601

BEARING-BALL,#6301UUC

€ 24.00

all assemblies
