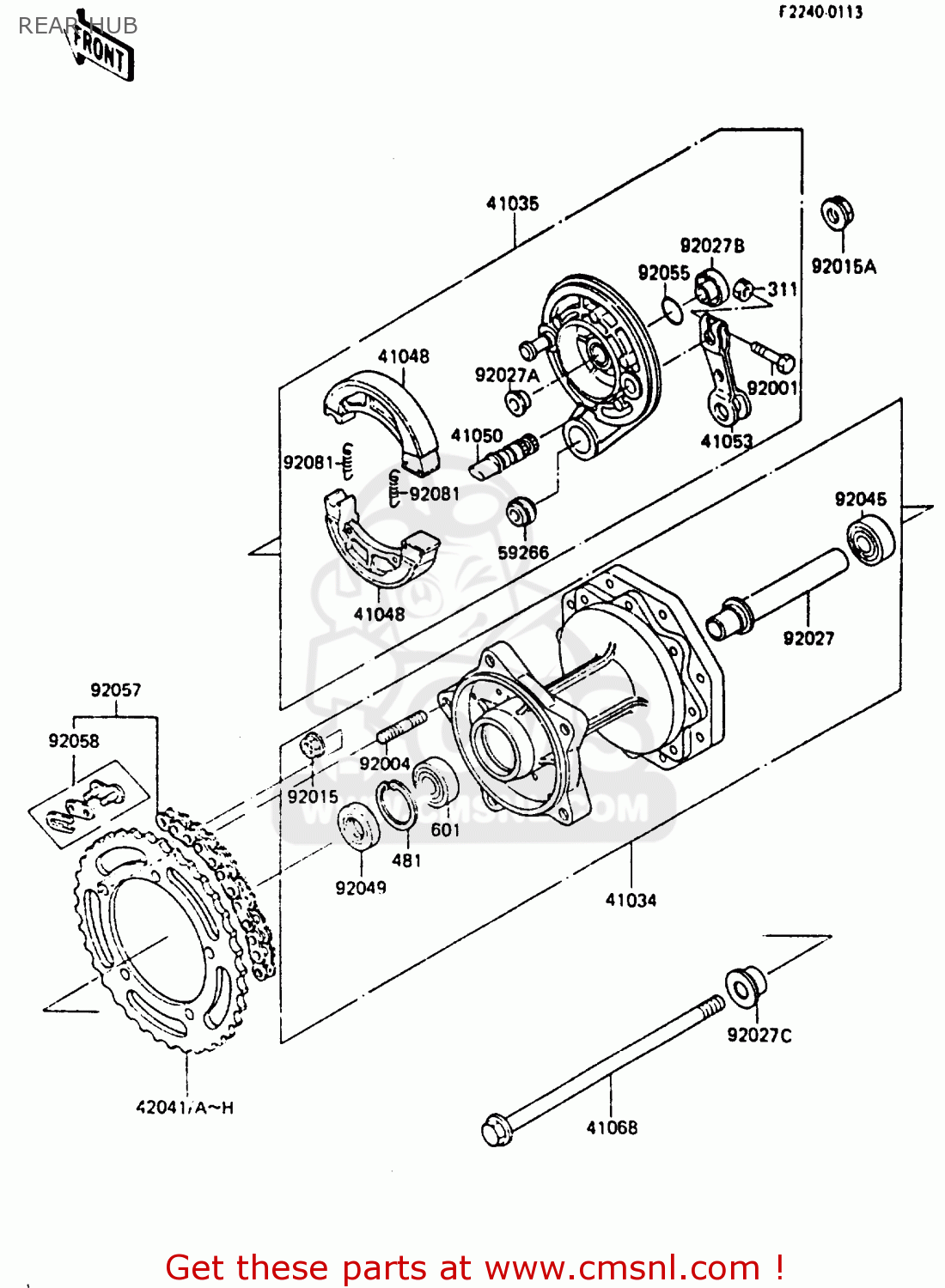

REAR HUB

ref

part #

description

quantity

41034

410341066
ref: 41034

DRUM ASSY,REAR BRAKE

€ 366.00

41035

410351169
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 226.00

41048

410481022
ref: 41048

SHOE-BRAKE (MCA)

€ 13.00

41050

410501028
ref: 41050

CAM-BRAKE,RR

€ 16.50

41053

410531057
ref: 41053

LEVER-BRAKE CAM,RR

€ 41.00

41068

410681177
ref: 41068

AXLE,RR

€ 29.00

42041

420411116
ref: 42041
(OPTION)

SPROCKET-HUB,43T

€ 31.00

42041A

420411116
ref: 42041A
(OPTION)

SPROCKET-HUB,43T

€ 31.00

42041B

420411117
ref: 42041B
(OPTION)

SPROCKET-HUB,45T

€ 33.00

42041C

420411121
ref: 42041C
(OPTION)

SPROCKET-HUB,49T

€ 31.00

42041D

420411122
ref: 42041D
(OPTION)

SPROCKET-HUB,48T

€ 38.00

42041E

420411123
ref: 42041E

SPROCKET-HUB,50T

€ 33.00

42041F

420411129
ref: 42041F
(OPTION)

SPROCKET HUB 47T KIT

€ 32.50

42041G

420411178
ref: 42041G
(OPTION)

SPROCKET-HUB,46T

€ 32.50

42041H

420411181
ref: 42041H
(OPTION)

SPROCKET-HUB,51T

€ 36.00

59266

592661011
ref: 59266

JOINT-BALL

€ 50.50

92001

920011695
ref: 92001

BOLT,5X25

€ 3.00

92004

920041053
ref: 92004

STUD,8X16

€ 2.50

92015

920151022
ref: 92015

NUT, 8MM

€ 0.50

92015A

920151156
ref: 92015A

NUT,12MM

€ 4.50

92027

920271471
ref: 92027

COLLAR,REAR DRUM,L=11

€ 13.00

92027A

920271541
ref: 92027A

COLLAR,BRAKE PANEL,LH

€ 13.00

92027B

920271542
ref: 92027B

COLLAR,BRAKE PANEL,RH

€ 20.00

92027C

920271813
ref: 92027C

COLLAR,REAR AXLE,14.5

€ 10.00

92045

920451062
ref: 92045

BEARING-BALL,TMB201LL

€ 24.50

92049

920491096
ref: 92049

SEAL-OIL,DD20377

€ 11.00

92055

92055076
ref: 92055

O RING,25.5MM

€ 7.50

92057

920571173
ref: 92057

CHAIN,DRIVE,DID420MX1

€ 67.00

92058

920581053
ref: 92058

JOINT-CHAIN

€ 5.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

311

311G0500
ref: 311

NUT-HEX

€ 2.50

481

481J3700
ref: 481

CIRCLIP-TYPE-C,37MM

€ 1.50

601

601B6301UU
ref: 601

BEARING-BALL,#6301UUC

€ 24.00
