FRONT FORK
KX80-E2 1984 USA CANADA UK AL

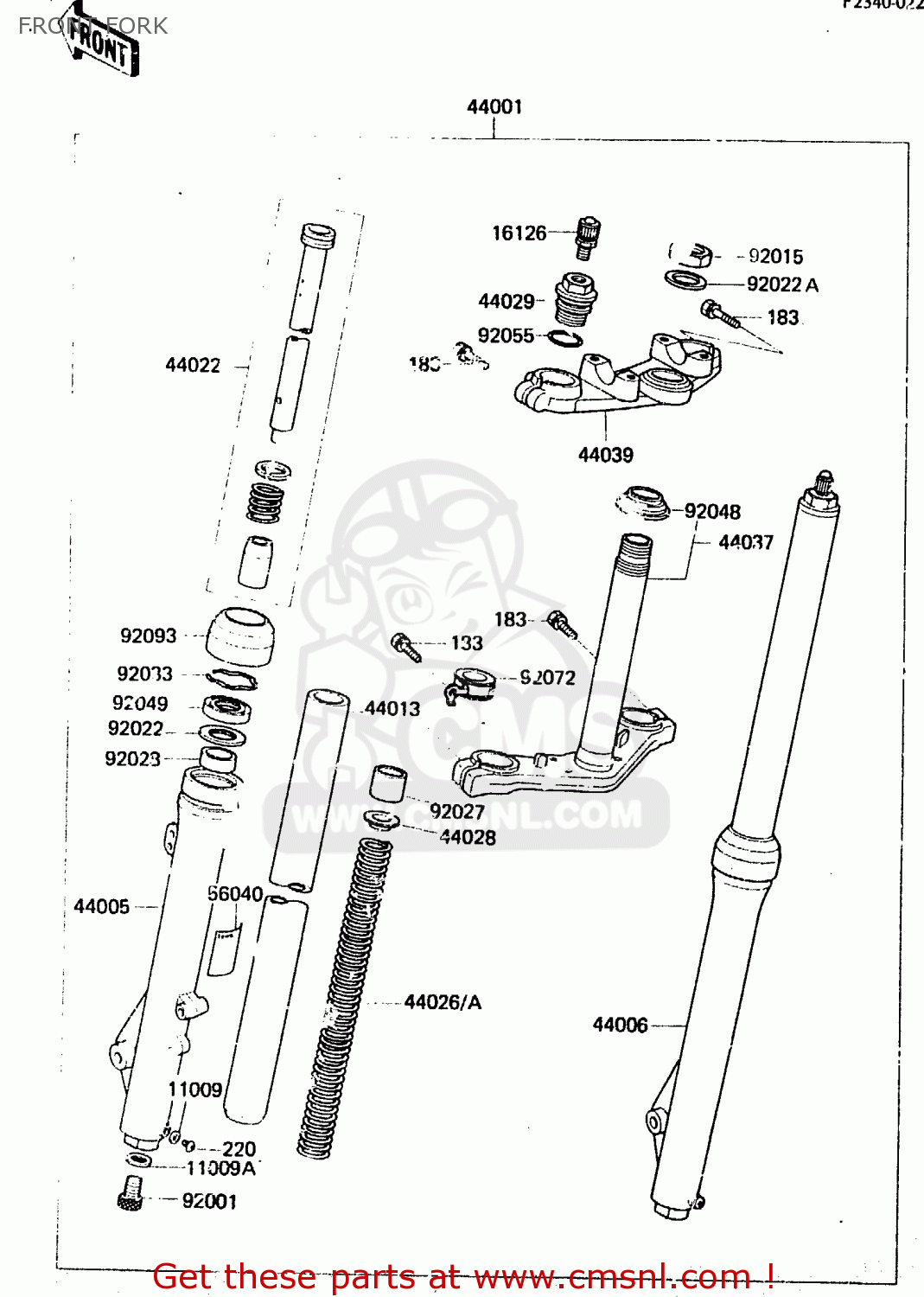

Front fork diagram KX80-E2 1984 USA CANADA UK AL
FRONT FORK KX80-E2 1984 USA CANADA UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
16126
161261048
ref: 16126
VALVE,AIR FRONT FORK
€ 11.50
44001
440011532
ref: 44001
FORK-FRONT
€ 540.50
44005
440051208
ref: 44005
PIPE-LEFT FORK OUTER
€ 156.00
44006
440061208
ref: 44006
PIPE-RIGHT FORK OUTER
€ 129.00
44013
440131211
ref: 44013
PIPE-FORK INNER
€ 110.50
44022
440221160
ref: 44022
CYLINDER-FORK
€ 41.00
44026
440261266
ref: 44026
SPRING-FRONT FORK,K=0
€ 20.00
44026A
440261267
ref: 44026A
(OPTION)
SPRING-FRONT FORK,K=0
€ 22.50
44028
44028033
ref: 44028
GUIDE-FORK SPRING
€ 6.00
44029
440291105
ref: 44029
SEAT-FORK SPRING
€ 28.00
44037
440371162
ref: 44037
HOLDER-FORK UNDER
€ 150.00
44039
440391108
ref: 44039
HOLDER-FORK UPPER
€ 90.00
56040
560401115
ref: 56040
LABEL-WARNING,FRONT F
€ 1.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92015
920151361
ref: 92015
NUT,FORK TOP,22MM
€ 10.00
92022
920221527
ref: 92022
WASHER,FORK
€ 4.00
92022A
920221528
ref: 92022A
WASHER,FORK TOP
€ 4.50
92027
920271759
ref: 92027
COLLAR,L=25
€ 4.00
92028
920281298
ref: 92028
BUSHING,FORK
€ 11.50
92033
920331165
ref: 92033
RING-SNAP,FORK
€ 4.50
92048
92047010
ref: 92048
CONE-STERNG BERG LOW
€ 10.00
92049
920491179
ref: 92049
SEAL-OIL,FORK
€ 18.00
92055
920551135
ref: 92055
RING-0,FORK SPRING SE
€ 4.00
92072
920721027
ref: 92072
BAND,CABLE
€ 12.50
92093
920931165
ref: 92093
SEAL,FORK
€ 12.50
183
183G0835
ref: 183
BOLT-UPSET-WS-SMALL
€ 3.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
