CARBURETOR
KX80-E1 KX80 1983 USA CANADA

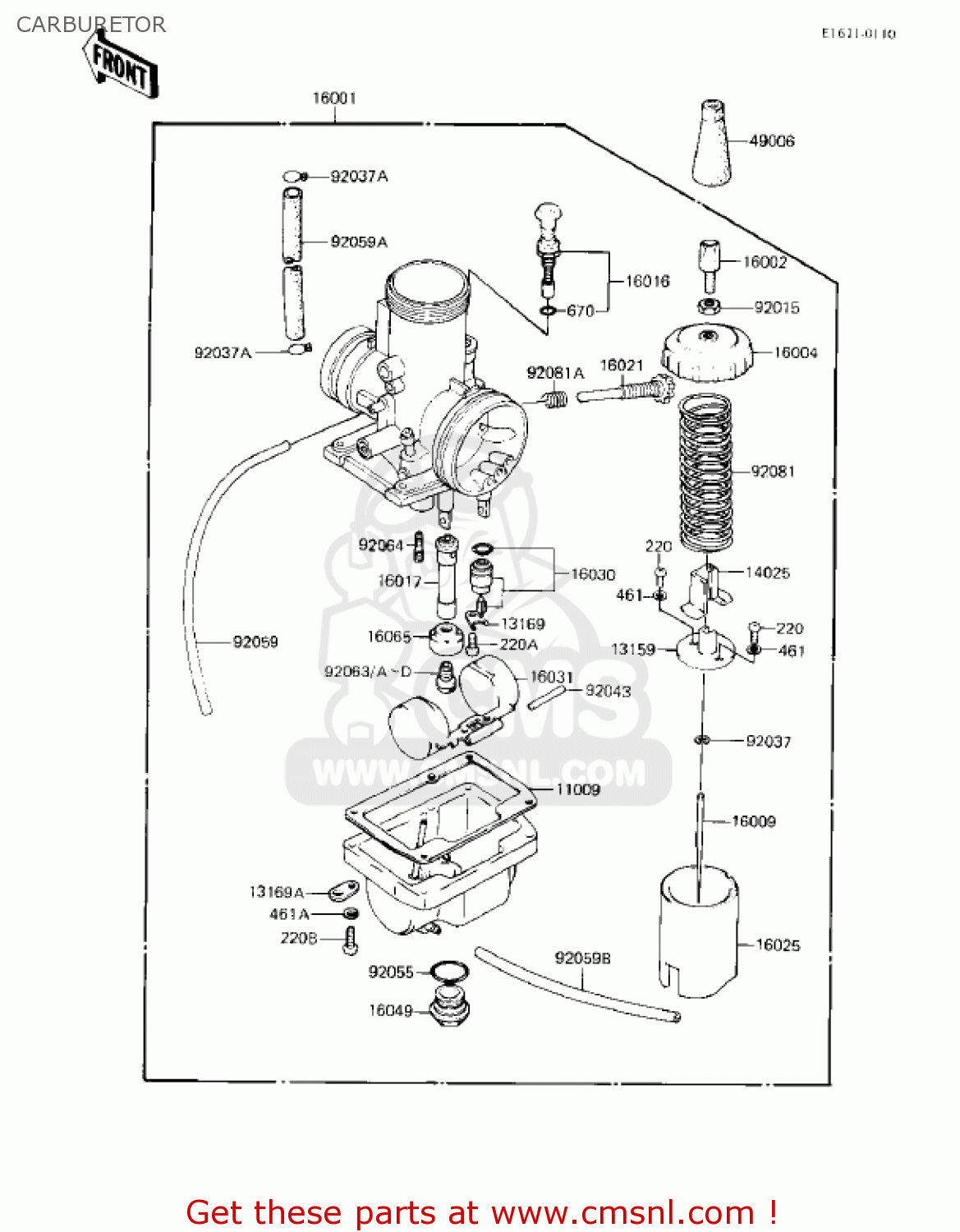

Carburetor diagram KX80-E1 KX80 1983 USA CANADA
CARBURETOR KX80-E1 KX80 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091178
ref: 11009
GASKET,FLOAT CHAMBER
€ 7.00
13159
131591010
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
13169A
131691226
ref: 13169A
PLATE,TUBE CLAMP
€ 5.00
14025
140251494
ref: 14025
COVER,THROTTLE VALVE
€ 6.00
16001
160011713
ref: 16001
CARBURETOR
€ 263.50
16002
16002017
ref: 16002
ADJUSTER-CABLE
€ 8.00
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16009
160091149
ref: 16009
NEEDLE-JET,5EJ36
€ 18.00
16016
160161013
ref: 16016
PLUNGER,STARTER
€ 24.50
16017
160171134
ref: 16017
JET-NEEDLE,P-O
€ 25.00
16021
160211047
ref: 16021
SCREW-THROTTLE STOP
€ 11.50
16025
160251081
ref: 16025
VALVE-THROTTLE,CA.30
€ 55.50
16030
160301013
ref: 16030
VALVE-FLOAT,#2.5
€ 33.00
16031
160311011
ref: 16031
FLOAT
€ 35.00
16049
160491003
ref: 16049
COVER,MAIN JET
€ 8.00
16065
160651033
ref: 16065
HOLDER,MAIN JET RING
€ 10.50
49006
16036007
ref: 49006
BOOT,CABLE ADJUSTER
€ 10.50
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037072
ref: 92037A
CLAMP,TUBE
€ 4.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
920551076
ref: 92055
RING-O
€ 6.00
92059
920591755
ref: 92059
TUBE,3X5X300
€ 6.00
92059A
920591023
ref: 92059A
HOSE,FUEL TAP DIAPHRA
€ 17.00
92059B
920591135
ref: 92059B
TUBE
€ 4.00
92063
92063055
ref: 92063
MAIN JET,#125R
€ 9.50
92063A
92063076
ref: 92063A
MAIN JET,#115R
€ 5.50
92063B
92063077
ref: 92063B
JET-MAIN,#117.5R
€ 10.00
92063C
92063078
ref: 92063C
MAIN JET,#120R
€ 11.50
92063D
920631101
ref: 92063D
JET-MAIN,#A122.5
€ 9.50
92064
92064022
ref: 92064
PILOT JET #30 ISO
€ 11.50
92081
16006023
ref: 92081
SPRING,THROTTLE VALV
€ 10.00
92081A
920811417
ref: 92081A
SPRING
€ 3.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0408
ref: 220A
SCREW-PAN-CROS
€ 0.50
220B
220B0416
ref: 220B
SCREW-PAN-CROS
€ 2.00
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0400
ref: 461A
WASHER-SPRING,4MM
€ 0.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
