REAR HUB

KX65A6F KX65 2006 USA CANADA

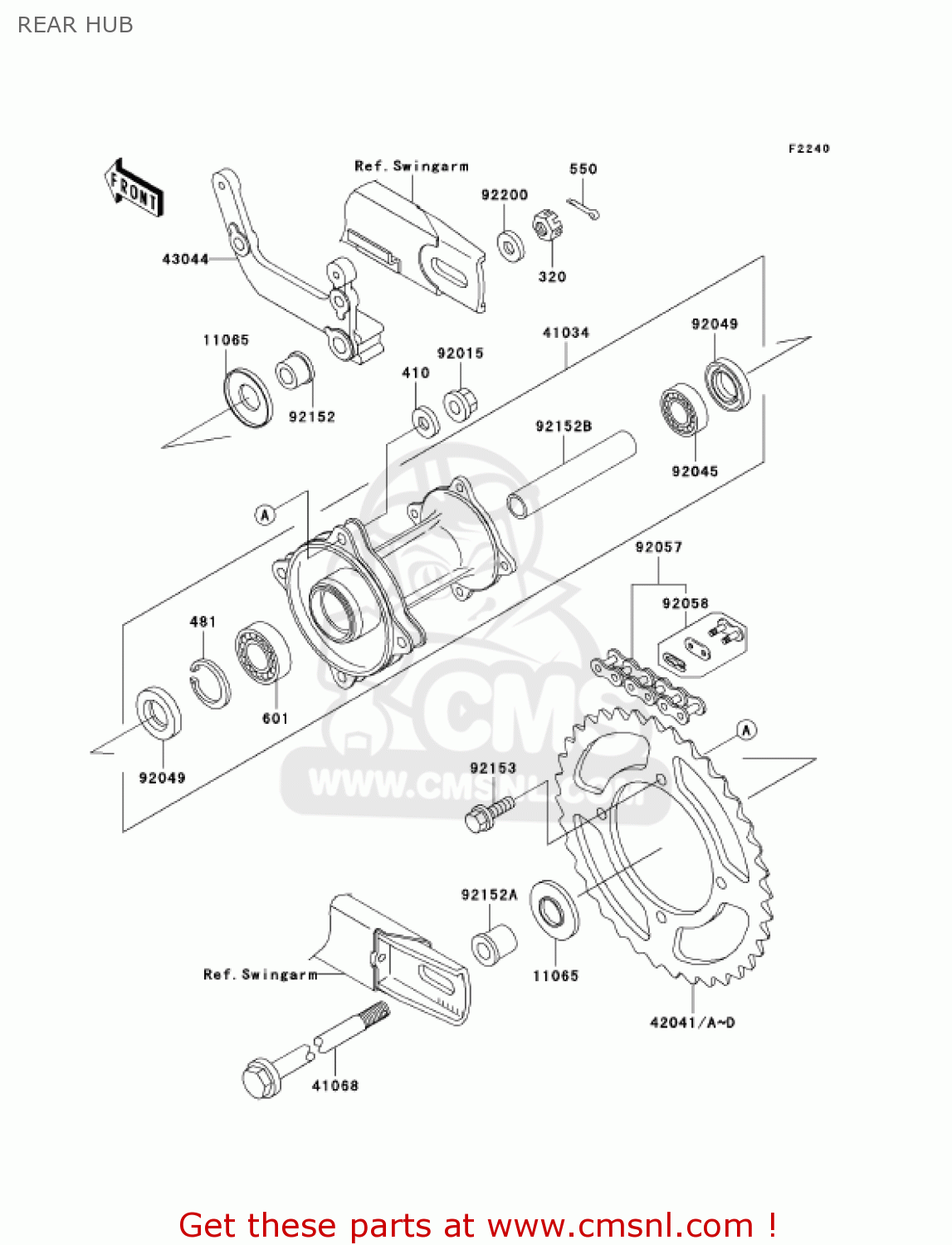

Rear hub diagram KX65A6F KX65 2006 USA CANADA

REAR HUB KX65A6F KX65 2006 USA CANADA
REAR HUB KX65A6F KX65 2006 USA CANADA
REAR HUB KX65A6F KX65 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
320
320G1200
ref: 320
NUT-CASTLE
320G1200
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
481J3700
€ 1.50
550
550D3025
ref: 550
PIN-COTTER,3.0X25
550D3025
€ 0.50
601
601B6301UU
ref: 601
BEARING-BALL,#6301UUC
601B6301UU
€ 24.00
11065
110651137
ref: 11065
CAP
110651137
€ 2.50
41034
410341303
ref: 41034
DRUM-ASSY,REAR BRAKE
410341303
€ 246.50
41068
410681419
ref: 41068
AXLE,RR
410681419
€ 20.50
42041
420411526
ref: 42041
(OPTION)
SPROCKET-HUB,45T
420411526
€ 33.00
42041A
420411527
ref: 42041A
(OPTION)
SPROCKET-HUB,46T
420411527
€ 33.00
42041B
420411528
ref: 42041B
SPROCKET-HUB,47T
€ 33.00
42041C
420411529
ref: 42041C
(OPTION)
SPROCKET-HUB,48T
420411529
€ 33.00
42041D
420411549
ref: 42041D
(OPTION)
SPROCKET-HUB,49T
420411549
€ 33.00
43044
430441127
ref: 43044
HOLDER-COMP-CALIPER,R
€ 94.50
92015
920151432
ref: 92015
NUT,8MM
920151432
€ 4.50
92045
920451062
ref: 92045
BEARING-BALL,TMB201LL
920451062
€ 24.50
92049
920491257
ref: 92049
SEAL-OIL,TC20376.5
920491257
€ 7.00
92057
920571504
ref: 92057
CHAIN,DRIVE,DID420MBK
920571504
€ 25.50
92058
920581073
ref: 92058
JOINT-CHAIN,DRIVE
€ 6.50
92152
921521196
ref: 92152
COLLAR,AXLE,L=15.5
921521196
€ 7.00
92152A
921521198
ref: 92152A
COLLAR,RR AXLE,L=22
921521198
€ 7.50
92152B
921521199
ref: 92152B
COLLAR,RR BRAKE DRUM,
€ 8.00
92153
921531101
ref: 92153
BOLT,FLANGED,8X28
921531101
€ 3.00
92200
922001004
ref: 92200
WASHER,12.3X23X2.3
922001004
€ 3.00
