CARBURETOR
KX65-A2 KX65 2001 USA CANADA

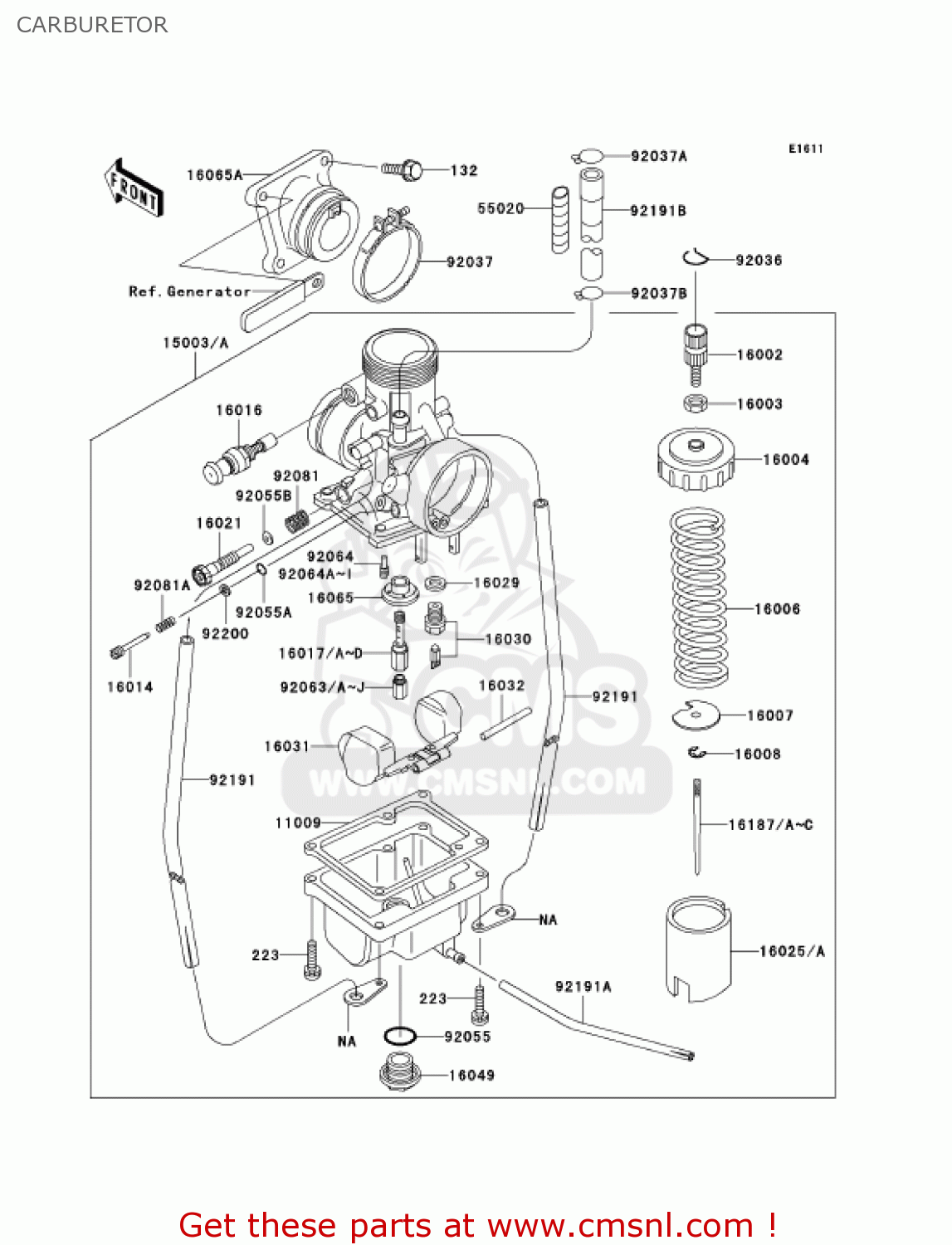

Carburetor diagram KX65-A2 KX65 2001 USA CANADA
CARBURETOR KX65-A2 KX65 2001 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091147
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
15003
150031651
ref: 15003
CARBURETOR-ASSY
€ 164.50
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16003
16003006
ref: 16003
NUT-CABLE ADJUST LOCK
€ 4.50
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16006
16006023
ref: 16006
SPRING,THROTTLE VALV
€ 10.00
16007
16007023
ref: 16007
SPRING SEAT,THRTL VL
€ 7.00
16008
160081010
ref: 16008
CLAMP
€ 2.00
16014
160141116
ref: 16014
SCREW-PILOT AIR
€ 11.50
16016
160161052
ref: 16016
PLUNGER,STARTER
€ 31.50
16017
160171412
ref: 16017
(OPTION)
JET-NEEDLE,N-8
€ 33.00
16017A
160171413
ref: 16017A
JET-NEEDLE,O-0
€ 33.00
16017B
160171414
ref: 16017B
(OPTION)
JET-NEEDLE,O-2
€ 33.00
16017C
160171415
ref: 16017C
(OPTION)
JET-NEEDLE,O-4
€ 33.00
16017D
160171418
ref: 16017D
(OPTION)
JET-NEEDLE,N-6
€ 33.00
16021
160211224
ref: 16021
SCREW-THROTTLE STOP
€ 11.50
16025A
160251224
ref: 16025A
VALVE-THROTTLE,CA2.0
€ 37.00
16029
16029004
ref: 16029
WASHER-FLOAT VLV SEAT
€ 2.50
16030
160301095
ref: 16030
VALVE-FLOAT,#2.5
€ 39.00
16031
160311005
ref: 16031
FLOAT
€ 39.00
16032
16032003
ref: 16032
FLOAT PIN
€ 4.00
16049
160491001
ref: 16049
COVER,MAIN JET
€ 18.00
16065
160651020
ref: 16065
HOLDER,NEEDLE JET
€ 12.50
16065A
160651366
ref: 16065A
HOLDER-CARBURETOR
€ 47.50
16187
161871129
ref: 16187
NEEDLE-JET,5HS59
€ 20.50
16187A
161871130
ref: 16187A
(OPTION)
NEEDLE-JET,5HS64
€ 22.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371305
ref: 92037
CLAMP
€ 8.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92055
920551061
ref: 92055
ORING,MAIN JET COVR
€ 5.50
92055A
920551658
ref: 92055A
RING-O,AIR SCREW
€ 4.50
92055B
920552068
ref: 92055B
RING-O
€ 1.50
92063D
92063023
ref: 92063D
(OPTION)
JET-MAIN,#210
€ 9.50
92063E
92063024
ref: 92063E
(OPTION)
JET-MAIN,#220
€ 11.00
92063F
92063025
ref: 92063F
JET-MAIN,#230
€ 10.50
92063H
92063026
ref: 92063H
(OPTION)
JET-MAIN,#240
€ 12.00
92063I
92063027
ref: 92063I
(OPTION)
JET-MAIN,#250
€ 12.00
92063J
92063029
ref: 92063J
(OPTION)
JET-MAIN,#270
€ 10.00
92064B
92064023
ref: 92064B
(OPTION)
JET-PILOT,#35
€ 13.00
92064C
92064024
ref: 92064C
JET-PILOT,#40
€ 14.00
92064F
92064044
ref: 92064F
(OPTION)
JET-PILOT,#45
€ 13.00
92064H
920641207
ref: 92064H
(OPTION)
JET-PILOT,#37.5
€ 11.00
92064I
920641208
ref: 92064I
(OPTION)
JET-PILOT,#42.5
€ 13.00
92081
920811152
ref: 92081
SPRING,THROTTLE ADJST
€ 4.00
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
223
223B0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
92081A
920811153
ref: 92081A
SPRING,AIR SCREW
€ 3.00
92191
921911495
ref: 92191
TUBE,3X5X280
€ 4.00
92191A
921911496
ref: 92191A
TUBE,3X5X220
€ 3.50
92191B
921911611
ref: 92191B
TUBE
€ 2.00
92200
922001564
ref: 92200
WASHER,PILOT AIR SCRE
€ 2.00
