FRONT HUB
KX60-B8 1992 USA CANADA

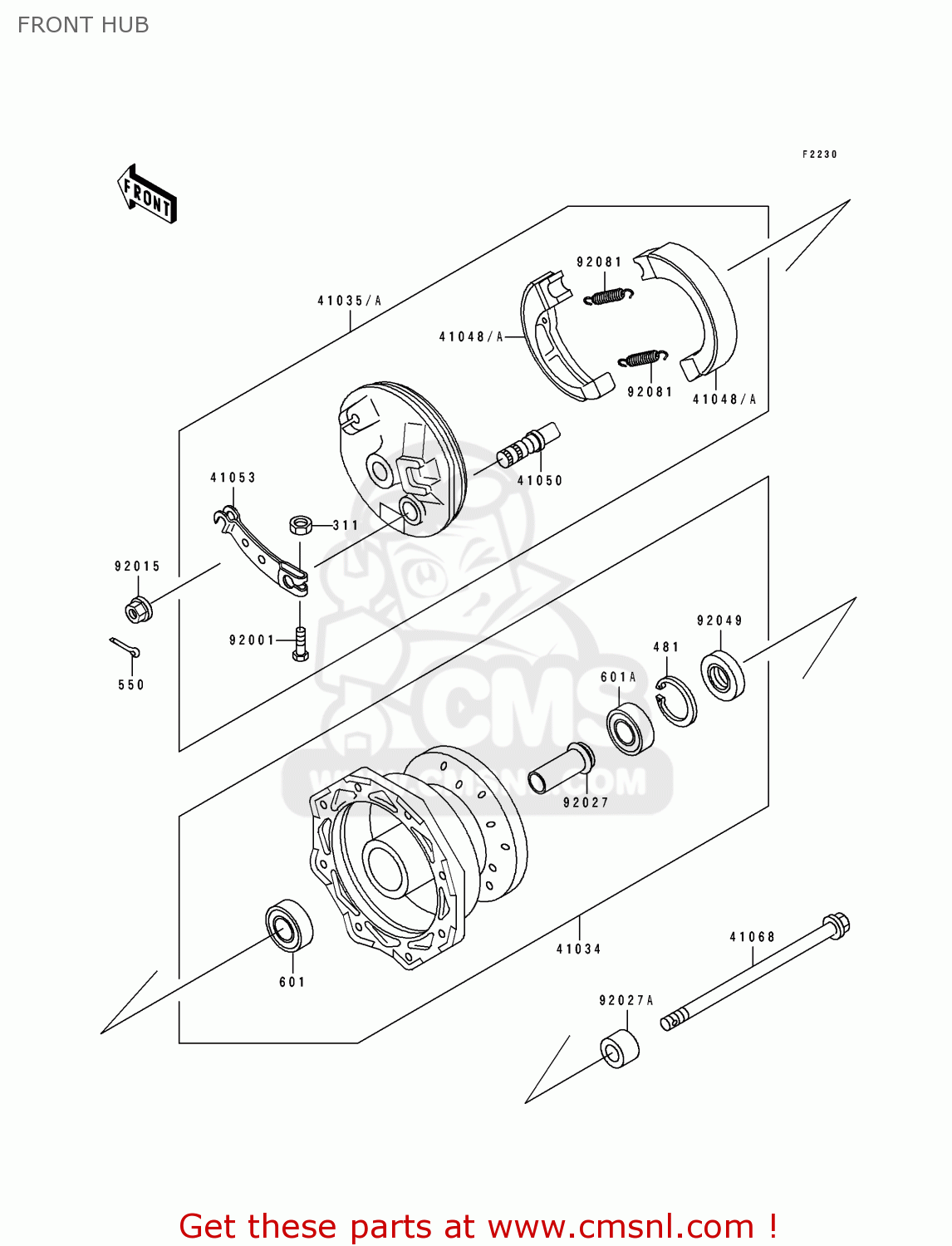

Front hub diagram KX60-B8 1992 USA CANADA
FRONT HUB KX60-B8 1992 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
41034
410341168
ref: 41034
DRUM-ASSY,FRONT BRAKE
€ 256.00
41035A
410351285
ref: 41035A
PANEL-ASSY-BRAKE,FR
€ 172.00
41048A
410481083
ref: 41048A
SHOE-BRAKE (NAS)
€ 13.00
41050
410501031
ref: 41050
CAM-BRAKE
€ 17.50
41053
410531027
ref: 41053
LEVER-BRAKE CAM,FR
€ 40.00
41068
410681305
ref: 41068
AXLE,FR
€ 21.00
92001
920011695
ref: 92001
BOLT,5X25
€ 3.00
92015
920151335
ref: 92015
NUT,FLANGED,10MM
€ 1.50
92027
920271470
ref: 92027
COLLAR,FRONT DRUM,L=5
€ 9.50
92027A
920271472
ref: 92027A
COLLAR,FRONT AXLE,L=1
€ 9.50
92049
920491095
ref: 92049
SEAL-OIL,DD20357
€ 11.00
92081
920811564
ref: 92081
SPRING,BRAKE SHOE
€ 3.50
311
311G0500
ref: 311
NUT-HEX
€ 2.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
550
550D2520
ref: 550
PIN-COTTER,2.5X20
€ 1.00
601
601B6200UU
ref: 601
BEARING-BALL,#6200UUC
€ 18.00
601A
601B6300UU
ref: 601A
BEARING-BALL,#6300UUC
€ 23.50
