KICKSTARTER MECHANISM
KX60-B6 1990 UNITED KINGDOM AL AS

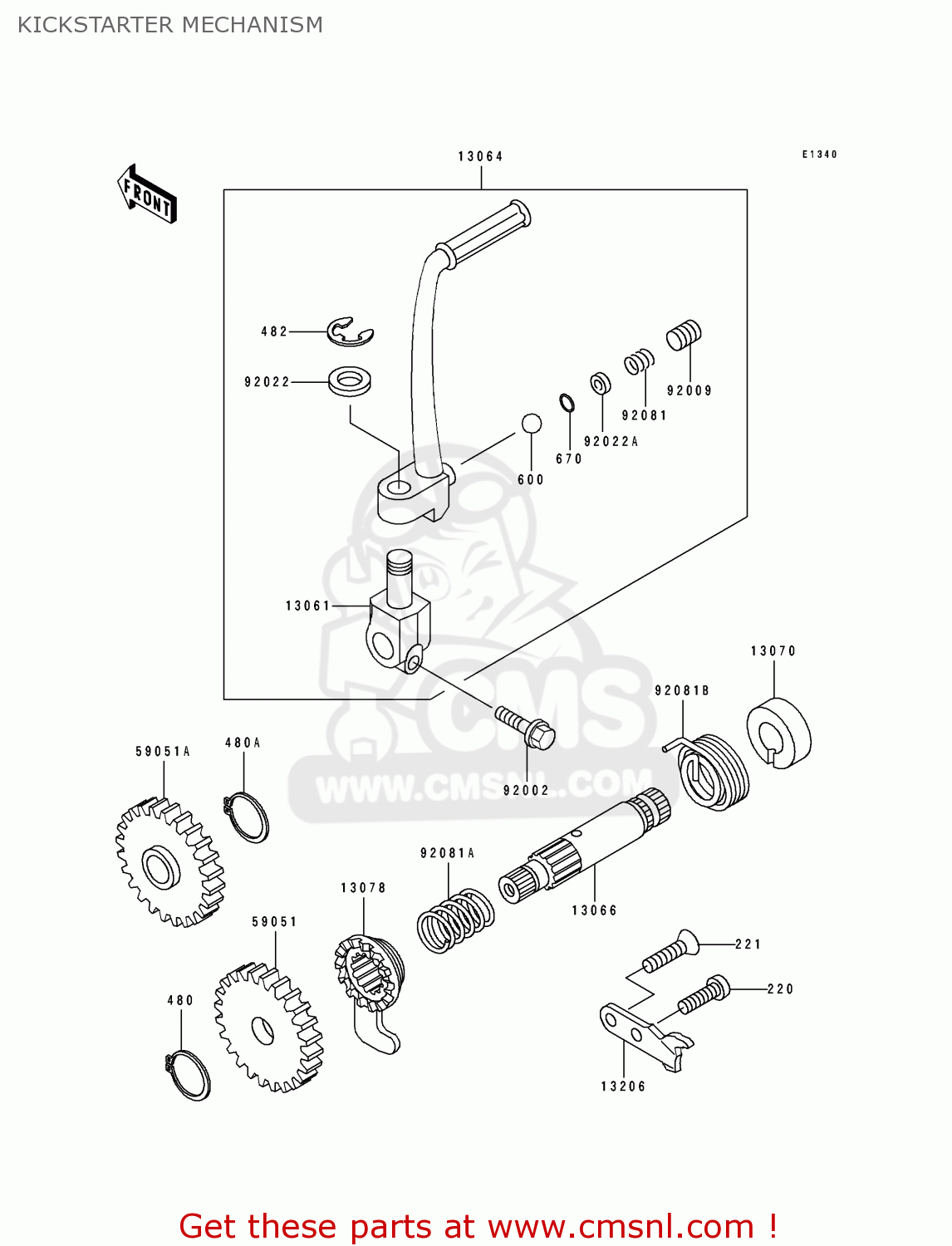

Kickstarter mechanism diagram KX60-B6 1990 UNITED KINGDOM AL AS
KICKSTARTER MECHANISM KX60-B6 1990 UNITED KINGDOM AL AS
×
prices are in EUR
ref
part #
description
quantity
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
221
221B0618
ref: 221
SCREW,6X18
€ 2.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
480A
480J1500
ref: 480A
CIRCLIP-TYPE-C,15MM
€ 1.00
482
482K8000
ref: 482
CIRCLIP-TYPE-E,8MM
€ 2.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
13061
130611301
ref: 13061
BOSS,KICK LEVER
€ 34.50
13064
130641154
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 109.00
13066
130661077
ref: 13066
SHAFT-KICK
€ 69.50
13070
130701034
ref: 13070
GUIDE,KICK SPRING
€ 6.00
13078
130781004
ref: 13078
RACHET
€ 44.00
13206
132061053
ref: 13206
GUIDE-KICK
€ 8.50
59051
590511026
ref: 59051
GEAR,KICK,32T
€ 38.50
59051A
590511027
ref: 59051A
GEAR-SPUR,30T
€ 47.50
92002
920021237
ref: 92002
BOLT,6X20
€ 2.50
92009
920091312
ref: 92009
SCREW
€ 3.00
92022
920221236
ref: 92022
WASHER,12.2X20X1.6
€ 2.50
92022A
920221481
ref: 92022A
PLATE
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
€ 6.00
92081B
920811434
ref: 92081B
SPRING,KICK
€ 11.00
