REAR HUB
KX60-B16 2000 USA CANADA

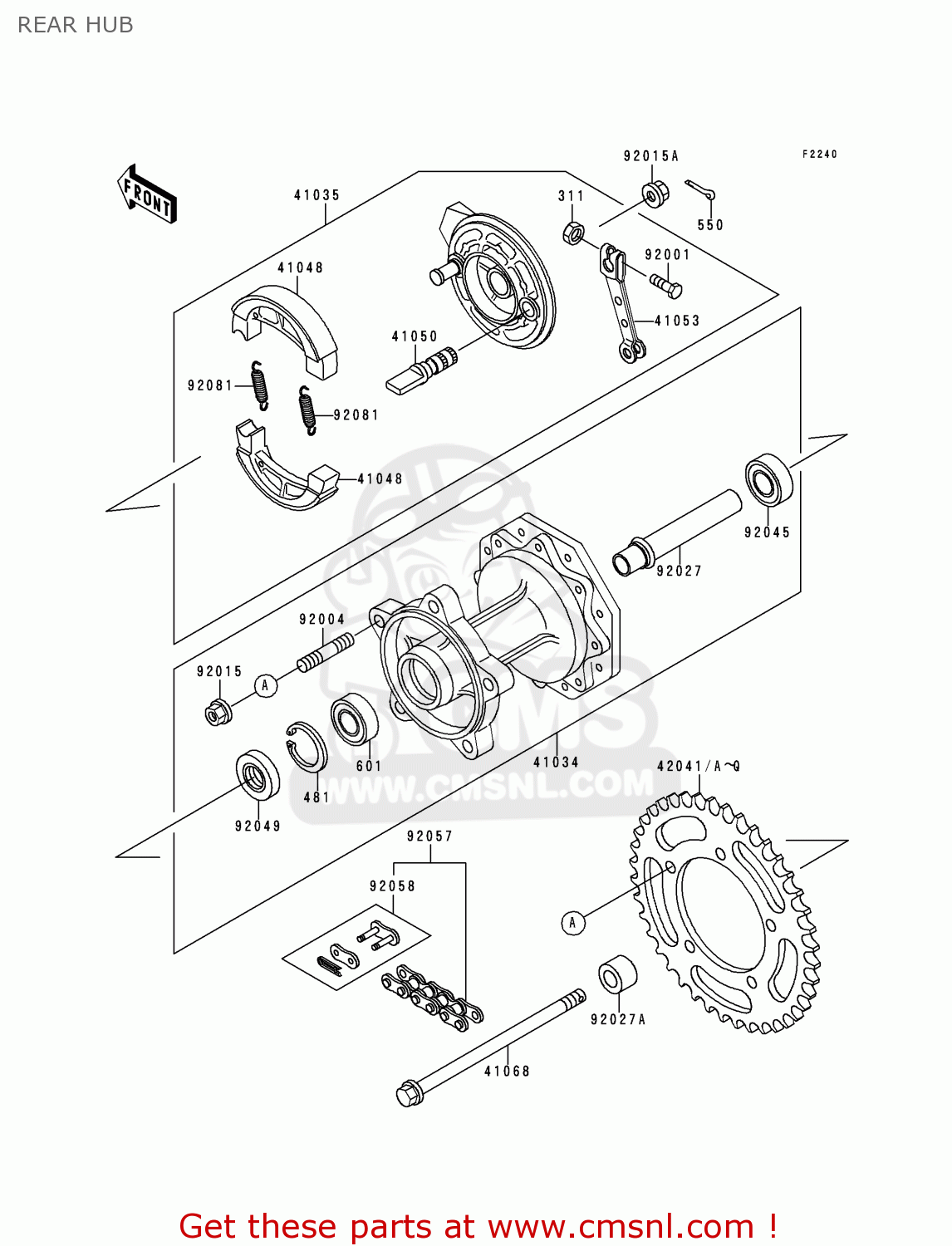

Rear hub diagram KX60-B16 2000 USA CANADA
REAR HUB KX60-B16 2000 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
41034
410341169
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 314.50
41035
410351286
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 165.50
41048
410481083
ref: 41048
SHOE-BRAKE (NAS)
€ 13.00
41050
410501031
ref: 41050
CAM-BRAKE
€ 17.50
41053
410531058
ref: 41053
LEVER-BRAKE CAM,RR
€ 36.00
41068
410681306
ref: 41068
AXLE,RR
€ 26.00
42041
420411114
ref: 42041
SPROCKET-HUB,44T
€ 33.00
42041A
420411116
ref: 42041A
SPROCKET-HUB,43T
€ 31.00
42041B
420411117
ref: 42041B
SPROCKET-HUB,45T
€ 33.00
42041C
420411121
ref: 42041C
SPROCKET-HUB,49T
€ 31.00
42041D
420411122
ref: 42041D
SPROCKET-HUB,48T
€ 38.00
42041E
420411123
ref: 42041E
SPROCKET-HUB,50T
€ 33.00
42041F
420411129
ref: 42041F
SPROCKET HUB 47T KIT
€ 32.50
42041G
420411167
ref: 42041G
SPROCKET-HUB,43T,AL
€ 76.00
42041H
420411168
ref: 42041H
SPROCKET-HUB,44T,AL
€ 55.50
42041I
420411169
ref: 42041I
SPROCKET-HUB,48T,AL
€ 68.50
42041J
420411170
ref: 42041J
SPROCKET-HUB,49T,AL
€ 88.00
42041K
420411171
ref: 42041K
SPROCKET-HUB,50T,AL
€ 75.00
42041L
420411175
ref: 42041L
SPROCKET-HUB,45T,AL
€ 68.50
42041M
420411176
ref: 42041M
SPROCKET-HUB,46T,AL
€ 92.50
42041N
420411177
ref: 42041N
SPROCKET-HUB,47T,AL
€ 92.50
42041O
420411178
ref: 42041O
SPROCKET-HUB,46T
€ 32.50
42041P
420411181
ref: 42041P
SPROCKET-HUB,51T
€ 36.00
42041Q
420411182
ref: 42041Q
SPROCKET-HUB,51T,AL
€ 92.50
92001
920011695
ref: 92001
BOLT,5X25
€ 3.00
311
311G0500
ref: 311
NUT-HEX
€ 2.50
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
€ 1.50
550
550D2520
ref: 550
PIN-COTTER,2.5X20
€ 1.00
601
601B6301UU
ref: 601
BEARING-BALL,#6301UUC
€ 24.00
92004
920041182
ref: 92004
STUD,8X16
€ 3.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151433
ref: 92015A
NUT,12MM
€ 6.00
92027
920271471
ref: 92027
COLLAR,REAR DRUM,L=11
€ 13.00
92027A
920271473
ref: 92027A
COLLAR,REAR AXLE,L=14
€ 13.50
92045
920451062
ref: 92045
BEARING-BALL,TMB201LL
€ 24.50
92049
920491096
ref: 92049
SEAL-OIL,DD20377
€ 11.00
92057
920571436
ref: 92057
CHAIN,DRIVE
€ 15.00
92058
920581073
ref: 92058
JOINT-CHAIN,DRIVE
€ 6.50
92081
920811766
ref: 92081
SPRING,BRAKE SHOE
€ 5.50
