CARBURETOR
KX60-B14 1998 EUROPE AS

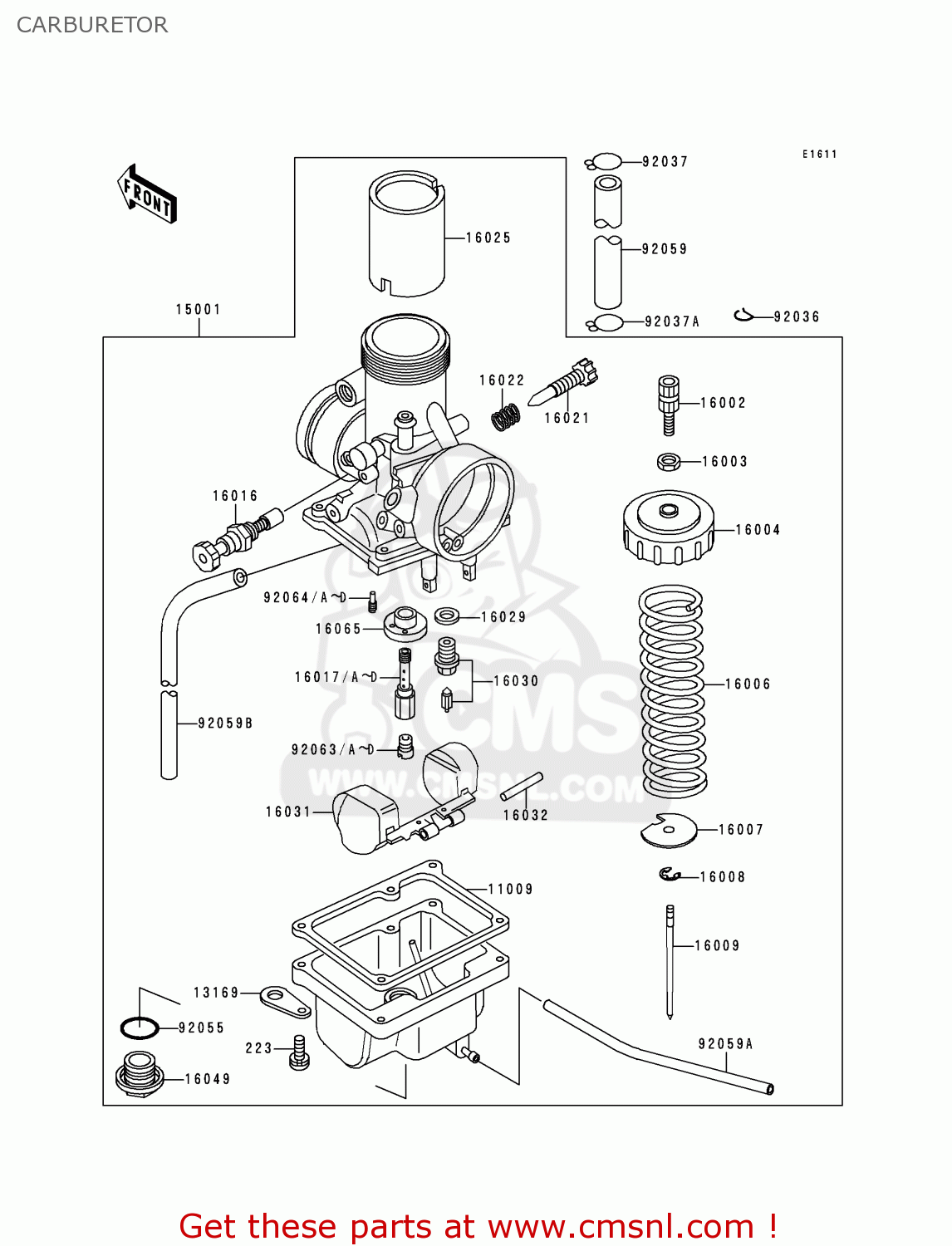

Carburetor diagram KX60-B14 1998 EUROPE AS
CARBURETOR KX60-B14 1998 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
11009
110091147
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
13169
131691226
ref: 13169
PLATE,TUBE CLAMP
€ 5.00
15001
150011384
ref: 15001
CARBURETOR-ASSY
€ 230.00
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16003
16003006
ref: 16003
NUT-CABLE ADJUST LOCK
€ 4.50
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16006
16006023
ref: 16006
SPRING,THROTTLE VALV
€ 10.00
16007
16007023
ref: 16007
SPRING SEAT,THRTL VL
€ 7.00
16008
16008010
ref: 16008
CLAMP,E-TYPE
€ 5.00
16009
160091220
ref: 16009
NEEDLE-JET,5I14
€ 28.00
16016
160161052
ref: 16016
PLUNGER,STARTER
€ 31.50
16017
160171215
ref: 16017
JET-NEEDLE,N-8
€ 35.50
16017A
160171216
ref: 16017A
JET-NEEDLE,O-0
€ 35.50
16017B
160171217
ref: 16017B
JET-NEEDLE,O-2
€ 35.50
16017C
160171259
ref: 16017C
JET-NEEDLE,N-6
€ 34.00
16017D
160171268
ref: 16017D
JET-NEEDLE,N-4
€ 35.50
16021
160211104
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16022
16022005
ref: 16022
SPRING-THR STOP SCREW
€ 5.50
16025
160251107
ref: 16025
VALVE-THROTTLE,CA2.0
€ 77.50
16029
16029004
ref: 16029
WASHER-FLOAT VLV SEAT
€ 2.50
16030
16030005
ref: 16030
VALVE-FLOAT,2.5
€ 43.00
16031
160311005
ref: 16031
FLOAT
€ 39.00
16032
16032003
ref: 16032
FLOAT PIN
€ 4.00
16049
160491001
ref: 16049
COVER,MAIN JET
€ 18.00
16065
160651020
ref: 16065
HOLDER,NEEDLE JET
€ 12.50
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371712
ref: 92037A
CLAMP
€ 3.00
92055
920551061
ref: 92055
ORING,MAIN JET COVR
€ 5.50
92059
920591393
ref: 92059
TUBE,5.3X10.5X130
€ 14.00
92059A
920591395
ref: 92059A
TUBE,3X5X160
€ 6.00
92059B
920591396
ref: 92059B
TUBE,3X5X270
€ 6.00
92063
92063020
ref: 92063
JET-MAIN,#180
€ 9.50
92063A
92063021
ref: 92063A
JET-MAIN,#190
€ 9.50
92063B
92063022
ref: 92063B
JET-MAIN,#200
€ 9.50
223
223B0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
92063C
92063023
ref: 92063C
JET-MAIN,#210
€ 9.50
92063D
92063024
ref: 92063D
JET-MAIN,#220
€ 11.00
92064
920641023
ref: 92064
JET-PILOT,#35
€ 12.50
92064A
920641030
ref: 92064A
JET-PILOT,#30
€ 12.00
92064B
920641038
ref: 92064B
JET-PILOT,#25
€ 12.00
92064C
920641104
ref: 92064C
JET-PILOT,#40
€ 13.50
92064D
920641110
ref: 92064D
JET-PILOT,#20
€ 12.00
