FRONT FORK
KX60-A2 1984 A1/A2

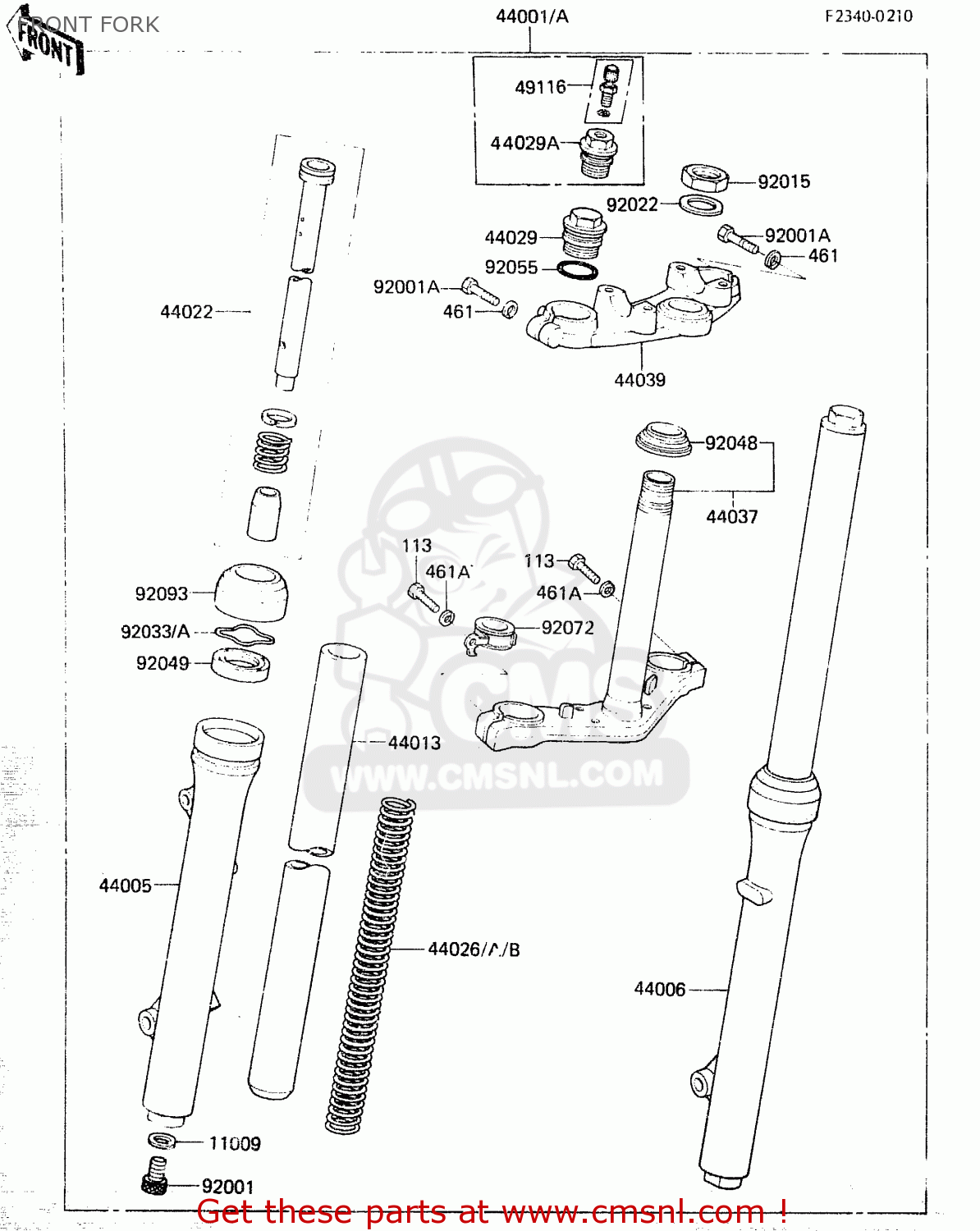

Front fork diagram KX60-A2 1984 A1/A2
FRONT FORK KX60-A2 1984 A1/A2
×
prices are in EUR
ref
part #
description
quantity
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
44001A
440011507
ref: 44001A
FORK-FRONT
€ 419.50
44005
440051101
ref: 44005
PIPE-LEFT FORK OUTER
€ 189.00
44006
440061101
ref: 44006
PIPE-RIGHT FORK OUTER
€ 198.50
44013
440131098
ref: 44013
PIPE-FORK INNER
€ 103.50
44022
440221085
ref: 44022
CYLINDER-FORK
€ 63.00
44026
440261156
ref: 44026
SPRING-FRONT FORK,STD
€ 35.00
44026A
440261174
ref: 44026A
(OPTION)
SPRING-FRONT FORK,LIG
€ 35.00
44026B
440261175
ref: 44026B
(OPTION)
SPRING-FRONT FORK,HEA
€ 35.00
44029A
440291101
ref: 44029A
SEAT-FORK SPRING
€ 16.00
44037
440371095
ref: 44037
HOLDER-FORK UNDER
€ 113.50
44039
440391065
ref: 44039
HOLDER-FORK UPPER
€ 102.50
49116
491161054
ref: 49116
VALVE-ASSY,AIR
€ 19.50
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92001A
920011643
ref: 92001A
BOLT,8X35
€ 3.00
92015
920151224
ref: 92015
NUT,FORK TOP
€ 11.50
92022
920221385
ref: 92022
WASHER,FORK TOP
€ 5.00
92033A
920331062
ref: 92033A
RING-SNAP
€ 3.50
92048
92047013
ref: 92048
CONE,STRG STM
€ 12.50
92049
920491069
ref: 92049
OIL SEAL
€ 13.00
92055
920551142
ref: 92055
RING-O,FORK SPRING SE
€ 3.00
92072
920721089
ref: 92072
BAND,CABLE
€ 23.50
92093
920931054
ref: 92093
DUST SHIELD
€ 11.50
113
113B1035
ref: 113
BOLT-HEX HEAD,10X35
€ 3.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
461A
461F1000
ref: 461A
WASHER-SPRING,10MM
€ 0.50
