MUFFLER(S)
KX500-E9 1997 USA CANADA

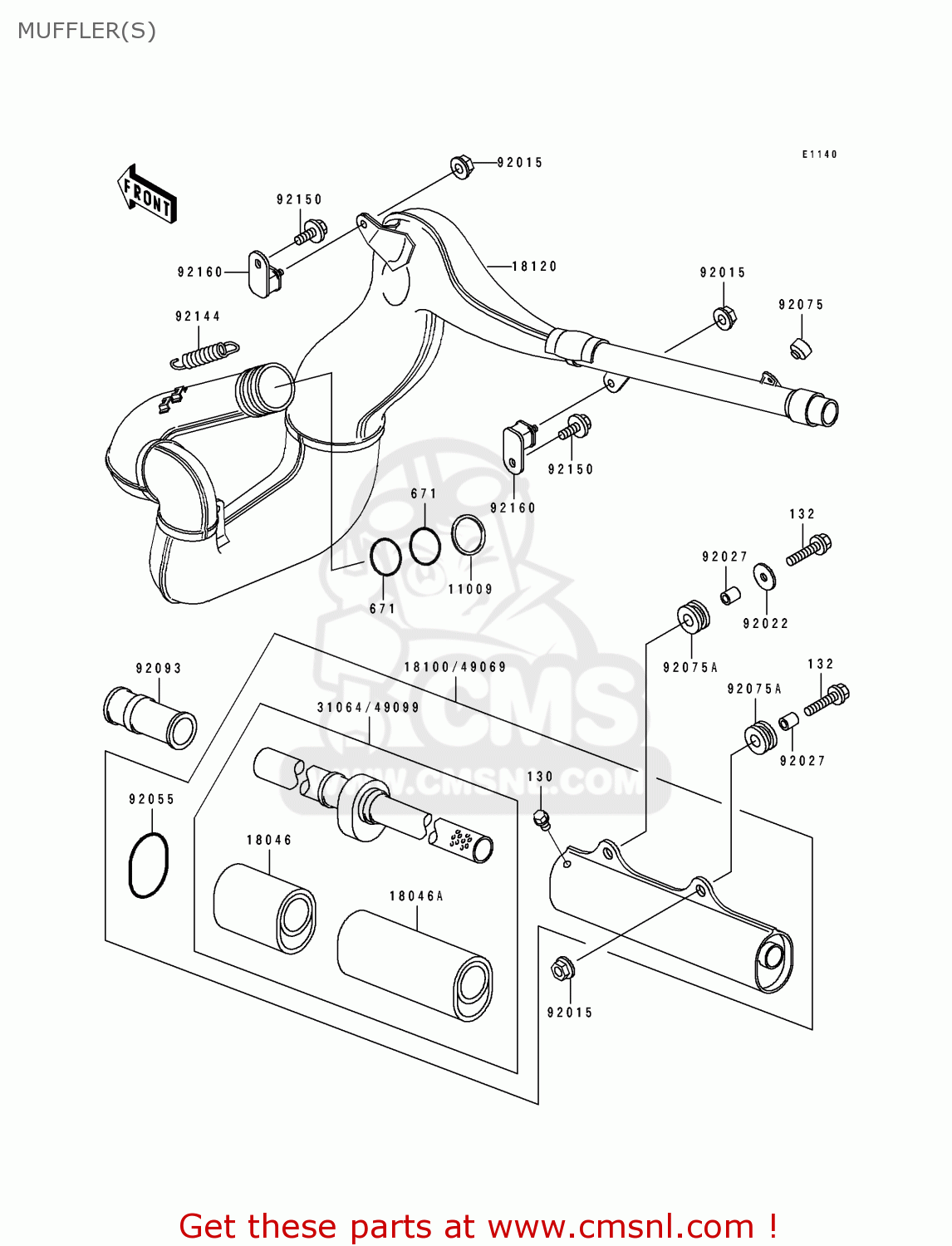

Muffler(s) diagram KX500-E9 1997 USA CANADA
MUFFLER(S) KX500-E9 1997 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
132
132G0630
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
671
671E2550
ref: 671
O RING,50MM
€ 10.50
11009
110091949
ref: 11009
GASKET,EXHAUST PIPE (NAS)
€ 7.50
18046
180461113
ref: 18046
WOOL,L=158
€ 69.00
18046A
180461114
ref: 18046A
WOOL,L=200
€ 69.00
18100
181001064
ref: 18100
CN
BODY-ASSY-MUFFLER
€ 201.00
18120
181201077
ref: 18120
CHAMBER-EXHAUST
€ 361.50
31064
310641170
ref: 31064
CN
PIPE-COMP,MUFFLER
€ 152.50
49069
490691120
ref: 49069
US
MUFFLER-ASSY
€ 201.00
49099
490991285
ref: 49099
US
BAFFLE-PIPE MUFFLER
€ 152.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022237
ref: 92022
WASHER-PLAIN
€ 2.50
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
€ 7.00
92055
920551445
ref: 92055
RING-O,BAFFLE PIPE
€ 6.50
92075
920751598
ref: 92075
DAMPER,SIDE COVER
€ 5.50
92075A
920751857
ref: 92075A
DAMPER,MUFFLER FITTIN
€ 3.50
92093
920931279
ref: 92093
SEAL
€ 32.50
92144
921441035
ref: 92144
SPRING
€ 7.00
92150
921501435
ref: 92150
BOLT
€ 2.50
92160
921601176
ref: 92160
DAMPER,MUFFLER,FR
€ 19.00
