TRANSMISSION

KX500-E8 1996 USA CANADA

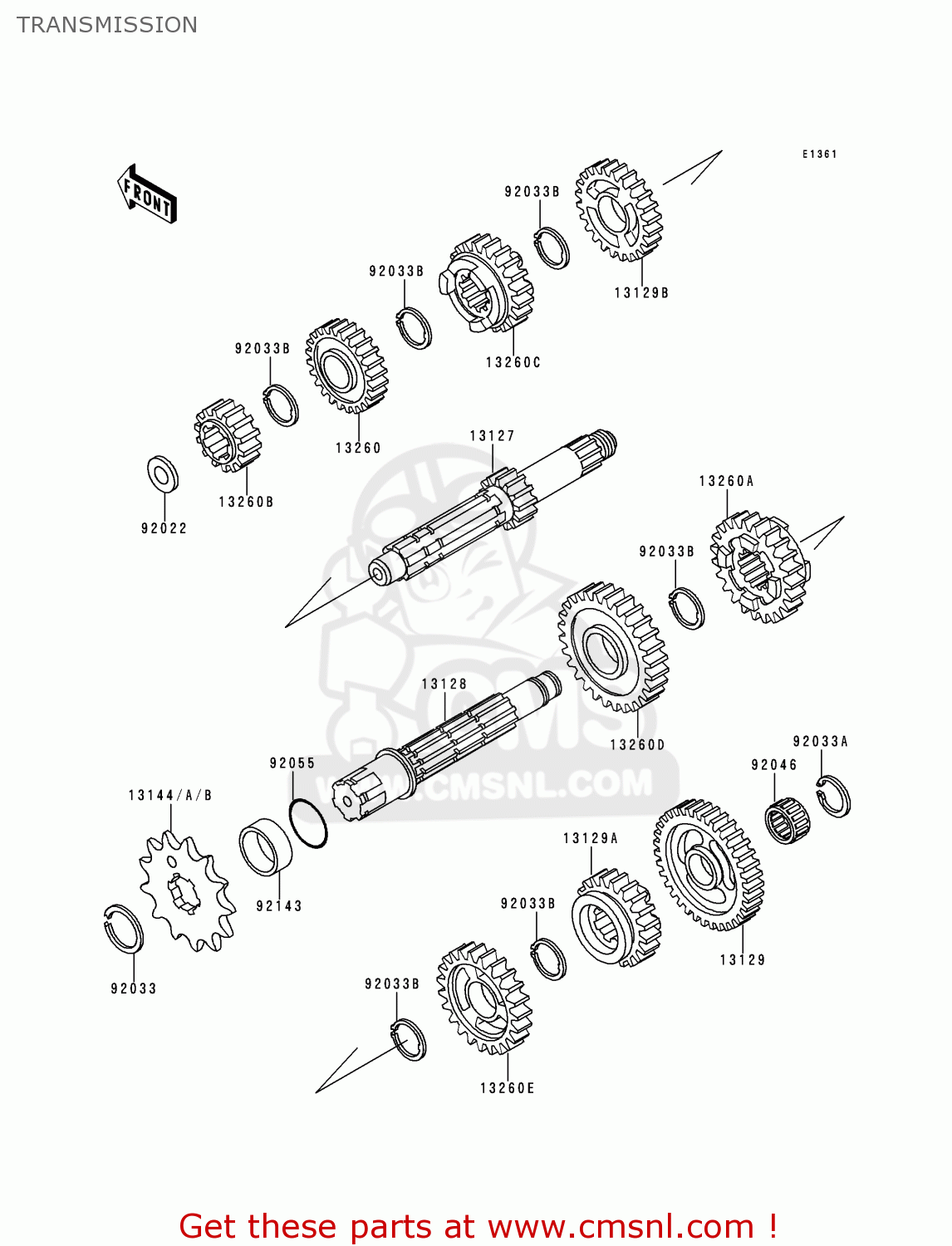

Transmission diagram KX500-E8 1996 USA CANADA

TRANSMISSION KX500-E8 1996 USA CANADA
TRANSMISSION KX500-E8 1996 USA CANADA
TRANSMISSION KX500-E8 1996 USA CANADA
prices are in EUR
ref
part #
description
quantity
13127
131271159
ref: 13127
SHAFT-TRANSMISSION IN
131271159
€ 175.50
13128
131281150
ref: 13128
SHAFT-TRANSMISSION OU
131281150
€ 219.00
13129
131291180
ref: 13129
GEAR,OUTPUT LOW,32T
131291180
€ 93.50
13129A
131291575
ref: 13129A
GEAR,OUTPUT TOP,19T
131291575
€ 99.50
13129B
131291744
ref: 13129B
GEAR,INPUT TOP,24T
131291744
€ 102.50
13144
13144069
ref: 13144
SPROCKET-OUTPUT,15T
13144069
€ 34.00
13144A
131441005
ref: 13144A
SPROCKET-OUTPUT,14T
131441005
€ 30.00
13144B
131441027
ref: 13144B
ENGINE SPROCKET,13T
131441027
€ 28.50
13260
132601020
ref: 13260
GEAR,INPUT 4TH,22T
132601020
€ 102.50
13260A
132601021
ref: 13260A
GEAR,OUTPUT 4TH,21T
132601021
€ 90.50
13260B
132601100
ref: 13260B
GEAR,INPUT 2ND,18T
132601100
€ 62.50
13260C
132601101
ref: 13260C
GEAR,INPUT 3RD,22T
132601101
€ 90.50
13260D
132601102
ref: 13260D
GEAR,OUTPUT 2ND,26T
132601102
€ 102.50
13260E
132601103
ref: 13260E
GEAR,OUTPUT 3RD,26T
132601103
€ 132.50
92022
92022255
ref: 92022
WASHER
92022255
€ 5.50
92033
92033026
ref: 92033
CIRCLIP
92033026
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
92033029
€ 6.50
92033B
920331089
ref: 92033B
RING-SNAP,25MM
920331089
€ 3.50
92046
920461170
ref: 92046
BEARING-NEEDLE,KT2026
920461170
€ 9.00
92055
92055035
ref: 92055
O RING
92055035
€ 3.00
92143
921431370
ref: 92143
COLLAR,25X32X10.5
921431370
€ 9.50
