Genuine KX Kawasaki Parts delivered quickly!


CRANKCASE

KX500-E7 1995 EUROPE AS

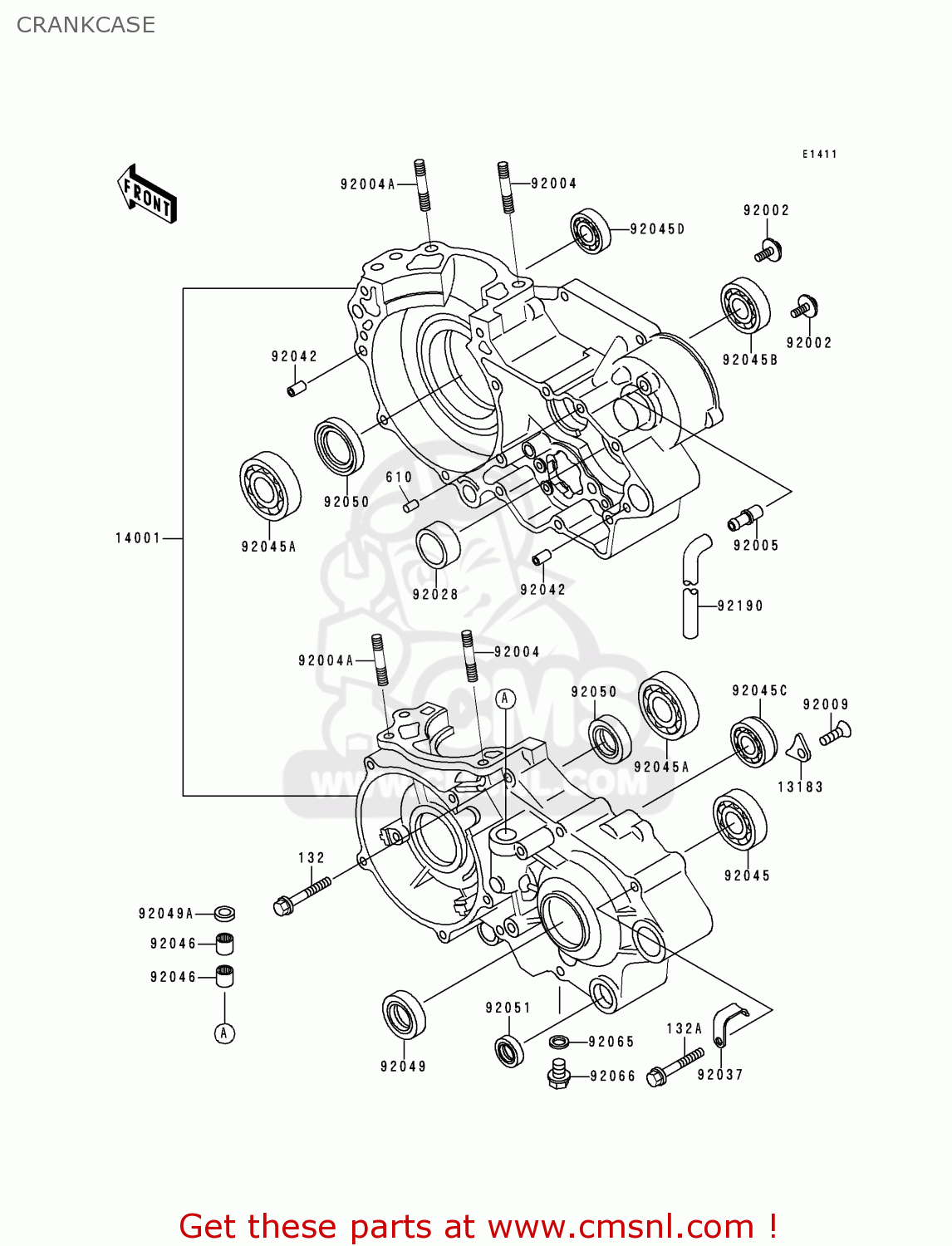

Crankcase diagram KX500-E7 1995 EUROPE AS

CRANKCASE KX500-E7 1995 EUROPE AS
CRANKCASE KX500-E7 1995 EUROPE AS
CRANKCASE KX500-E7 1995 EUROPE AS
prices are in EUR
ref
part #
description
quantity
132
132G0650
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132G0660
ref: 132A
BOLT-FLANGED-SMALL
132G0660
€ 2.50
610
610A0408
ref: 610
ROLLER,4X8
610A0408
€ 2.50
13183
131831182
ref: 13183
PLATE
131831182
€ 3.00
14001
140015258
ref: 14001
SET-CRANKCASE
€ 713.00
92002
920021659
ref: 92002
BOLT
920021659
€ 3.00
92004
920041176
ref: 92004
STUD,10X55
920041176
€ 8.00
92004A
920041223
ref: 92004A
STUD,10X47
920041223
€ 8.50
92005
920051127
ref: 92005
FITTING,BREATHER
920051127
€ 13.00
92009
920091563
ref: 92009
SCREW,6X10
920091563
€ 2.50
92028
92028131
ref: 92028
BUSHING
92028131
€ 28.00
92037
920371318
ref: 92037
CLAMP,HARNESS
920371318
€ 4.50
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92045
920451011
ref: 92045
BEARING-BALL,#6305
920451011
€ 33.50
92045A
920451027
ref: 92045A
BEARING-BALL,6306SH2,
920451027
€ 60.50
92045B
920451134
ref: 92045B
BEARING-BALL,63/22T2C
920451134
€ 36.00
92045C
920451233
ref: 92045C
BEARING-BALL
920451233
€ 32.00
92045D
920451305
ref: 92045D
BEARING-BALL,608MC3
920451305
€ 11.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92049
920491159
ref: 92049
SEAL-OIL,TC32457
920491159
€ 8.00
92049A
920491262
ref: 92049A
SEAL-OIL
920491262
€ 4.00
92050
92050057
ref: 92050
OIL SEAL,L.H CRNKCASE
92050057
€ 14.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661437
ref: 92066
PLUG,DRAIN
920661437
€ 4.00
92190
921901116
ref: 92190
TUBE,6X9X330
€ 8.00
