SEAT

KX500-E6 1994 EUROPE AS

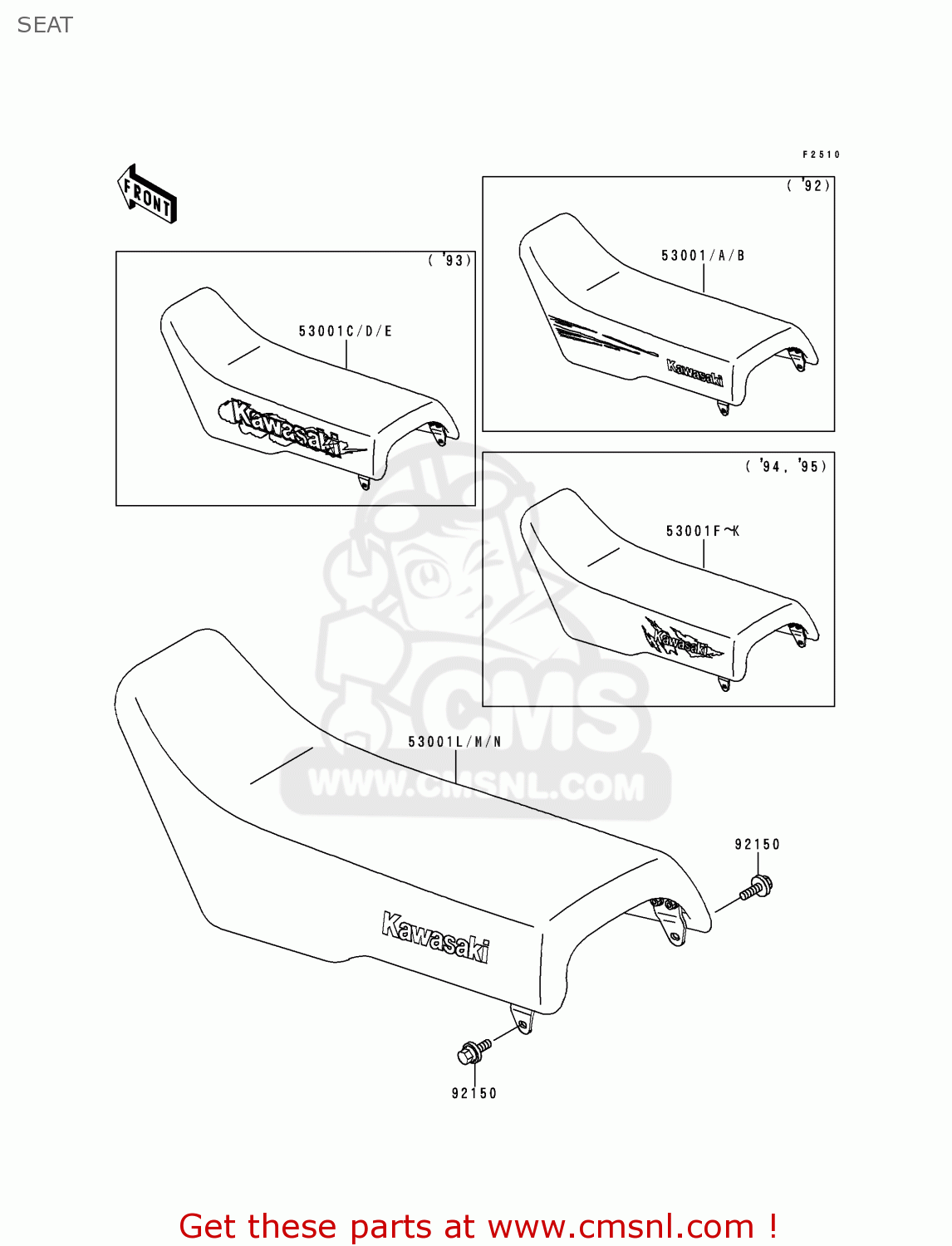

Seat diagram KX500-E6 1994 EUROPE AS

SEAT KX500-E6 1994 EUROPE AS

SEAT KX500-E6 1994 EUROPE AS

prices are in EUR

ref

part #

description

quantity

53001F

530011733PJ
ref: 53001F

SEAT-ASSY,MIDDLE HEIG

€ 238.50

53001G

530011734PJ
ref: 53001G

SEAT-ASSY,HIGH HEIGHT

€ 238.50

53001H

530011735PJ
ref: 53001H

SEAT-ASSY,LOW HEIGHT,

€ 238.50

92150

921501339
ref: 92150

BOLT,6X20

€ 2.50
