CRANKSHAFT/PISTON(S)
KX500-E5 1993 EUROPE AS

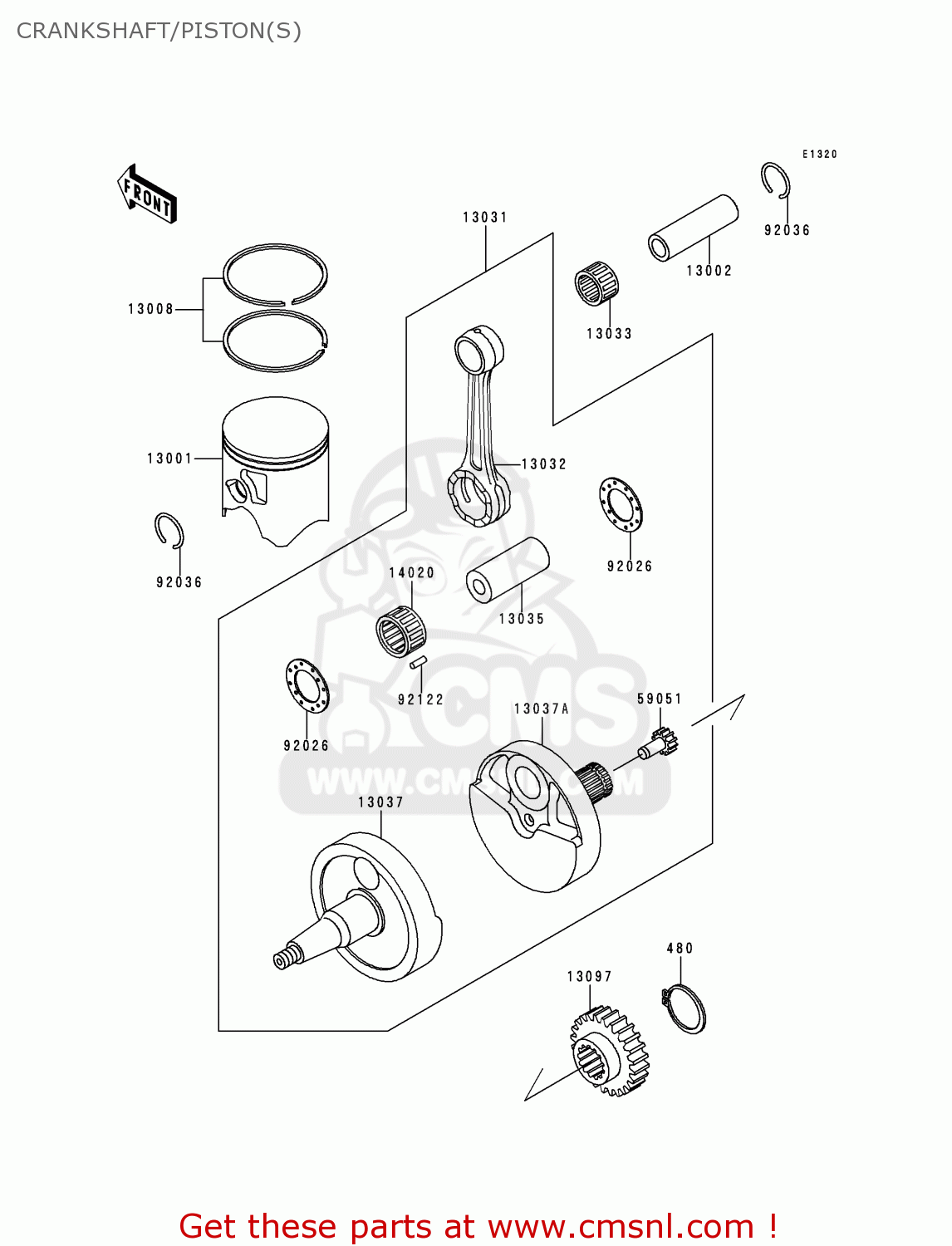

Crankshaft/piston(s) diagram KX500-E5 1993 EUROPE AS
CRANKSHAFT/PISTON(S) KX500-E5 1993 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
480
480J2400
ref: 480
CIRCLIP-TYPE-C,24MM
€ 3.50
13001
130011327
ref: 13001
PISTON-ENGINE,(B)
€ 146.50
13002
130021067
ref: 13002
PIN-PISTON
€ 21.50
13008
130081103
ref: 13008
RING-SET-PISTON
€ 65.50
13031
130311340
ref: 13031
CRANKSHAFT-COMP
€ 818.00
13032
130321184
ref: 13032
ROD-CONNECTING
€ 78.50
13033
130331055
ref: 13033
BEARING-SMALL END,KTV
€ 26.00
13035
130351008
ref: 13035
PIN-CRANK
€ 50.50
13037
130371358
ref: 13037
CRANKSHAFT,LH
€ 382.00
13037A
130371359
ref: 13037A
CRANKSHAFT,RH
€ 382.00
13097
130971205
ref: 13097
GEAR-PRIMARY SPUR,26T
€ 78.00
14020
140201071
ref: 14020
RETAINER
€ 45.00
59051
590511128
ref: 59051
GEAR-SPUR,WATER PUMP,
€ 27.50
92026
920261346
ref: 92026
SPACER,26X44X1.0
€ 17.50
92036
92036008
ref: 92036
CIRCLIP-PISTON PIN
€ 0.50
92122
921221113
ref: 92122
ROLLER
€ 2.50
