CARBURETOR
KX500-E2 1990 USA CANADA

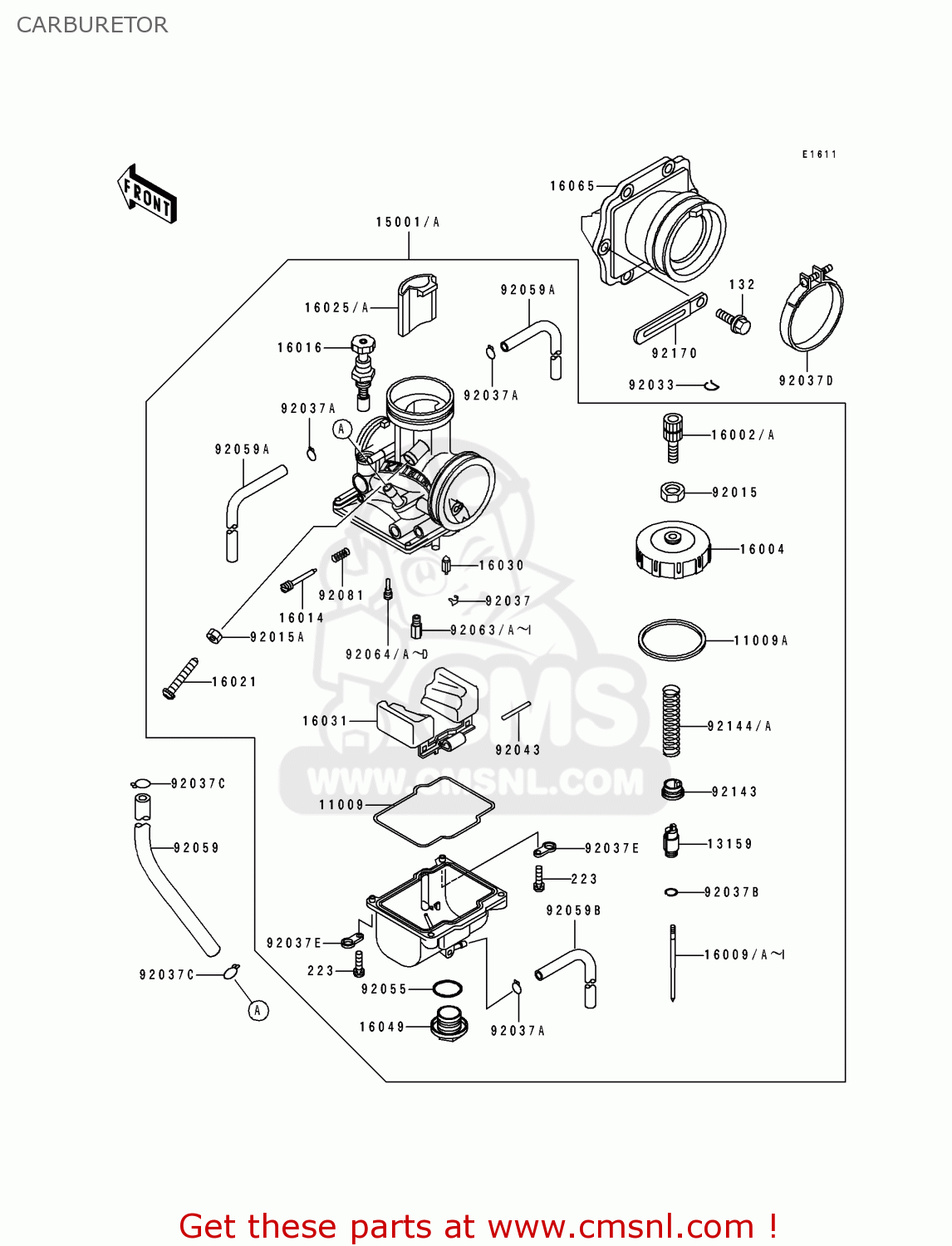

Carburetor diagram KX500-E2 1990 USA CANADA
CARBURETOR KX500-E2 1990 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091716
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
11009A
110091717
ref: 11009A
GASKET,CHAMBER CAP (NAS)
€ 8.00
13159
131591063
ref: 13159
CONNECTOR,THROTTLE CA
€ 13.50
15001A
150011563
ref: 15001A
CARBURETOR-ASSY
€ 432.50
16002A
160021061
ref: 16002A
ADJUSTER-CABLE
€ 15.50
16004
160041061
ref: 16004
CAP-CHAMBER,MIXING
€ 39.00
16009E
160091578
ref: 16009E
NEEDLE-JET,N82K
€ 26.50
16009F
160091579
ref: 16009F
NEEDLE-JET,N82L
€ 23.00
16009G
160091580
ref: 16009G
NEEDLE-JET,N82M
€ 26.50
16009H
160091581
ref: 16009H
NEEDLE-JET,N82N
€ 23.00
16009I
160091582
ref: 16009I
NEEDLE-JET,N82P
€ 25.00
16014
160141058
ref: 16014
SCREW-PILOT AIR
€ 14.00
16016
160161075
ref: 16016
PLUNGER,STARTER
€ 29.00
16021
160211124
ref: 16021
SCREW-THROTTLE STOP
€ 16.00
16025A
160251163
ref: 16025A
VALVE-THROTTLE,CA7
€ 140.00
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311067
ref: 16031
FLOAT
€ 43.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160651180
ref: 16065
HOLDER-CARBURETOR
€ 68.00
92015
920151574
ref: 92015
NUT,CABLE ADJUST LOCK
€ 4.50
92015A
920151707
ref: 92015A
NUT,THROTTLE STOP SCR
€ 2.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92037A
920371396
ref: 92037A
CLAMP,TUBE
€ 3.50
92037B
920371401
ref: 92037B
CLAMP,JET NEEDLE
€ 2.50
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
€ 4.50
92037D
920371486
ref: 92037D
CLAMP,55MM
€ 5.50
92037E
920371969
ref: 92037E
CLAMP,HOSE
€ 5.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551167
ref: 92055
RING-O,MAIN JET COVER
€ 6.50
92059
920591888
ref: 92059
TUBE
€ 4.50
92059A
920591898
ref: 92059A
TUBE,4X7X480
€ 10.00
92059B
920591899
ref: 92059B
TUBE,3.5X6.5X390
€ 7.50
92063
920631369
ref: 92063
JET-MAIN,#162
€ 9.50
92063A
920631370
ref: 92063A
JET-MAIN,#165
€ 9.50
92063B
920631371
ref: 92063B
JET-MAIN,#168
€ 10.00
92063E
920631372
ref: 92063E
JET-MAIN,#170
€ 9.50
92063F
920631373
ref: 92063F
JET-MAIN,#172
€ 10.50
92063H
920631379
ref: 92063H
JET-MAIN,#188
€ 9.50
92064
920641145
ref: 92064
JET-PILOT,#55
€ 11.50
92064A
920641146
ref: 92064A
JET-PILOT,#58
€ 12.00
92064B
920641147
ref: 92064B
JET-PILOT,#60
€ 12.50
92064C
920641148
ref: 92064C
JET-PILOT,#62
€ 11.50
92064D
920641149
ref: 92064D
JET-PILOT,#65
€ 9.50
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92143
921431201
ref: 92143
COLLAR,THROTTLE VALVE
€ 15.00
92144A
921441494
ref: 92144A
SPRING,THROTTLE VALVE
€ 13.00
92170
921701113
ref: 92170
CLAMP
€ 2.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
