FUEL TANK
KX500-E16 KX500 2004 USA CANADA

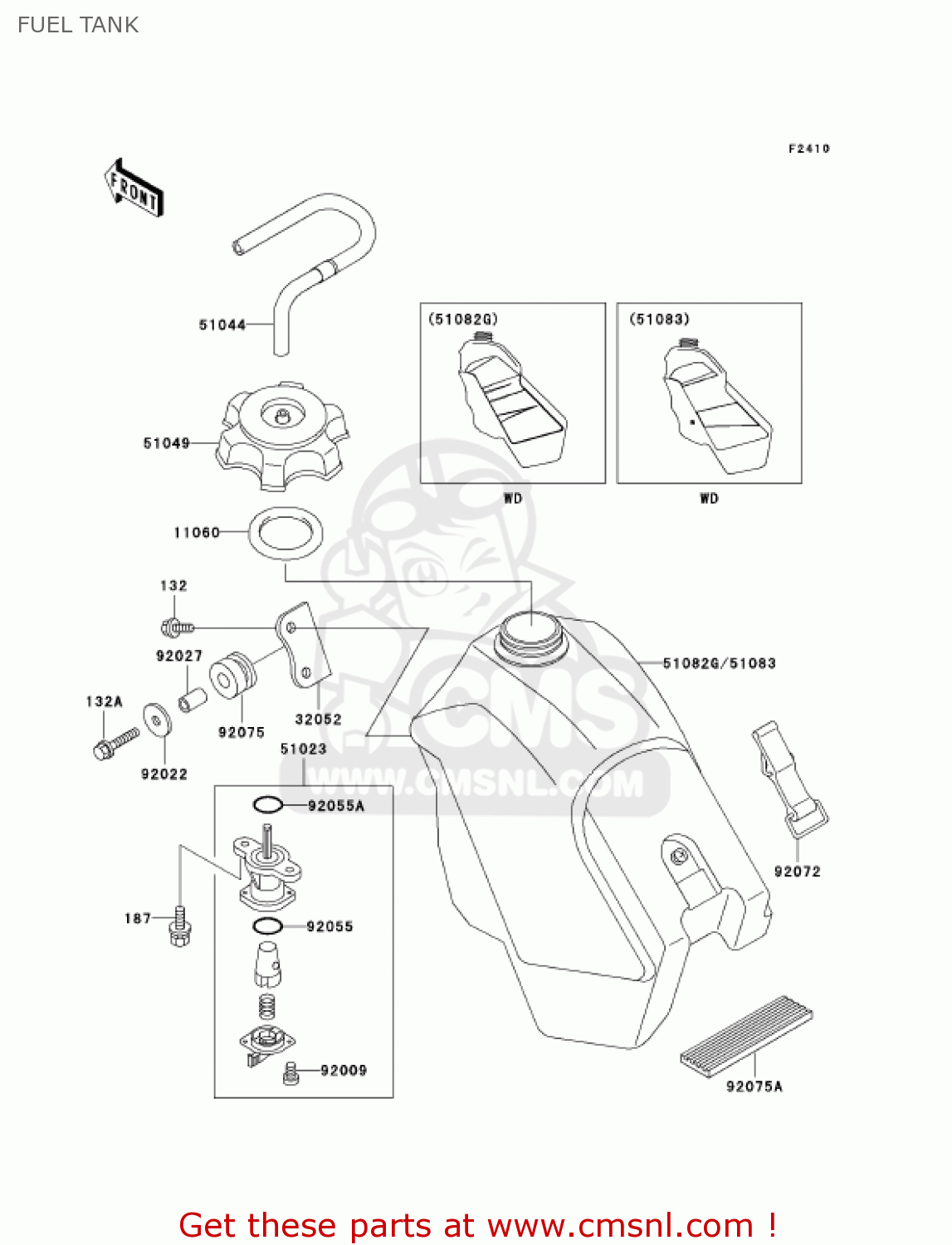

Fuel tank diagram KX500-E16 KX500 2004 USA CANADA
FUEL TANK KX500-E16 KX500 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0630
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
187
187B0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
11060
110601340
ref: 11060
GASKET,FUEL TANK CAP (NAS)
€ 4.00
32052
320521169
ref: 32052
BRACKET-TANK
€ 12.50
51023
510231115
ref: 51023
TAP-ASSY,FUEL
€ 37.00
51044
510441185
ref: 51044
TUBE-ASSY
€ 11.00
51049
510491108
ref: 51049
CAP-TANK,FUEL
€ 19.00
51083
5108350776Z
ref: 51083
TANK-COMP-FUEL,F.BLAC
€ 308.00
92009
920091386
ref: 92009
SCREW,3X8
€ 2.00
92022
920221690
ref: 92022
WASHER
€ 2.50
92027
920271833
ref: 92027
COLLAR,6.8X10X17
€ 3.50
92055
920551299
ref: 92055
RING-O
€ 1.00
92055A
920551300
ref: 92055A
RING-O,FUEL TAP PACKI
€ 5.00
92072
920721229
ref: 92072
BAND,FUEL TANK
€ 8.50
92075
920751660
ref: 92075
DAMPER
€ 5.50
92075A
920751987
ref: 92075A
DAMPER,FUEL TANK
€ 8.00
