GEAR CHANGE DRUM/SHIFT FORK(S)

KX500-E15 KX500 2003 USA CANADA

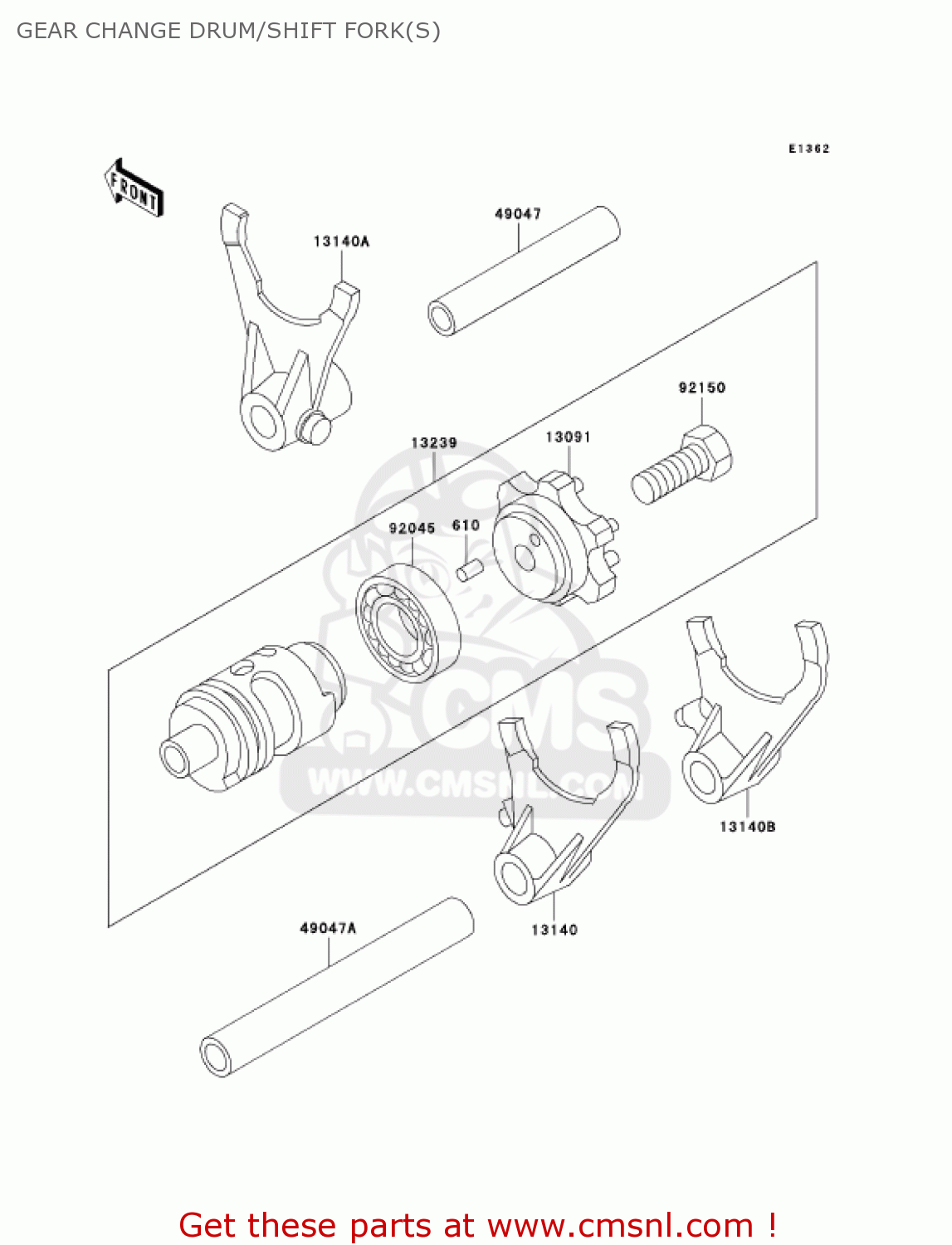

Gear change drum/shift fork(s) diagram KX500-E15 KX500 2003 USA CANADA

prices are in EUR

ref

part #

description

quantity

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

13091

130911555
ref: 13091

HOLDER,CHANGE DRUM

€ 78.00

13140

131401058
ref: 13140

FORK-SHIFT,2ND&3RD

€ 69.00

13140A

131401059
ref: 13140A

FORK-SHIFT,4TH&TOP

€ 69.00

13140B

131401142
ref: 13140B

FORK-SHIFT,LOW

€ 71.00

13239

132391143
ref: 13239

DRUM-ASSY-CHANGE

€ 148.50

49047

490471063
ref: 49047

ROD-SHIFT,L=64.5

€ 11.00

49047A

490471064
ref: 49047A

ROD-SHIFT,L=81

€ 12.00

92045

92045036
ref: 92045

BEARING-BALL,#6905

€ 29.00

92150

921501490
ref: 92150

BOLT

€ 3.00
