KICKSTARTER MECHANISM
KX500-E14 KX500 2002 USA CANADA

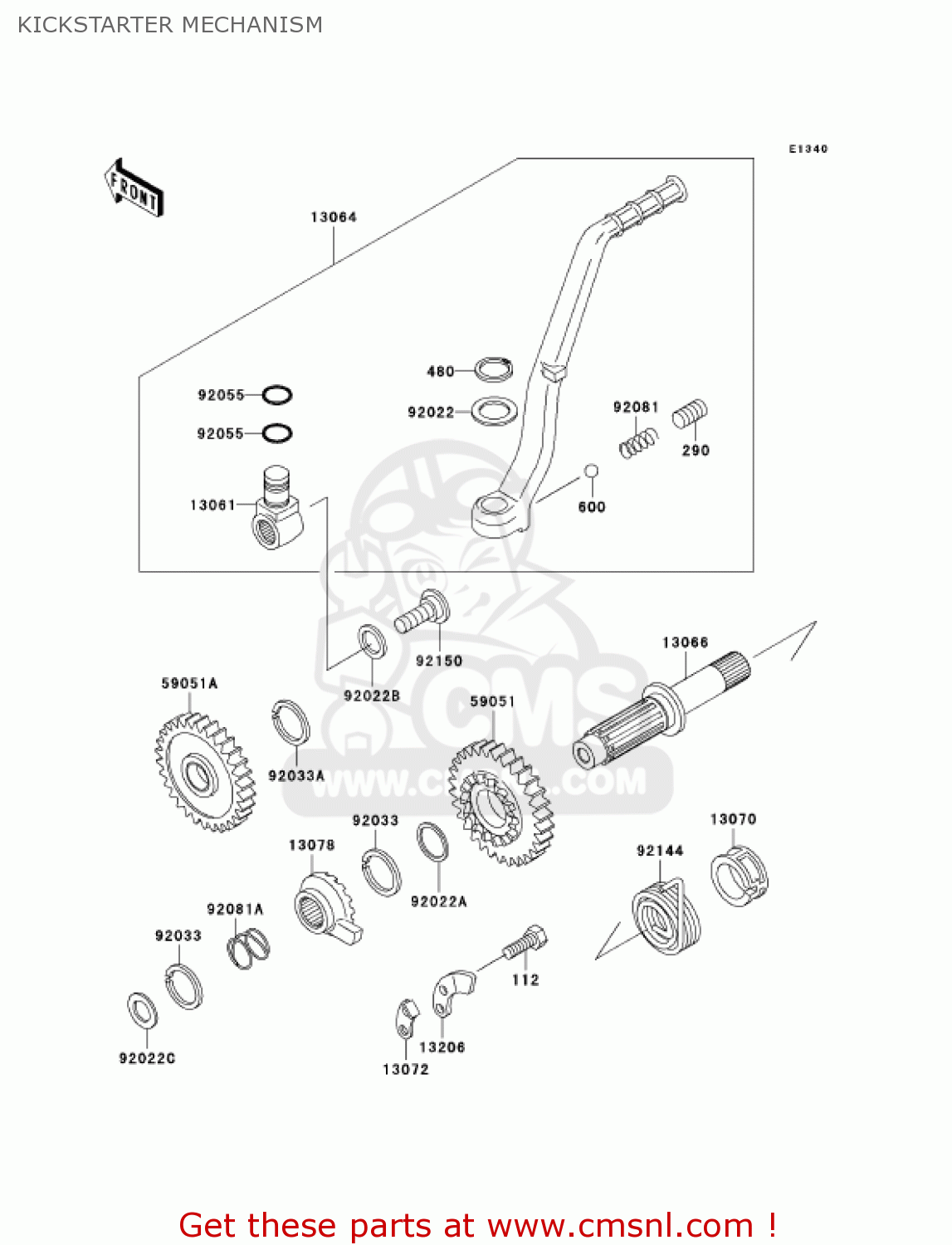

Kickstarter mechanism diagram KX500-E14 KX500 2002 USA CANADA
KICKSTARTER MECHANISM KX500-E14 KX500 2002 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
112
112G0618
ref: 112
BOLT-UPSET
€ 0.50
290
290P0812
ref: 290
SCREW-SET-SOCKET
€ 2.00
480
480J1500
ref: 480
CIRCLIP-TYPE-C,15MM
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130611408
ref: 13061
BOSS,KICK PEDAL
€ 56.50
13064
130641201
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 188.50
13066
130661056
ref: 13066
SHAFT-KICK
€ 95.50
13070
13070011
ref: 13070
GUIDE,KICKSTARTER SPR
€ 6.50
13072
13072014
ref: 13072
STOPPER,KICKSTARTER
€ 6.50
13078
13078007
ref: 13078
RATCHET
€ 50.00
13206
132061003
ref: 13206
GUIDE-KICK
€ 7.00
59051
590511149
ref: 59051
GEAR-SPUR,KICKSTARTER
€ 114.00
59051A
590511150
ref: 59051A
GEAR-SPUR,IDLE,26T
€ 90.50
92022
920221205
ref: 92022
WASHER,16.3X24X1
€ 2.50
92022A
92022159
ref: 92022A
WASHER-THRUST,25MM
€ 5.50
92022B
920221944
ref: 92022B
WASHER,10X22X3.2
€ 3.00
92022C
92022252
ref: 92022C
WASHER
€ 4.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92055
92055061
ref: 92055
RING-O,10X1.5
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081097
ref: 92081A
SPRING
€ 7.50
92144
921441115
ref: 92144
SPRING,KICKSTARTER
€ 18.00
92150
921501800
ref: 92150
BOLT
€ 4.50
