FRONT FORK
KX500-E13 KX500 2001 USA CANADA

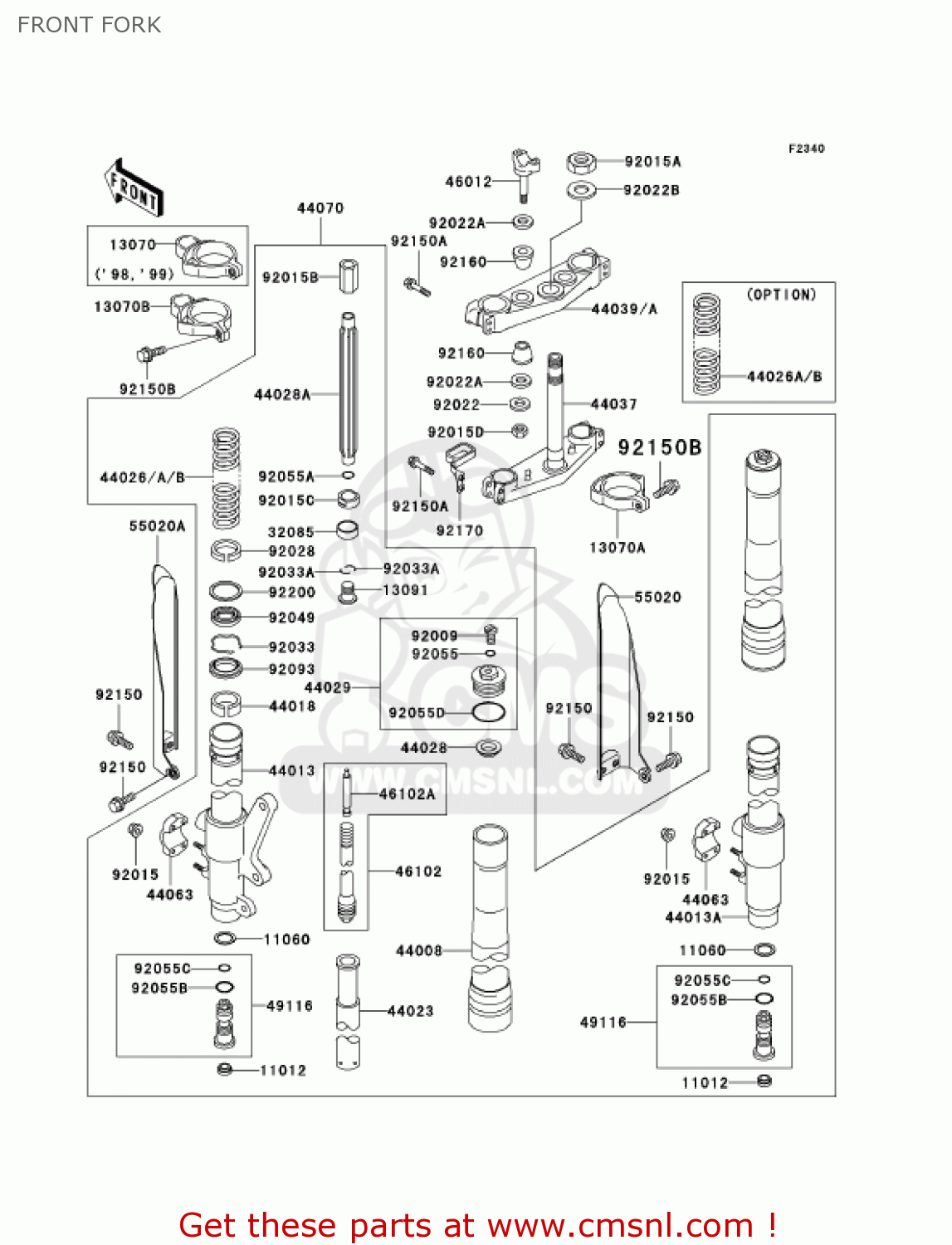

Front fork diagram KX500-E13 KX500 2001 USA CANADA
FRONT FORK KX500-E13 KX500 2001 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121692
ref: 11012
CAP
€ 4.00
11060
110601707
ref: 11060
GASKET (NAS)
€ 3.00
13070A
130701290RZ
ref: 13070A
GUIDE,PROTECTOR,RH,WH
€ 20.00
13070B
130701329RZ
ref: 13070B
GUIDE,PROTECTOR,LH,WH
€ 14.50
13091
130911651
ref: 13091
HOLDER
€ 18.00
32085
320851323
ref: 32085
STOPPER
€ 10.50
44008
44008103714
ref: 44008
PIPE-FORK OUTER,A.N.G
€ 816.50
44013
440131413
ref: 44013
PIPE-FORK INNER,LH
€ 312.00
44013A
440131414
ref: 44013A
PIPE-FORK INNER,RH
€ 312.00
44018
440181059
ref: 44018
PISTON-FORK,INNER PIP
€ 17.50
44023
440231114
ref: 44023
CYLINDER-COMP-FORK
€ 340.00
44026
440261620
ref: 44026
SPRING-FRONT FORK,K=
€ 79.50
44026A
440261623
ref: 44026A
(OPTION)
SPRING-FRONT FORK,K=
€ 80.50
44026B
440261624
ref: 44026B
(OPTION)
SPRING-FRONT FORK,K=
€ 79.50
44028
440281097
ref: 44028
GUIDE-FORK SPRING
€ 10.50
44028A
440281100
ref: 44028A
GUIDE-FORK SPRING
€ 40.50
44029
440291159
ref: 44029
SEAT-FORK SPRING
€ 90.50
44037
440371354
ref: 44037
HOLDER-FORK UNDER
€ 513.00
44039A
440391295
ref: 44039A
HOLDER-FORK UPPER
€ 215.50
44063
440631060
ref: 44063
HOLDER-FRONT AXLE
€ 40.00
44070
44070155114
ref: 44070
DAMPER-ASSY,FORK,A.N.
€ 2,143.00
46012
460121264
ref: 46012
HOLDER-HANDLE,LWR
€ 32.50
46102
461021401
ref: 46102
ROD,FORK,ASSY
€ 544.00
46102A
461021403
ref: 46102A
ROD,FORK,INNER
€ 19.00
49116
491161150
ref: 49116
VALVE-ASSY,FORK
€ 166.00
55020
550201493RZ
ref: 55020
GUARD,FORK,RH,WHITE
€ 44.50
55020A
550201554RZ
ref: 55020A
GUARD,FORK,LH,WHITE
€ 44.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
€ 11.50
92015B
920151872
ref: 92015B
NUT
€ 18.00
92015C
920151945
ref: 92015C
NUT
€ 8.00
92015D
920151962
ref: 92015D
NUT
€ 2.00
92022
920221088
ref: 92022
WASHER,10.2X28X2
€ 3.00
92022A
920221737
ref: 92022A
WASHER
€ 3.50
92022B
920221873
ref: 92022B
WASHER
€ 5.00
92028
920281755
ref: 92028
BUSHING
€ 17.00
92033
920331264
ref: 92033
RING-SNAP
€ 4.00
92033A
920331271
ref: 92033A
RING-SNAP
€ 3.50
92049
920491440
ref: 92049
SEAL-OIL,FORK OUTER T
€ 22.00
92055
920551441
ref: 92055
RING-O
€ 2.50
92055A
920551442
ref: 92055A
RING-O
€ 4.50
92055B
920551547
ref: 92055B
RING-O,FORK VALVE
€ 2.50
92055C
920551548
ref: 92055C
RING-O,FORK VALVE
€ 2.00
92055D
920551549
ref: 92055D
RING-O
€ 6.00
92093
920931392
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.00
92150
921501435
ref: 92150
BOLT
€ 2.50
92150A
921501516
ref: 92150A
BOLT, FLANGED 8X40
€ 9.50
92150B
921501802
ref: 92150B
BOLT,5X16
€ 3.00
92160
921601544
ref: 92160
DAMPER,HANDLE HOLDER
€ 3.50
92170
921701604
ref: 92170
CLAMP,HOSE
€ 17.00
92200
922001006
ref: 92200
WASHER
€ 8.00
