FRONT FORK(KX500-E1)
KX500-E1 1989 EUROPE UK AL

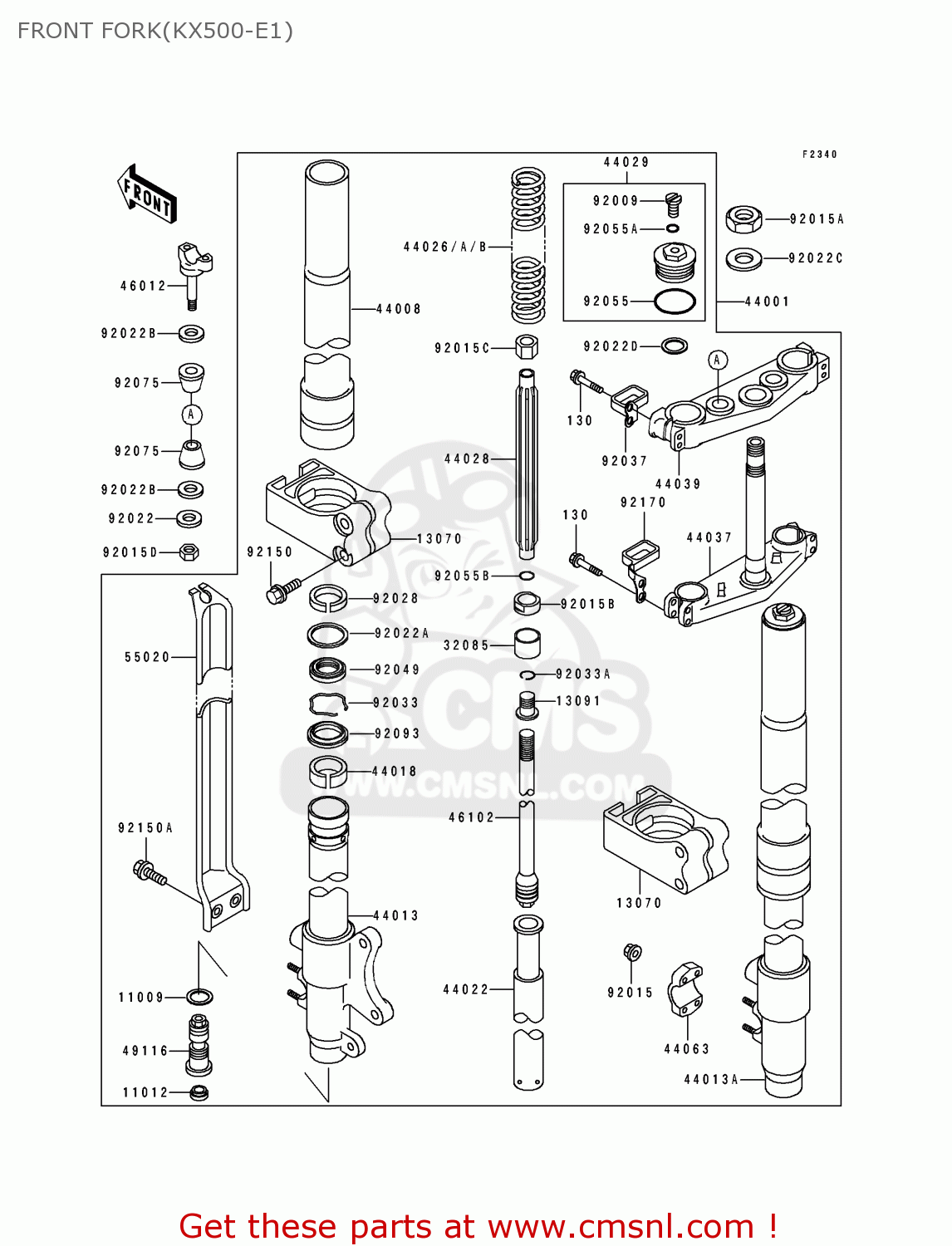

Front fork(kx500-e1) diagram KX500-E1 1989 EUROPE UK AL
FRONT FORK(KX500-E1) KX500-E1 1989 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091791
ref: 11009
GASKET (NAS)
€ 2.50
11012
110121692
ref: 11012
CAP
€ 4.00
13070
130701204
ref: 13070
GUIDE,PROTECTOR
€ 15.50
13091
130911611
ref: 13091
HOLDER
€ 8.50
32085
320851313
ref: 32085
STOPPER
€ 6.00
44001
440011709
ref: 44001
FORK-FRONT
€ 1,690.50
44008
440081001
ref: 44008
PIPE-FORK OUTER
€ 467.00
44013
440131287
ref: 44013
PIPE-FORK INNER,LH
€ 251.50
44013A
440131288
ref: 44013A
PIPE-FORK INNER,RH
€ 217.50
44018
440181054
ref: 44018
PISTON-FORK
€ 33.00
44022
440221235
ref: 44022
CYLINDER-FORK
€ 113.00
44026
440261413
ref: 44026
SPRING-FRONT FORK,K=0
€ 40.50
44026A
440261414
ref: 44026A
SPRING-FRONT FORK,K=0
€ 40.50
44026B
440261416
ref: 44026B
SPRING-FRONT FORK,K=0
€ 41.00
44028
440281065
ref: 44028
GUIDE-FORK SPRING
€ 36.50
44029
440291134
ref: 44029
SEAT-FORK SPRING
€ 53.50
44037
440371252
ref: 44037
HOLDER-FORK UNDER
€ 441.00
44039
440391190
ref: 44039
HOLDER-FORK UPPER
€ 217.50
44063
440631055
ref: 44063
HOLDER-FRONT AXLE
€ 24.00
46012
460121192
ref: 46012
HOLDER-HANDLE,LWR
€ 25.00
46102
461021269
ref: 46102
ROD
€ 369.00
49116
491161075
ref: 49116
VALVE-ASSY
€ 86.00
55020
550201336
ref: 55020
GUARD
€ 32.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
€ 11.50
92015B
920151775
ref: 92015B
NUT
€ 9.00
92015C
920151776
ref: 92015C
NUT
€ 10.50
92015D
92019021
ref: 92015D
NUT,LOCK,10M/M
€ 2.00
92022
920221088
ref: 92022
WASHER,10.2X28X2
€ 3.00
92022A
920221298
ref: 92022A
WASHER,FORK OUTER TUB
€ 5.50
92022B
920221737
ref: 92022B
WASHER
€ 3.50
92022C
920221873
ref: 92022C
WASHER
€ 5.00
92022D
920221998
ref: 92022D
WASHER
€ 2.50
92028
920281566
ref: 92028
BUSHING
€ 18.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92033A
920331261
ref: 92033A
RING-SNAP
€ 2.00
92037
920371628
ref: 92037
CLAMP
€ 12.50
92049
920491338
ref: 92049
SEAL-OIL
€ 13.00
92055
920551115
ref: 92055
RING-0,HOSE ASSY
€ 6.50
92055A
920551441
ref: 92055A
RING-O
€ 2.50
92055B
920551442
ref: 92055B
RING-O
€ 4.50
92075
920751776
ref: 92075
DAMPER
€ 5.00
92093
920931278
ref: 92093
SEAL
€ 13.50
92150
921501270
ref: 92150
BOLT,5X35
€ 3.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92170
921701088
ref: 92170
CLAMP
€ 19.50
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
