GEAR CHANGE MECHANISM
KX500-D1 1988 USA CANADA

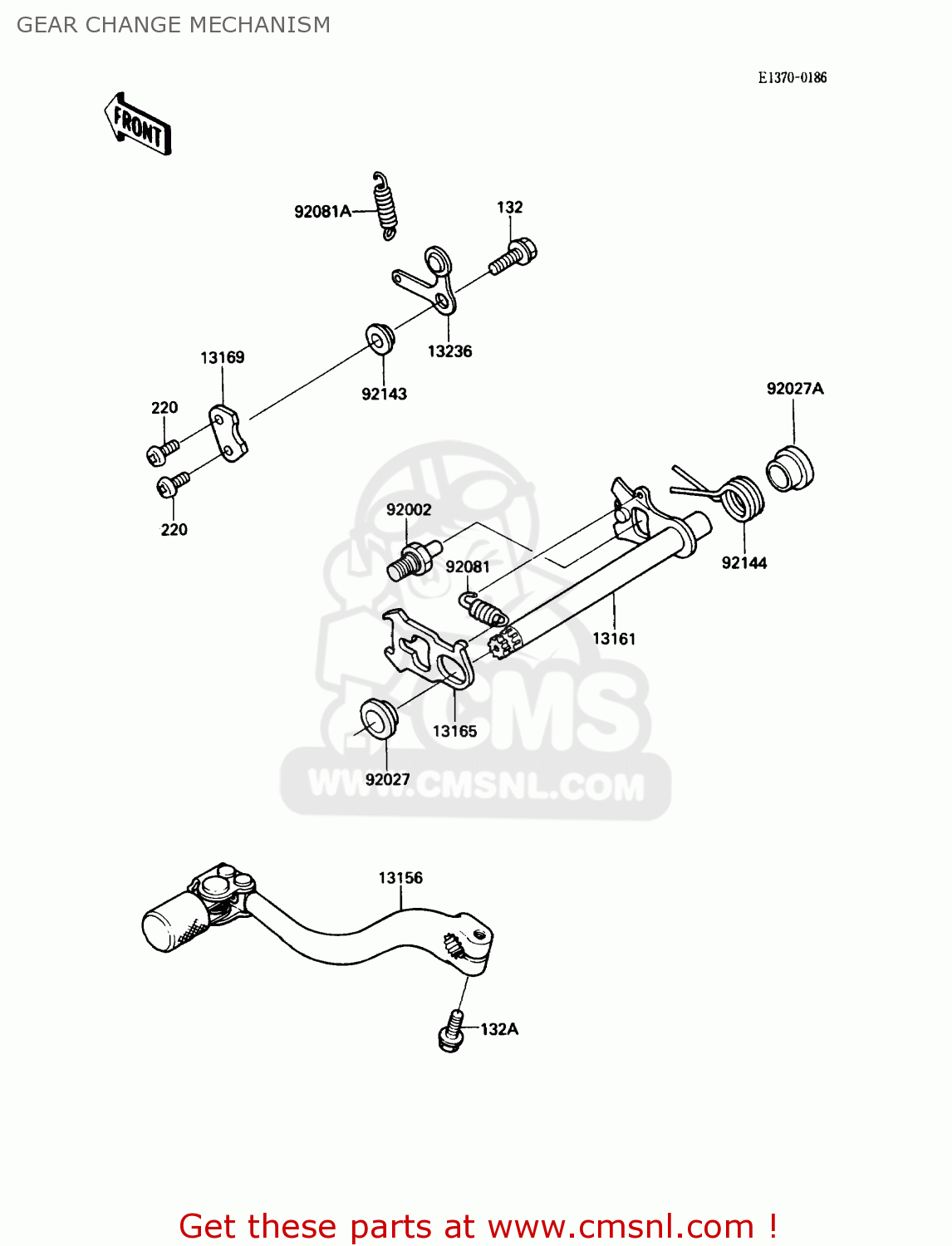

Gear change mechanism diagram KX500-D1 1988 USA CANADA
GEAR CHANGE MECHANISM KX500-D1 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
13156
131561240
ref: 13156
LEVER-CHANGE,PEDAL
€ 113.50
13161
131611144
ref: 13161
LEVER-COMP-CHANGE SHA
€ 35.00
13165
131651122
ref: 13165
PAWL,CHANGE LEVER
€ 9.50
13169
13169012
ref: 13169
PLATE,CHANGE DRAM
€ 11.50
13236
132361155
ref: 13236
LEVER-COMP,POSITION
€ 8.00
92002
920021601
ref: 92002
BOLT,8X15
€ 5.00
92027
920271512
ref: 92027
COLLAR,CHANGE SHAFT,L
€ 8.00
92027A
920271946
ref: 92027A
COLLAR
€ 4.00
92081
92081076
ref: 92081
SPRING-CHANG LEVER
€ 3.50
92081A
92083012
ref: 92081A
SPRING,CHNG DRUM LEV
€ 3.00
92143
921431055
ref: 92143
COLLAR
€ 4.50
92144
921441142
ref: 92144
SPRING,CHANGE SHAFT R
€ 9.50
