FRONT FORK
KX450D7F KX450F 2007 USA CANADA

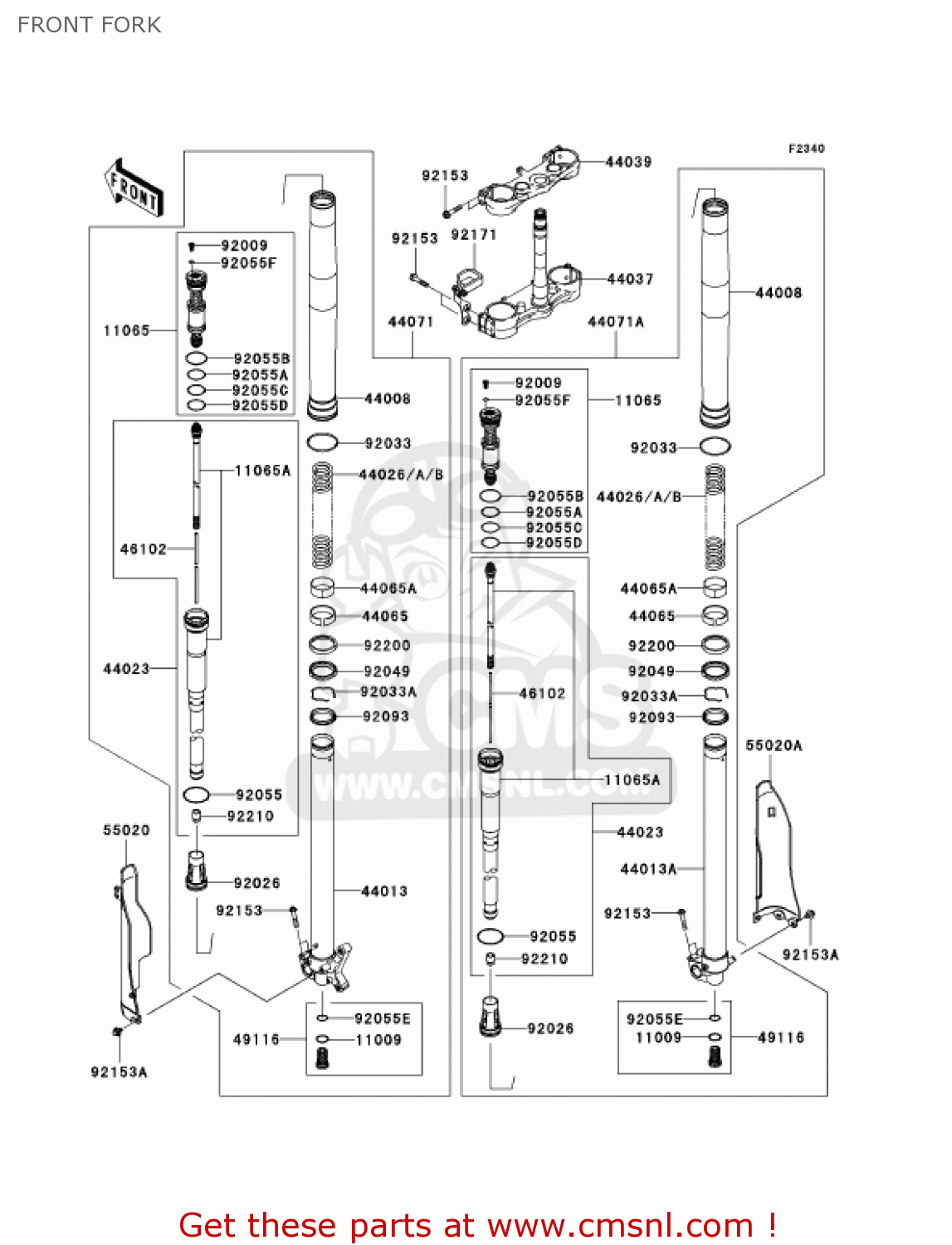

Front fork diagram KX450D7F KX450F 2007 USA CANADA
FRONT FORK KX450D7F KX450F 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11065
110650162
ref: 11065
CAP,BASE VALVE
€ 227.00
11065A
11065016310J
ref: 11065A
CAP,FORK,TOP,GOLD
€ 193.50
44008
440080031828
ref: 44008
PIPE-FORK OUTER,GOLD
€ 554.50
44013
440130086
ref: 44013
PIPE-FORK INNER,LH
€ 420.00
44013A
440130087
ref: 44013A
PIPE-FORK INNER,RH
€ 420.00
44023
44023004710J
ref: 44023
CYLINDER-SET-FORK,GOL
€ 527.50
44026
440260096
ref: 44026
SPRING-FRONT FORK,K=4
€ 72.00
44026A
440260105
ref: 44026A
(OPTION)
SPRING-FRONT FORK,K=4
€ 75.00
44026B
440260106
ref: 44026B
(OPTION)
SPRING-FRONT FORK,K=4
€ 75.00
44037
44037003310Y
ref: 44037
HOLDER-FORK UNDER,M.M
€ 419.00
44039
44039003510Y
ref: 44039
HOLDER-FORK UPPER,M.M
€ 204.50
44065
440650006
ref: 44065
BUSHING-FRONT FORK
€ 14.00
44065A
440651140
ref: 44065A
BUSHING-FRONT FORK
€ 15.00
44071
440715017
ref: 44071
DAMPER-ASSY,FORK,LH
€ 905.00
44071A
440715018
ref: 44071A
DAMPER-ASSY,FORK,RH
€ 905.00
46102
461020086
ref: 46102
ROD,PISTON
€ 378.00
49116
491160015
ref: 49116
VALVE-ASSY
€ 178.50
55020
550200172RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 45.50
55020A
550200334RZ
ref: 55020A
GUARD,FORK,RH,WHITE
€ 42.00
92009
920091884
ref: 92009
SCREW
€ 4.50
92026
920260097
ref: 92026
SPACER
€ 21.00
92033
920330049
ref: 92033
RING-SNAP
€ 3.00
92033A
920331329
ref: 92033A
RING-SNAP
€ 4.50
92049
920490070
ref: 92049
SEAL-OIL
€ 18.00
92055
920550104
ref: 92055
RING-O
€ 3.50
92055A
920550105
ref: 92055A
RING-O
€ 3.50
92055B
920550106
ref: 92055B
RING-O
€ 3.50
92055C
920550116
ref: 92055C
RING-O
€ 3.50
92055D
920550117
ref: 92055D
RING-O
€ 3.50
92055E
920551156
ref: 92055E
RING-O,REARSHOCK
€ 1.00
92055F
920551441
ref: 92055F
RING-O
€ 2.50
92093
920931566
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.00
92153
921530484
ref: 92153
BOLT,FLANGED,8X40
€ 2.00
92153A
921530936
ref: 92153A
BOLT,FLANGED,6X14
€ 2.00
92171
921710414
ref: 92171
CLAMP,HOSE
€ 15.00
92200
922000067
ref: 92200
WASHER
€ 9.00
92210
922100337
ref: 92210
NUT
€ 17.00
