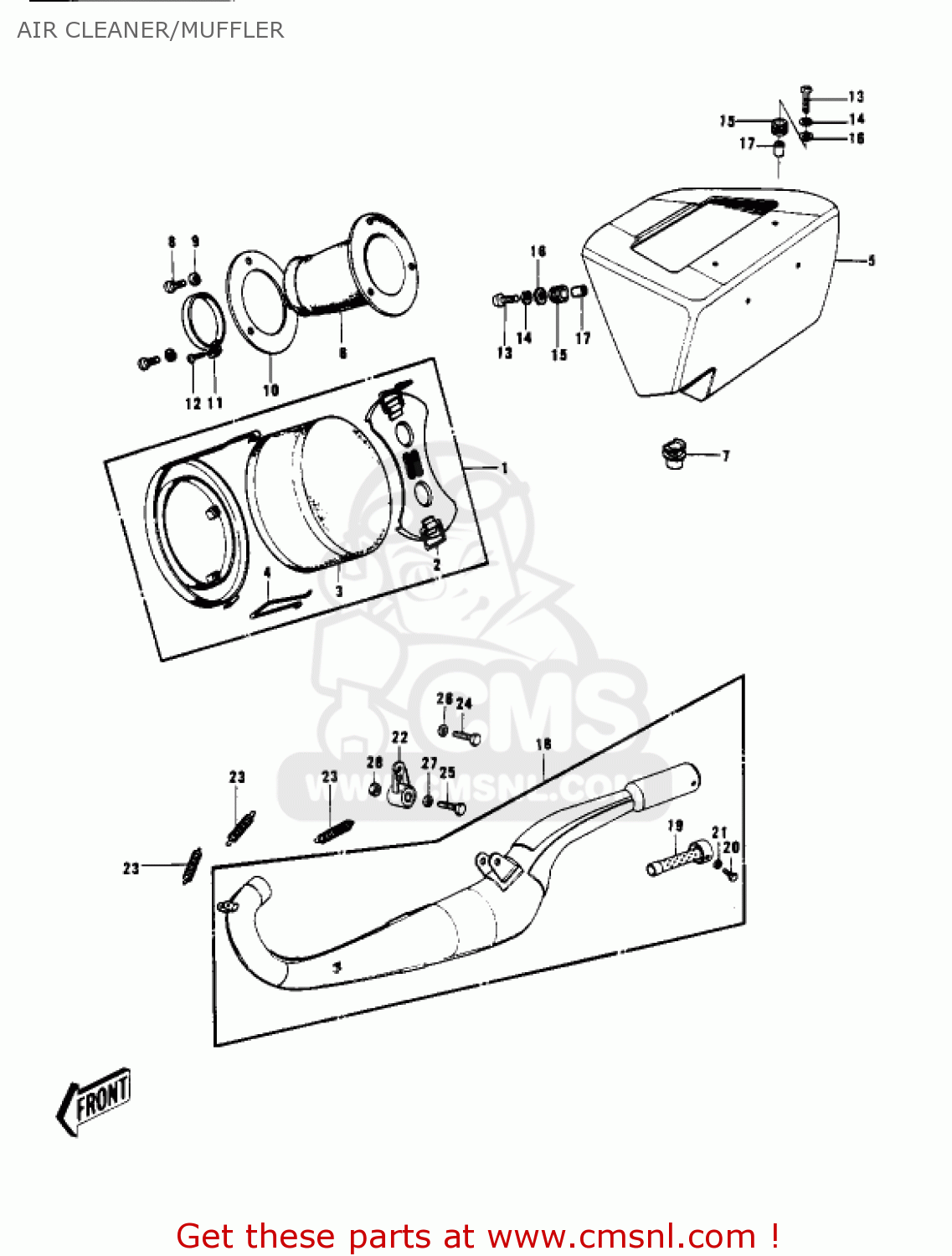

AIR CLEANER/MUFFLER

ref

part #

description

quantity

1

11010073
ref: 1

AIR CLEANER ASSY

€ 129.00

2

11012040
ref: 2

CAP,AIR CLEANER

€ 6.50

3

11013043
ref: 3

ELEMENT,AIR CLEANER

€ 57.00

4

92079007
ref: 4

FASTNER,AIR CLEANER

€ 3.00

5

11011047
ref: 5

BODY,AIR CLEANER

€ 129.00

6

11015048
ref: 6

PIPE,AIR INLET

€ 4.50

7

92067019
ref: 7

PLUG,AIR DRAIN

€ 2.50

8

220B0616
ref: 8

SCREW-PAN HEAD,6X16

€ 2.50

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

92095013
ref: 10

HOLDER,AIR CLEANER

€ 2.50

11

92037068
ref: 11

CLAMP

€ 7.50

12

220B0635
ref: 12

SCREW-PAN HEAD,6X35

€ 1.00

13

220B0620
ref: 13
KX400

SCREW-PAN HEAD,6X20

€ 2.50

13

112G0620
ref: 13
KX400-A2

BOLT 6X20

€ 1.00

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

92075076
ref: 15

DAMPER

€ 3.00

16

92022125
ref: 16

WASHER,6.5X20X1.6

€ 1.00

17

92027194
ref: 17

COLLAR

€ 3.50

18

1800213421
ref: 18

MUFFLER ASSY,F.BLACK

€ 264.50

19

18033074
ref: 19

BAFFLE TUBE

€ 55.50

20

112G0610
ref: 20

BOLT,6X10

€ 0.50

21

461F0600
ref: 21

WASHER-SPRING,6MM

€ 0.50

22

18024026
ref: 22

BRACKET,MUFFLER

€ 29.50

23

18071006
ref: 23

SPRING,MUFFLER

€ 7.50

24

110N0816
ref: 24

BOLT-HEX HEAD,8X16

€ 0.50

25

110N0838
ref: 25

BOLT,HEX HEAD,8X38

€ 3.00

26

461F0800
ref: 26

WASHER-SPRING,8MM

€ 0.50

27

410B0800
ref: 27

WASHER-PLAIN-SMALL,8M

€ 0.50

28

92019018
ref: 28

NUT,8MM

€ 5.50

all assemblies
