MUFFLER(S)
KX250R6F KX250 2006 USA CANADA

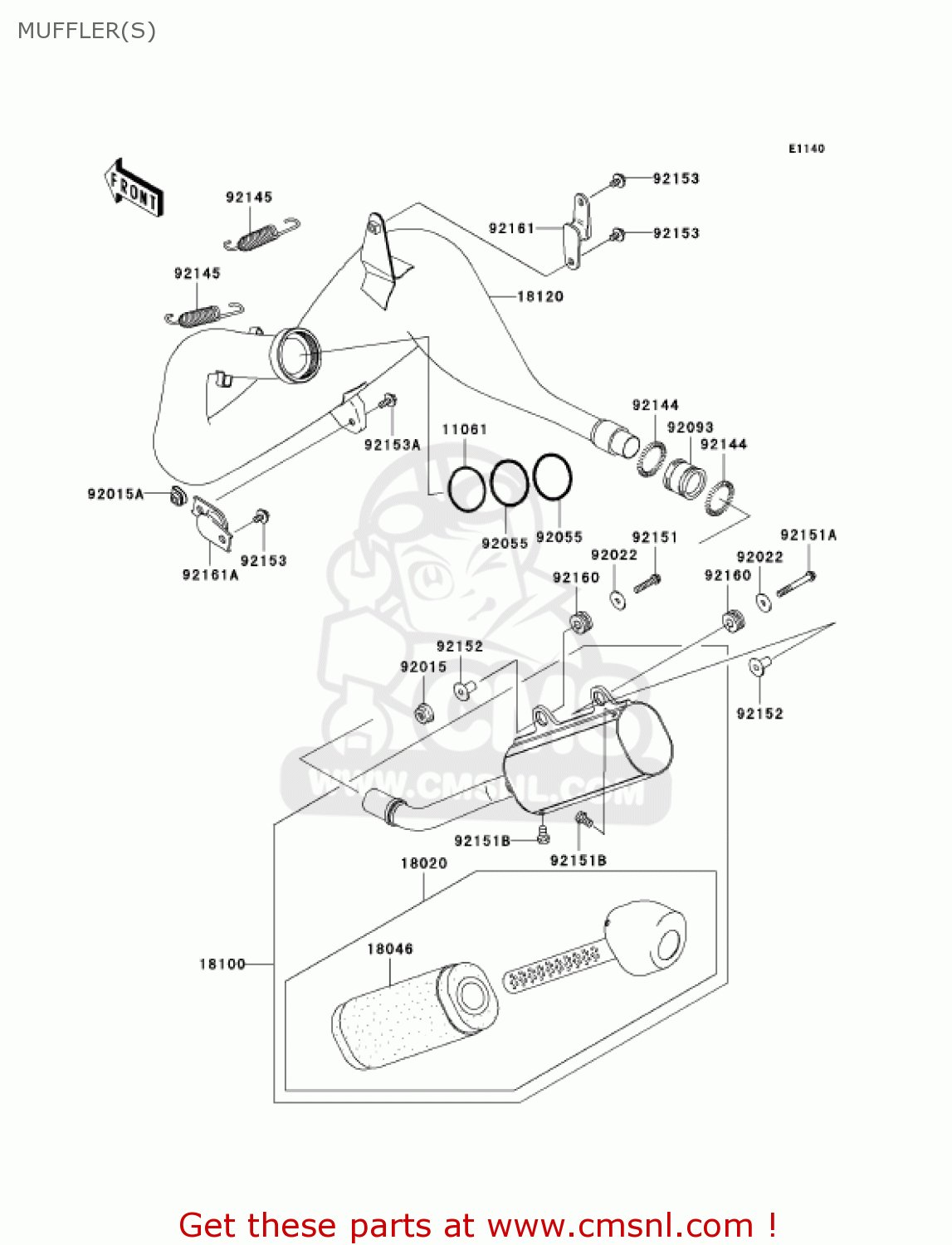

Muffler(s) diagram KX250R6F KX250 2006 USA CANADA
MUFFLER(S) KX250R6F KX250 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11061
110610142
ref: 11061
GASKET,EX.CHAMBER (NAS)
€ 5.00
18020
180201294
ref: 18020
BAFFLE
€ 111.00
18046
180461599
ref: 18046
WOOL
€ 86.50
18100
181000023
ref: 18100
BODY-ASSY-MUFFLER
€ 198.50
18120
181200014
ref: 18120
CHAMBER-EXHAUST
€ 235.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151904
ref: 92015A
NUT,CLIP,6MM
€ 4.50
92022
92022237
ref: 92022
WASHER-PLAIN
€ 2.50
92055
920550052
ref: 92055
RING-O,53.6X2.8
€ 8.00
92093
920931328
ref: 92093
SEAL,MUFFLER CONNECTI
€ 28.00
92144
921441204
ref: 92144
SPRING
€ 3.50
92145
921450274
ref: 92145
SPRING,EX,CHAMBER
€ 15.50
92151
921511134
ref: 92151
BOLT,6X30
€ 1.50
92151A
921511234
ref: 92151A
BOLT,6X50
€ 1.50
92151B
921511822
ref: 92151B
BOLT,6X10
€ 1.50
92152
921521407
ref: 92152
COLLAR
€ 6.00
92153
921530503
ref: 92153
BOLT,6X12
€ 2.00
92153A
921530863
ref: 92153A
BOLT,6X16
€ 1.50
92160
921601913
ref: 92160
DAMPER,MUFFLER FITTIN
€ 1.50
92161
921610228
ref: 92161
DAMPER
€ 21.50
92161A
921611290
ref: 92161A
DAMPER
€ 21.50
