CRANKSHAFT/PISTON(S)

KX250-K3 1996 EUROPE FR AS

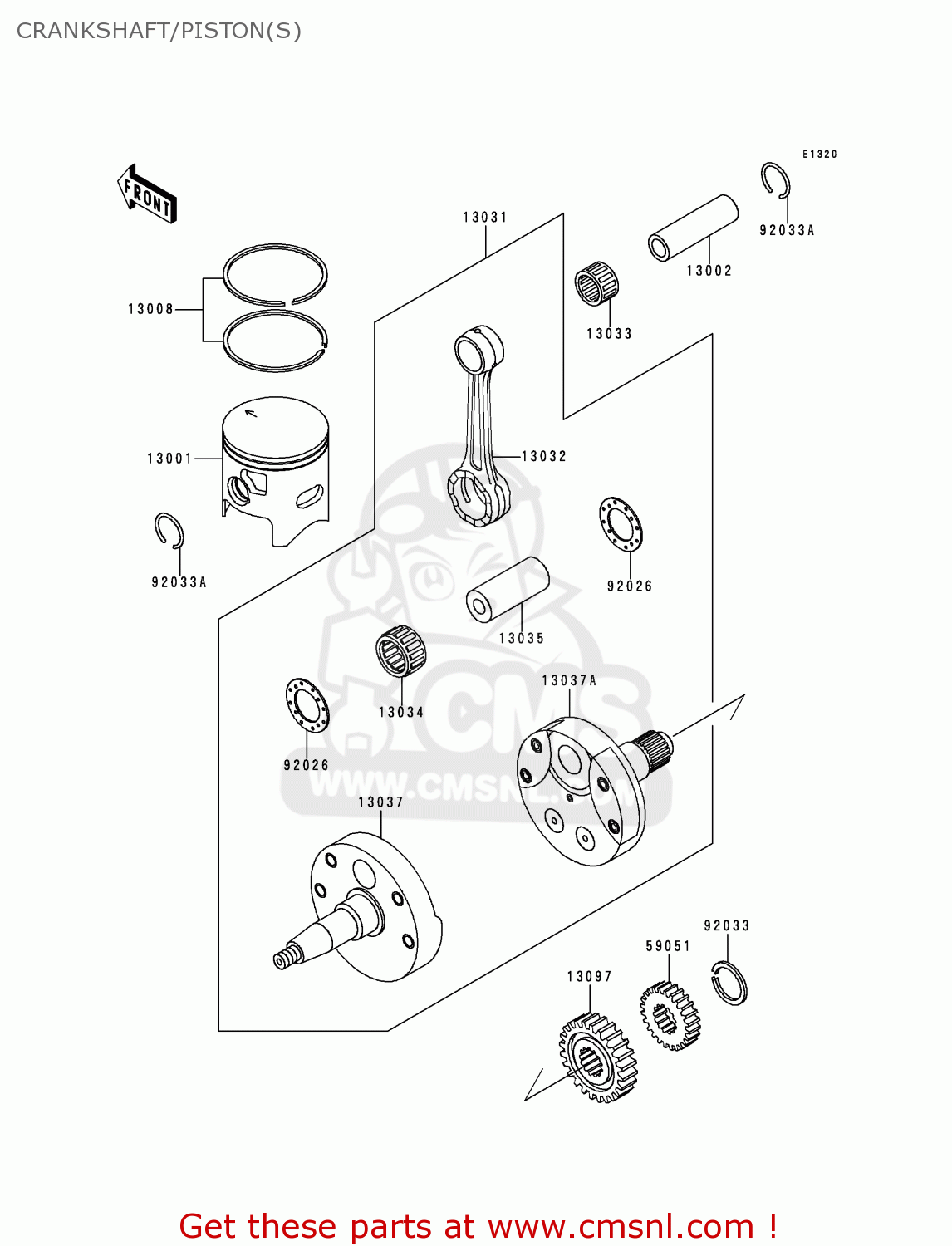

Crankshaft/piston(s) diagram KX250-K3 1996 EUROPE FR AS

prices are in EUR

ref

part #

description

quantity

13001

130011375
ref: 13001

PISTON-ENGINE,(B)

€ 153.00

13002

130021098
ref: 13002

PIN-PISTON

€ 19.00

13008

130081141
ref: 13008

RING-SET-PISTON

€ 55.00

13031

130311390
ref: 13031

CRANKSHAFT-COMP

€ 499.50

13032

130321076
ref: 13032

CON-ROD

€ 76.50

13033

130331010
ref: 13033

BEARING-NEEDLE,KBK18X

€ 22.50

13034

130341094
ref: 13034

BEARING-BIG END,B4

€ 53.00

13035

13035034
ref: 13035

PIN-CRANK

€ 54.50

13037

130371502
ref: 13037

CRANKSHAFT,LH

€ 246.00

13037A

130371504
ref: 13037A

CRANKSHAFT,RH

€ 276.00

13097

130971308
ref: 13097

GEAR-PRIMARY SPUR,20T

€ 46.00

59051

590511248
ref: 59051

GEAR-SPUR,27T

€ 20.50

92026

920261241
ref: 92026

SPACER

€ 4.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331267
ref: 92033A

RING-SNAP,PISTON PIN

€ 3.00

CRANKSHAFT/PISTON(S)

all assemblies
