Genuine KX Kawasaki Parts delivered quickly!
home
KICKSTARTER MECHANISM
KX250-K1 1994 EUROPE AS

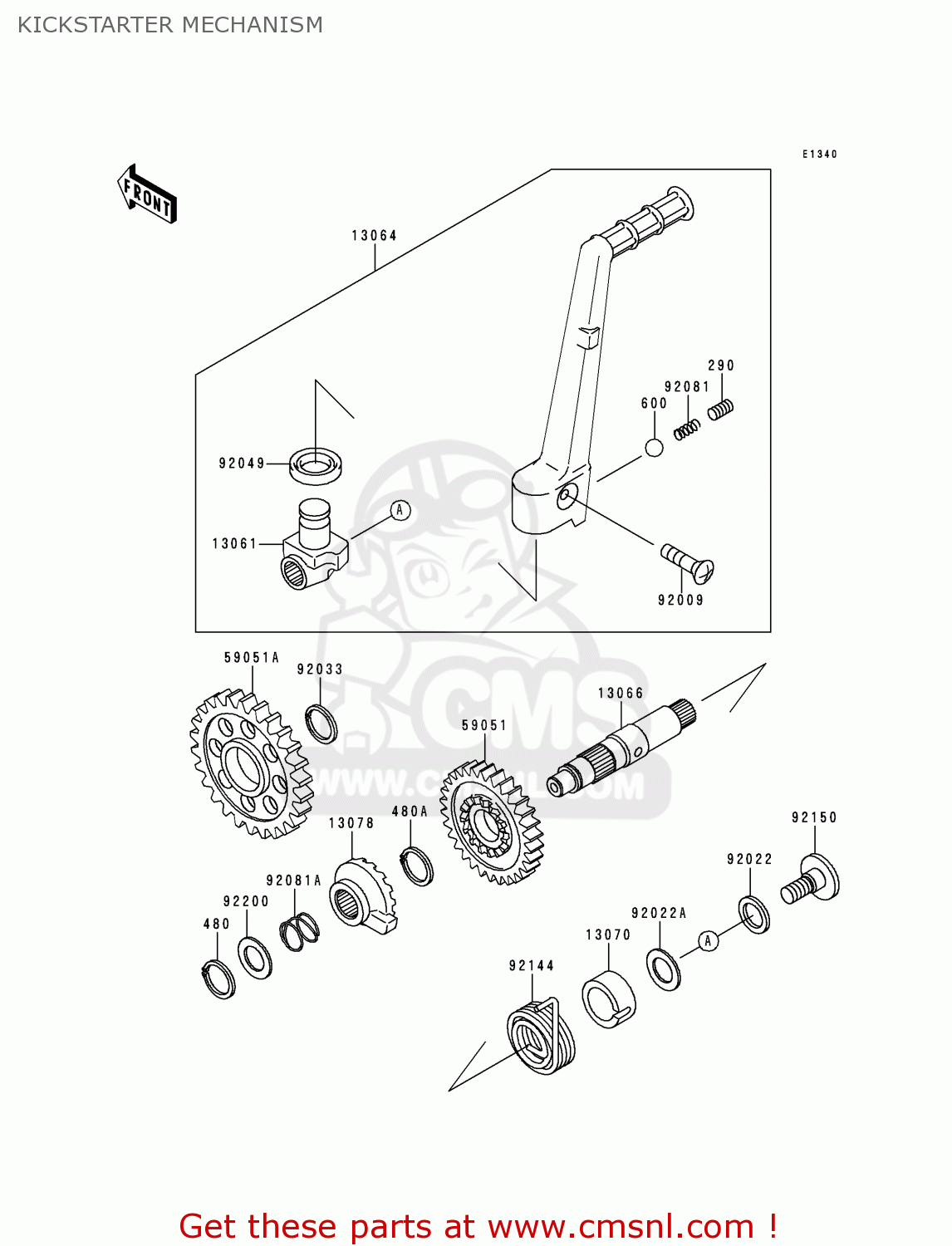

Kickstarter mechanism diagram KX250-K1 1994 EUROPE AS
KICKSTARTER MECHANISM KX250-K1 1994 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
290
290P0812
ref: 290
SCREW-SET-SOCKET
€ 2.00
480
480J1600
ref: 480
CIRCLIP-TYPE-C,16MM
€ 2.50
480A
480J1800
ref: 480A
CIRCLIP-TYPE-C,18MM
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130611432
ref: 13061
BOSS,KICK PEDAL
€ 66.50
13064
130641169
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 173.50
13066
130661090
ref: 13066
SHAFT-KICK
€ 104.50
13070
130701063
ref: 13070
GUIDE,KICK SPRING
€ 14.00
13078
130781063
ref: 13078
RATCHET
€ 61.50
59051
590511223
ref: 59051
GEAR-SPUR
€ 81.50
59051A
590511271
ref: 59051A
GEAR,KICKSTARTER IDLE
€ 83.00
92009
920091590
ref: 92009
SCREW,6X30
€ 3.00
92022
920221944
ref: 92022
WASHER,10X22X3.2
€ 3.00
92022A
92022271
ref: 92022A
WASHER,PLAIN
€ 3.50
92033
92033029
ref: 92033
CIRCLIP,18MM
€ 6.50
92049
920491387
ref: 92049
SEAL-OIL
€ 4.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
€ 6.00
92144
921441076
ref: 92144
SPRING,KICKSTARTER
€ 17.00
92150
921501800
ref: 92150
BOLT
€ 4.50
92200
922001209
ref: 92200
WASHER
€ 4.00
