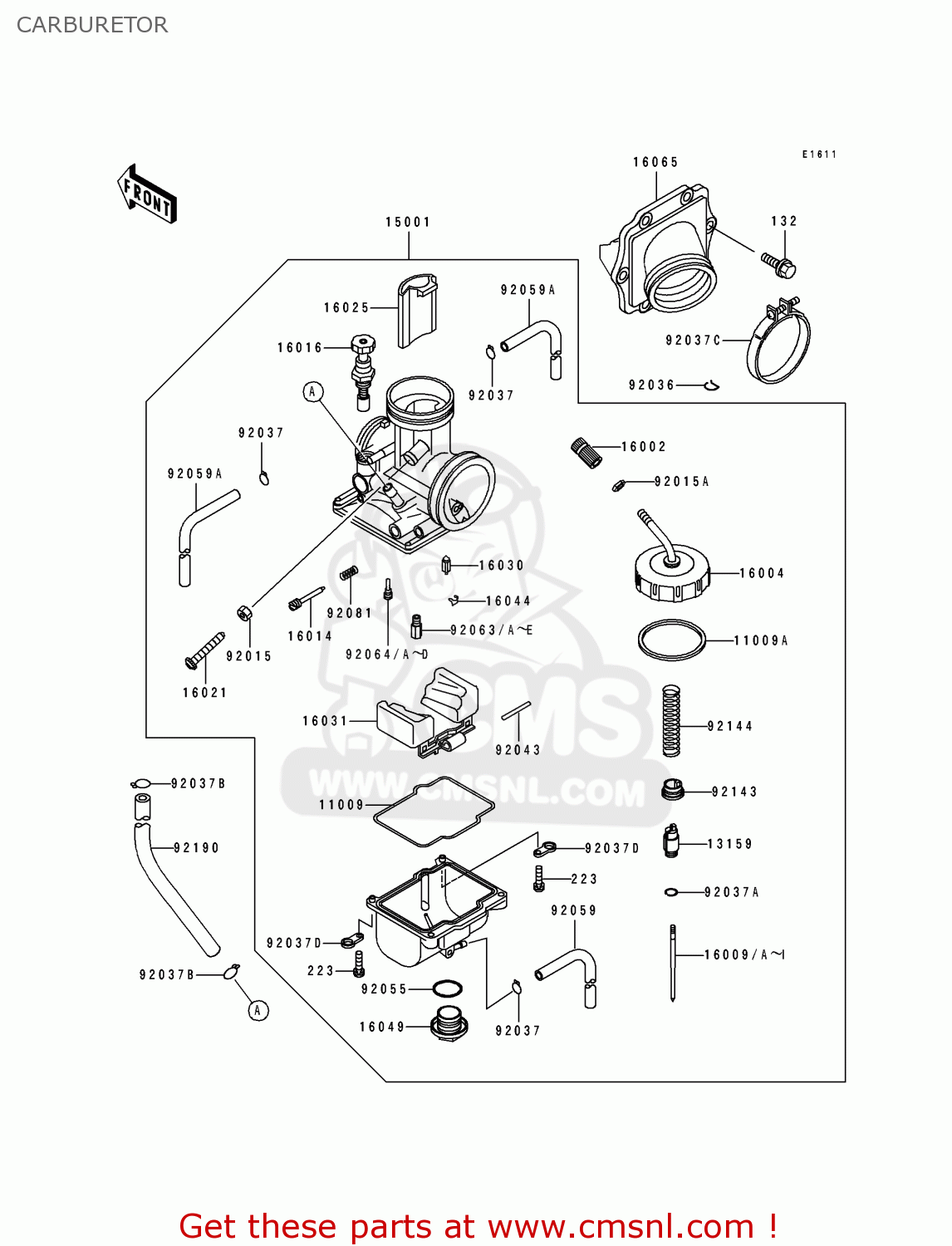

CARBURETOR

ref

part #

description

quantity

11009

110091716
ref: 11009

GASKET,FLOAT CHAMBER (NAS)

€ 10.00

11009A

110091717
ref: 11009A

GASKET,CHAMBER CAP (NAS)

€ 8.00

13159

131591063
ref: 13159

CONNECTOR,THROTTLE CA

€ 13.50

15001

150011755
ref: 15001

CARBURETOR-ASSY

€ 411.00

16002

160021057
ref: 16002

ADJUSTER-CABLE

€ 13.00

16004

160041070
ref: 16004

CAP-CHAMBER

€ 50.50

16009

160091694
ref: 16009

NEEDLE-JET,NOLZ

€ 19.00

16009A

160091695
ref: 16009A

NEEDLE-JET,NOLA

€ 20.50

16009B

160091696
ref: 16009B

NEEDLE-JET,NOLB

€ 19.00

16009C

160091697
ref: 16009C

NEEDLE-JET,NOLC

€ 19.00

16009D

160091698
ref: 16009D

NEEDLE-JET,NOLD

€ 22.00

16009E

160091699
ref: 16009E

NEEDLE-JET,NOPZ

€ 19.00

16009F

160091700
ref: 16009F

NEEDLE-JET,NOPA

€ 19.00

16009G

160091701
ref: 16009G

NEEDLE-JET,NOPB

€ 19.00

16009H

160091702
ref: 16009H

NEEDLE-JET,NOPC

€ 19.00

16009I

160091703
ref: 16009I

NEEDLE-JET,NOPD

€ 19.00

16014

160141058
ref: 16014

SCREW-PILOT AIR

€ 14.00

16016

160161075
ref: 16016

PLUNGER,STARTER

€ 29.00

16021

160211124
ref: 16021

SCREW-THROTTLE STOP

€ 16.00

16025

160251163
ref: 16025

VALVE-THROTTLE,CA7

€ 140.00

16030

160301057
ref: 16030

VALVE-FLOAT

€ 37.00

16031

160311067
ref: 16031

FLOAT

€ 43.00

16044

16044007
ref: 16044

CLIP, FLOAT VALVE

€ 4.00

16049

160491051
ref: 16049

COVER-MAIN JET

€ 23.50

16065

160651168
ref: 16065

HOLDER-CARBURETOR

€ 99.50

92015

920151707
ref: 92015

NUT,THROTTLE STOP SCR

€ 2.50

92015A

920151772
ref: 92015A

NUT,CABLE ADJUST LOCK

€ 3.00

92036

92036018
ref: 92036

CIRCLIP

€ 2.50

92037

920371396
ref: 92037

CLAMP,TUBE

€ 3.50

92037A

920371401
ref: 92037A

CLAMP,JET NEEDLE

€ 2.50

92037B

92037147
ref: 92037B

CLAMP,CHAIN OILER

€ 4.50

92037C

920371486
ref: 92037C

CLAMP,55MM

€ 5.50

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

223

223C0416
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

92037D

920371969
ref: 92037D

CLAMP,HOSE

€ 5.00

92043

920431207
ref: 92043

PIN,FLOAT

€ 6.00

92055

920551167
ref: 92055

RING-O,MAIN JET COVER

€ 6.50

92059

920591897
ref: 92059

TUBE,3.5X6.5X330

€ 7.50

92059A

920591898
ref: 92059A

TUBE,4X7X480

€ 10.00

92063

920631367
ref: 92063

JET-MAIN,#158

€ 10.00

92063A

920631368
ref: 92063A

JET-MAIN,#160

€ 10.00

92063B

920631369
ref: 92063B

JET-MAIN,#162

€ 9.50

92063C

920631370
ref: 92063C

JET-MAIN,#165

€ 9.50

92063D

920631371
ref: 92063D

JET-MAIN,#168

€ 10.00

92063E

920631377
ref: 92063E

JET-MAIN,#182

€ 11.00

92064

920641130
ref: 92064

JET-PILOT,#52

€ 11.00

92064A

920641145
ref: 92064A

JET-PILOT,#55

€ 11.50

92064B

920641146
ref: 92064B

JET-PILOT,#58

€ 12.00

92064C

920641147
ref: 92064C

JET-PILOT,#60

€ 12.50

92064D

920641148
ref: 92064D

JET-PILOT,#62

€ 11.50

92081

920811555
ref: 92081

SPRING,ADJUST SCREW

€ 3.50

92143

921431201
ref: 92143

COLLAR,THROTTLE VALVE

€ 15.00

92144

921441305
ref: 92144

SPRING,THROTTLE VALVE

€ 12.50

92190

921901292
ref: 92190

TUBE,5.8X10.8X140

€ 4.50
