TRANSMISSION
KX250-G1 1989 USA CANADA

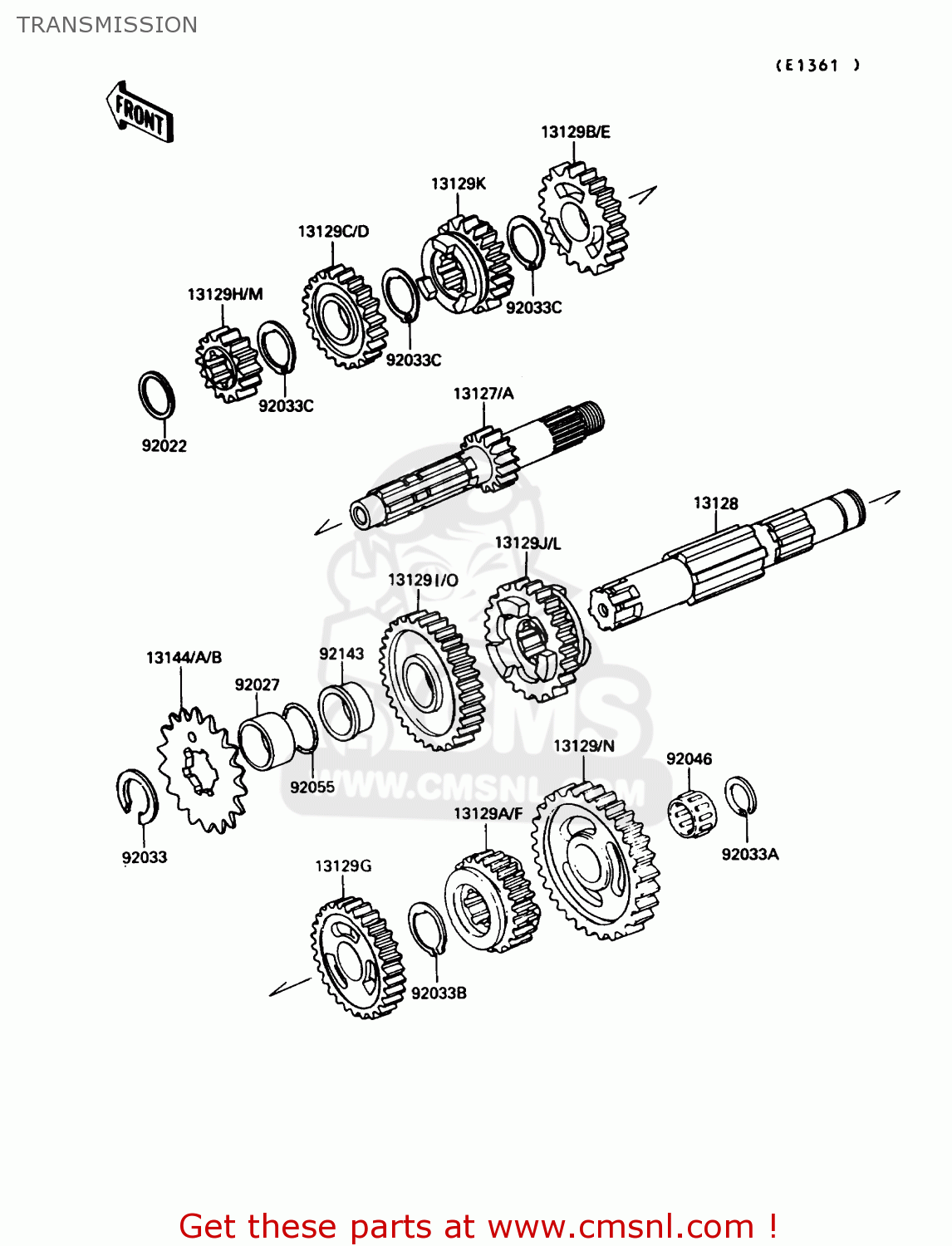

Transmission diagram KX250-G1 1989 USA CANADA
TRANSMISSION KX250-G1 1989 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271162
ref: 13127
SHAFT-TRANSMISSION IN
€ 236.50
13127A
131271172
ref: 13127A
SHAFT-TRANSMISSION IN
€ 142.00
13128
131281151
ref: 13128
SHAFT-TRANSMISSION OU
€ 146.00
13129
131291160
ref: 13129
GEAR,OUTPUT LOW,32T
€ 89.00
13129A
131291164
ref: 13129A
GEAR,OUTPUT TOP,24T
€ 88.50
13129B
131291206
ref: 13129B
GEAR,INPUT TOP,24T
€ 88.50
13129C
131291393
ref: 13129C
GEAR,INPUT 4TH,22T
€ 88.50
13129D
131291526
ref: 13129D
GEAR,INPUT 4TH,20T
€ 89.50
13129E
131291527
ref: 13129E
GEAR,INPUT TOP,28T
€ 89.50
13129F
131291529
ref: 13129F
GEAR,OUTPUT TOP,26T
€ 85.50
13129G
131291763
ref: 13129G
GEAR OUTPUT 3RD,25T
€ 79.50
13129H
131291911
ref: 13129H
GEAR,INPUT 2ND,16T
€ 51.50
13129I
131291912
ref: 13129I
GEAR,OUTPUT 2ND,27T
€ 94.50
13129J
131291913
ref: 13129J
GEAR,OUTPUT 4TH,25T
€ 119.00
13129K
131291956
ref: 13129K
GEAR,INPUT 3RD,18T
€ 50.00
13129L
131291970
ref: 13129L
GEAR,OUTPUT 4TH,22T
€ 89.50
13129M
131291975
ref: 13129M
GEAR,INPUT 2ND,17T
€ 68.50
13129N
131291976
ref: 13129N
GEAR,OUTPUT LOW,31T
€ 218.50
13129O
131291977
ref: 13129O
GEAR,OUTPUT 2ND,30T
€ 94.50
13144
13144069
ref: 13144
SPROCKET-OUTPUT,15T
€ 34.00
13144A
131441005
ref: 13144A
SPROCKET-OUTPUT,14T
€ 30.00
13144B
131441027
ref: 13144B
ENGINE SPROCKET,13T
€ 28.50
92022
920221799
ref: 92022
WASHER,17.3X22X0.5
€ 2.50
92027
920271963
ref: 92027
COLLAR,SPROCKET
€ 12.50
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92033B
920331089
ref: 92033B
RING-SNAP,25MM
€ 3.50
92033C
920331231
ref: 92033C
RING-SNAP,20MM
€ 3.50
92046
920461170
ref: 92046
BEARING-NEEDLE,KT2026
€ 9.00
92055
92055035
ref: 92055
O RING
€ 3.00
92143
921431157
ref: 92143
COLLAR
€ 17.00
