MUFFLER(S)
KX250-G1 1989 EUROPE UK AL

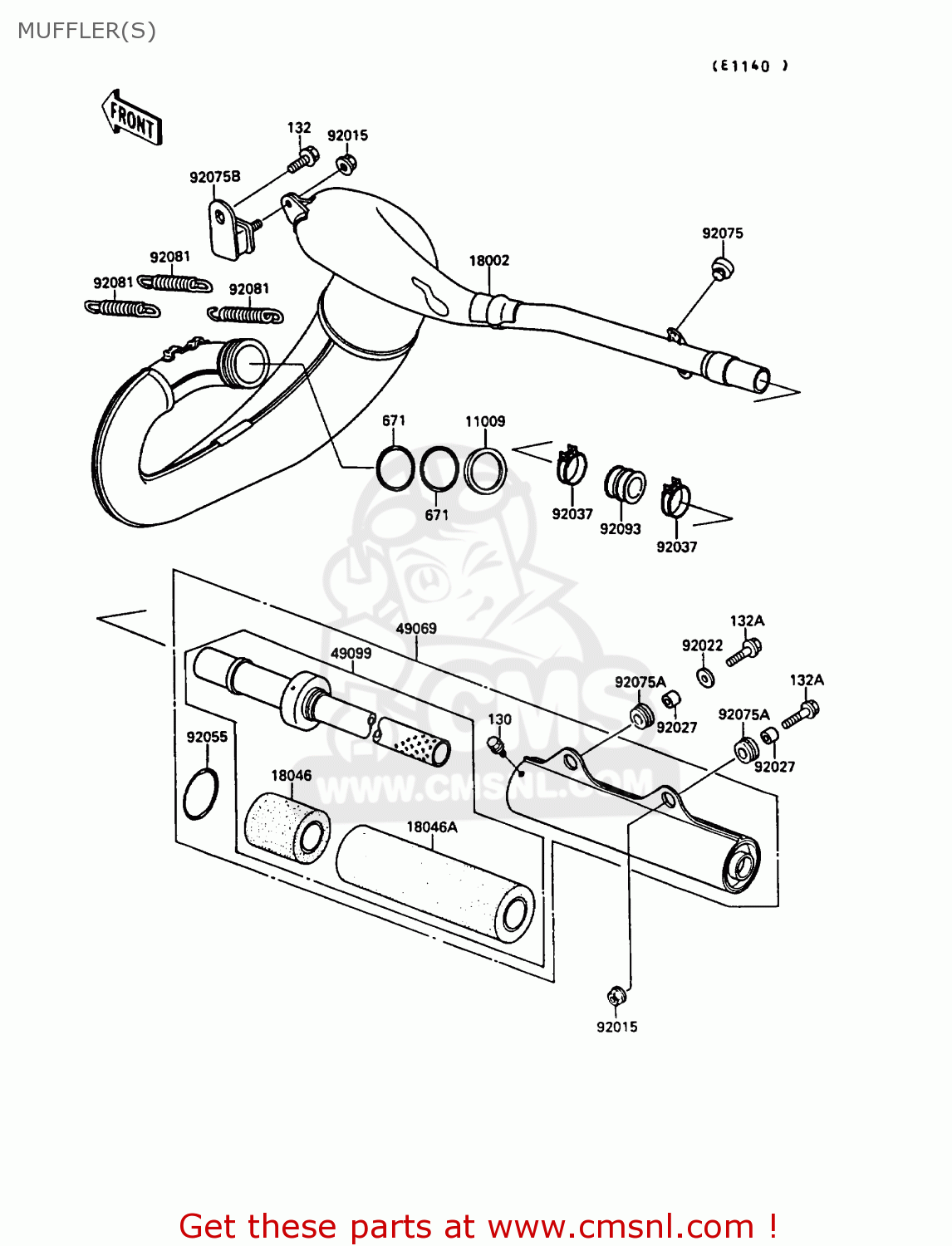

Muffler(s) diagram KX250-G1 1989 EUROPE UK AL
MUFFLER(S) KX250-G1 1989 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091253
ref: 11009
GASKET,EXHAUST PIPE (NAS)
€ 7.50
18002
180021866
ref: 18002
BODY-COMP-MUFFLER
€ 353.50
18046
180461096
ref: 18046
WOOL,MUFFLER BAFFLE P
€ 26.00
18046A
180461105
ref: 18046A
WOOL,MUFFLER BAFFLE P
€ 36.00
49069
490691094
ref: 49069
MUFFLER-ASSY
€ 208.00
49099
490991260
ref: 49099
BAFFLE-PIPE MUFFLER
€ 79.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022237
ref: 92022
WASHER-PLAIN
€ 2.50
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
€ 7.00
92037
92037177
ref: 92037
CLAMP
€ 7.50
92055
920551038
ref: 92055
RING-O,57.6X2.4
€ 4.50
92075
920751598
ref: 92075
DAMPER,SIDE COVER
€ 5.50
92075A
920751857
ref: 92075A
DAMPER,MUFFLER FITTIN
€ 3.50
92075B
920751891
ref: 92075B
DAMPER,MUFFLER
€ 21.00
92081
920811526
ref: 92081
SPRING,MUFFLER CONECT
€ 7.50
92093
920931014
ref: 92093
SEAL,MUFFLER
€ 19.50
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0630
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
671
671E2550
ref: 671
O RING,50MM
€ 10.50
