FRONT FORK
KX125-M1 KX125 2003 USA CANADA

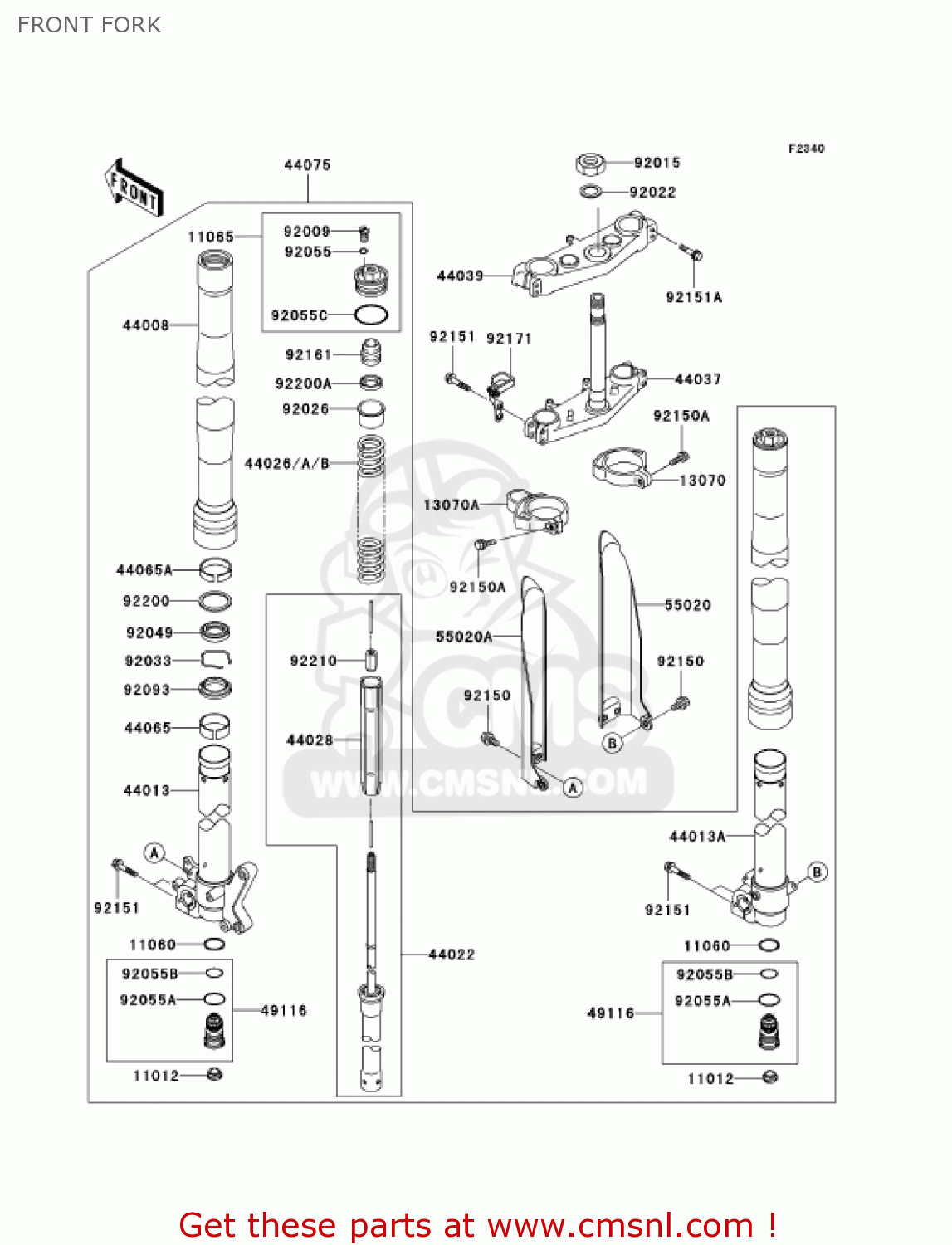

Front fork diagram KX125-M1 KX125 2003 USA CANADA
FRONT FORK KX125-M1 KX125 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121692
ref: 11012
CAP
€ 4.00
11060
110601707
ref: 11060
GASKET (NAS)
€ 3.00
11065
110651241
ref: 11065
CAP,FORK,TOP
€ 88.00
13070
130701290RZ
ref: 13070
GUIDE,PROTECTOR,RH,WH
€ 20.00
13070A
130701329RZ
ref: 13070A
GUIDE,PROTECTOR,LH,WH
€ 14.50
44008
440081060JS
ref: 44008
PIPE-FORK OUTER,BRONZ
€ 564.00
44013
440131517
ref: 44013
PIPE-FORK INNER,LH
€ 234.50
44013A
440131518
ref: 44013A
PIPE-FORK INNER,RH
€ 234.50
44022
440221348
ref: 44022
CYLINDER-FORK
€ 518.50
44026
440260009
ref: 44026
(OPTION)
SPRING-FRONT FORK,K=0
€ 71.50
44026A
440260011
ref: 44026A
(OPTION)
SPRING-FRONT FORK,K=0
€ 71.50
44026B
440261768
ref: 44026B
SPRING-FRONT FORK
€ 68.50
44028
440281105
ref: 44028
GUIDE-FORK SPRING
€ 33.00
44037
440371439
ref: 44037
HOLDER-FORK UNDER
€ 498.50
44039
440391330
ref: 44039
HOLDER-FORK UPPER
€ 204.50
44065
440651140
ref: 44065
BUSHING-FRONT FORK
€ 15.00
44065A
440651141
ref: 44065A
BUSHING-FRONT FORK
€ 16.00
44075
440751177JS
ref: 44075
DAMPER-SET-FORK,BRONZ
€ 2,665.50
49116
491161201
ref: 49116
VALVE-ASSY,FORK
€ 146.50
55020
550201493RZ
ref: 55020
GUARD,FORK,RH,WHITE
€ 44.50
55020A
550201554RZ
ref: 55020A
GUARD,FORK,LH,WHITE
€ 44.50
92009
920091884
ref: 92009
SCREW
€ 4.50
92015
920151057
ref: 92015
NUT,24MM
€ 10.50
92022
92022250
ref: 92022
WASHER,PLAIN
€ 3.00
92026
920261622
ref: 92026
SPACER
€ 11.50
92033
920331329
ref: 92033
RING-SNAP
€ 4.50
92049
920491599
ref: 92049
SEAL-OIL
€ 18.00
92055
920551441
ref: 92055
RING-O
€ 2.50
92055A
920551547
ref: 92055A
RING-O,FORK VALVE
€ 2.50
92055B
920551548
ref: 92055B
RING-O,FORK VALVE
€ 2.00
92055C
920551677
ref: 92055C
RING-O
€ 6.50
92093
920931566
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.00
92150
921501435
ref: 92150
BOLT
€ 2.50
92150A
921501802
ref: 92150A
BOLT,5X16
€ 3.00
92151
921511877
ref: 92151
BOLT,FLANGED,8X40
€ 3.00
92151A
921511878
ref: 92151A
BOLT,FLANGED,8X35
€ 2.00
92161
921611305
ref: 92161
DAMPER
€ 14.50
92171
921711572
ref: 92171
CLAMP,HOSE
€ 2.50
92200
922001615
ref: 92200
WASHER
€ 9.00
92200A
922001640
ref: 92200A
WASHER
€ 8.00
92210
922101379
ref: 92210
NUT
€ 8.50
