FRONT FORK
KX125-L2 2000 EUROPE AS

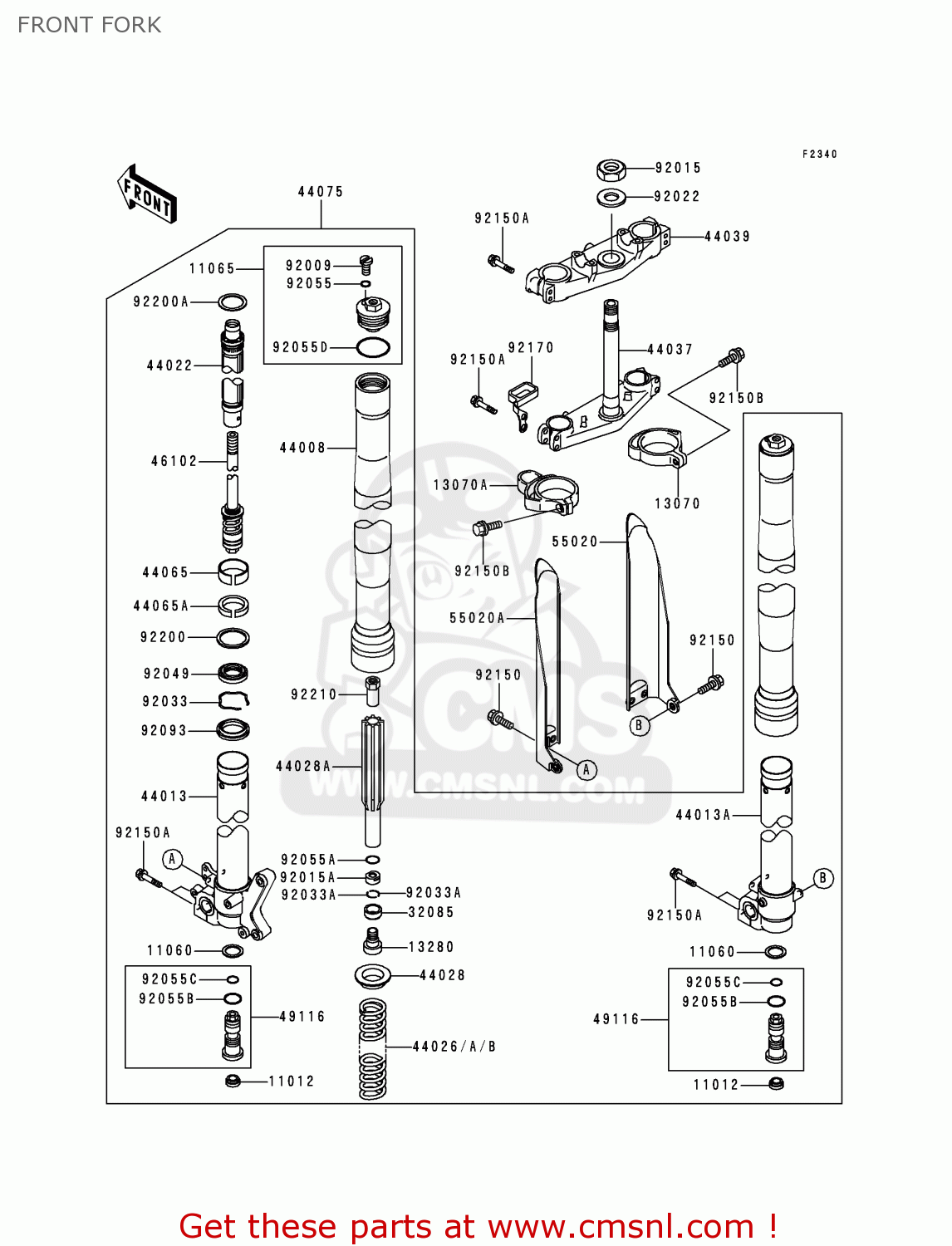

Front fork diagram KX125-L2 2000 EUROPE AS
FRONT FORK KX125-L2 2000 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
11012
110121692
ref: 11012
CAP
€ 4.00
11060
110601707
ref: 11060
GASKET (NAS)
€ 3.00
11065
110651122
ref: 11065
CAP
€ 81.00
13070
130701290RZ
ref: 13070
GUIDE,PROTECTOR,RH,WH
€ 20.00
13070A
130701329RZ
ref: 13070A
GUIDE,PROTECTOR,LH,WH
€ 14.50
13280
132801127
ref: 13280
HOLDER
€ 12.50
32085
320851323
ref: 32085
STOPPER
€ 10.50
44008
44008104914
ref: 44008
PIPE-FORK OUTER,A.N.G
€ 524.00
44013
440131475
ref: 44013
PIPE-FORK INNER,LH
€ 281.50
44013A
440131476
ref: 44013A
PIPE-FORK INNER,RH
€ 281.50
44022
440221335
ref: 44022
CYLINDER-FORK
€ 447.00
44026
440261599
ref: 44026
SPRING-FRONT FORK,K=0
€ 79.50
44026A
440261707
ref: 44026A
SPRING-FRONT FORK
€ 60.00
44026B
440261712
ref: 44026B
SPRING-FRONT FORK,K=0
€ 71.50
44028
440281097
ref: 44028
GUIDE-FORK SPRING
€ 10.50
44028A
440281102
ref: 44028A
GUIDE-FORK SPRING
€ 30.50
44037
440371371
ref: 44037
HOLDER-FORK UNDER
€ 354.00
44039
440391292
ref: 44039
HOLDER-FORK UPPER
€ 226.00
44065
440651129
ref: 44065
BUSHING-FRONT FORK
€ 14.00
44065A
440651130
ref: 44065A
BUSHING-FRONT FORK
€ 13.50
44075
44075110614
ref: 44075
DAMPER-SET-FORK,A.N.G
€ 2,479.50
46102
461021446
ref: 46102
ROD,INNER
€ 736.50
49116
491161178
ref: 49116
VALVE-ASSY,FORK
€ 157.50
55020
550201493RZ
ref: 55020
GUARD,FORK,RH,WHITE
€ 44.50
55020A
550201554RZ
ref: 55020A
GUARD,FORK,LH,WHITE
€ 44.50
92009
920091884
ref: 92009
SCREW
€ 4.50
92015
920151057
ref: 92015
NUT,24MM
€ 10.50
92015A
920151805
ref: 92015A
NUT
€ 14.50
92022
92022250
ref: 92022
WASHER,PLAIN
€ 3.00
92033
920331264
ref: 92033
RING-SNAP
€ 4.00
92033A
920331271
ref: 92033A
RING-SNAP
€ 3.50
92049
920491504
ref: 92049
SEAL-OIL
€ 16.50
92055
920551441
ref: 92055
RING-O
€ 2.50
92055A
920551442
ref: 92055A
RING-O
€ 4.50
92055B
920551547
ref: 92055B
RING-O,FORK VALVE
€ 2.50
92055C
920551548
ref: 92055C
RING-O,FORK VALVE
€ 2.00
92055D
920551549
ref: 92055D
RING-O
€ 6.00
92093
920931525
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.50
92150
921501435
ref: 92150
BOLT
€ 2.50
92150A
921501516
ref: 92150A
BOLT, FLANGED 8X40
€ 9.50
92150B
921501802
ref: 92150B
BOLT,5X16
€ 3.00
92170
921701604
ref: 92170
CLAMP,HOSE
€ 17.00
92200
922001006
ref: 92200
WASHER
€ 8.00
92200A
922001514
ref: 92200A
WASHER
€ 7.50
92210
922101177
ref: 92210
NUT
€ 14.00
