CRANKCASE
KX125-L1 1999 USA CANADA

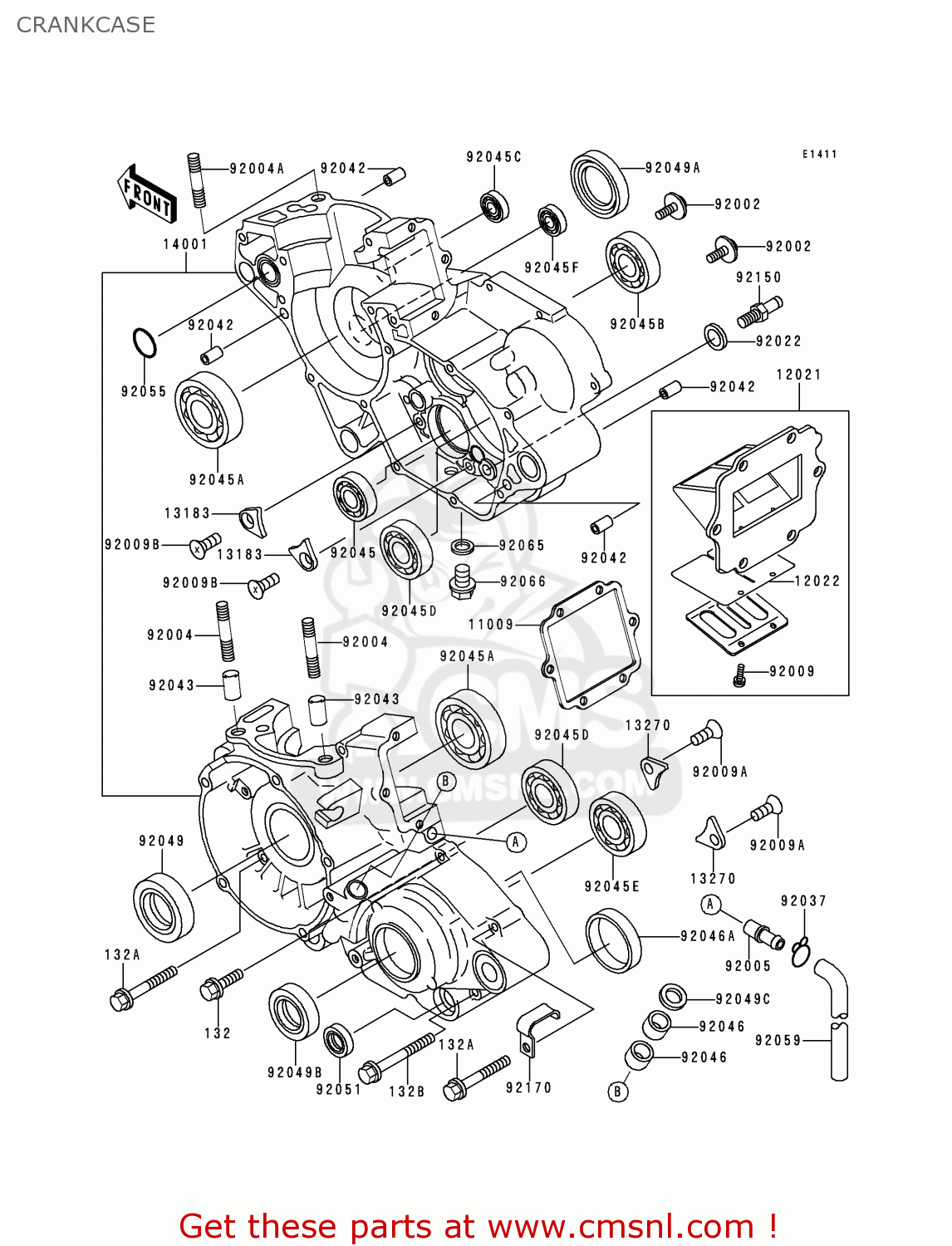

Crankcase diagram KX125-L1 1999 USA CANADA
CRANKCASE KX125-L1 1999 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0640
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132G0675
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
11009
110091941
ref: 11009
GASKET,REED VALVE (NAS)
€ 6.00
12021
120211116
ref: 12021
VALVE-ASSY-REED
€ 81.00
12022
120221080
ref: 12022
VALVE-REED
€ 46.50
13183
131831182
ref: 13183
PLATE
€ 3.00
13270
132701638
ref: 13270
PLATE
€ 2.50
14001
140011248
ref: 14001
SET-CRANKCASE
€ 577.00
92002
920021659
ref: 92002
BOLT
€ 3.00
92004
920041251
ref: 92004
STUD,8X35
€ 3.00
92004A
920041252
ref: 92004A
STUD,8X28.5
€ 3.50
92005
920051127
ref: 92005
FITTING,BREATHER
€ 13.00
92009
920091371
ref: 92009
SCREW,3X6
€ 2.50
92009A
920091708
ref: 92009A
SCREW,6X8
€ 1.50
92009B
920091862
ref: 92009B
SCREW,6X14
€ 1.50
92022
920221415
ref: 92022
WASHER,10.2X18X1.0,SK
€ 3.00
92037
920371610
ref: 92037
CLAMP
€ 1.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
€ 0.50
92045
920451058
ref: 92045
BEARING-BALL,6905Z
€ 36.50
92045A
920451209
ref: 92045A
BEARING-BALL
€ 32.50
92045B
920451298
ref: 92045B
BEARING-BALL,6204X15C
€ 23.00
92045C
920451305
ref: 92045C
BEARING-BALL,608MC3
€ 11.50
92045D
920451334
ref: 92045D
BEARING-BALL,SC03A53C
€ 24.50
92045E
920451335
ref: 92045E
BEARING-BALL,SX04A81C
€ 66.00
92045F
920451345
ref: 92045F
BEARING-BALL,626BUMC3
€ 11.00
92046
920461160
ref: 92046
BEARING-NEEDLE,HK1010
€ 14.00
92046A
920461221
ref: 92046A
BEARING-NEEDLE
€ 30.00
92049
920491300
ref: 92049
SEAL-OIL
€ 10.50
92049A
920491301
ref: 92049A
SEAL-OIL
€ 13.50
92049B
920491413
ref: 92049B
SEAL-OIL
€ 7.00
92049C
920491414
ref: 92049C
SEAL-OIL
€ 3.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055086
ref: 92055
RING-O
€ 2.50
92059
920591946
ref: 92059
TUBE,6X9X420
€ 9.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661437
ref: 92066
PLUG,DRAIN
€ 4.00
92150
921501803
ref: 92150
BOLT,RETURN SPRING
€ 6.50
92170
921701555
ref: 92170
CLAMP
€ 4.50
