CARBURETOR
KX125-K4 1997 USA CANADA

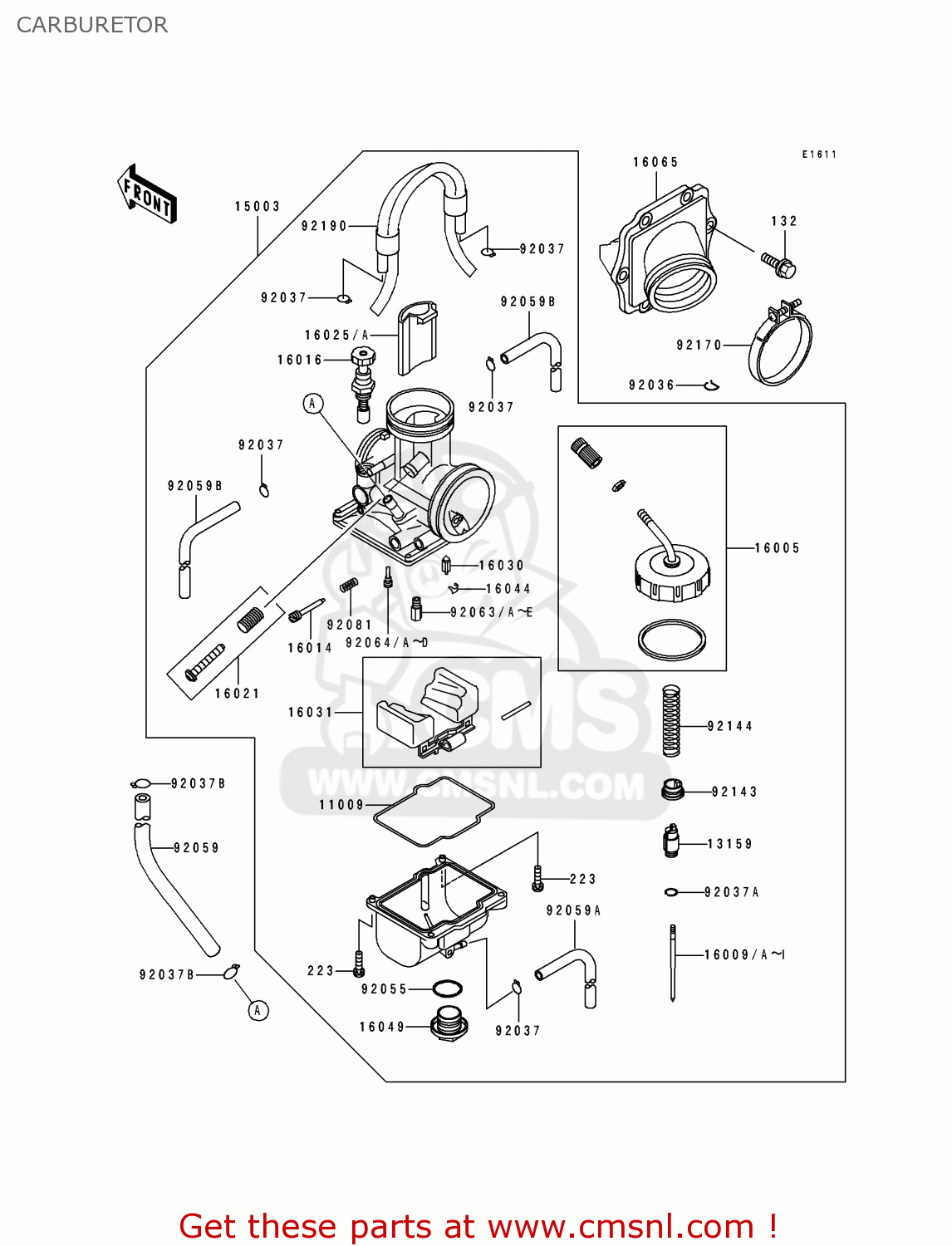

Carburetor diagram KX125-K4 1997 USA CANADA
CARBURETOR KX125-K4 1997 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091716
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
13159
131591063
ref: 13159
CONNECTOR,THROTTLE CA
€ 13.50
15003
150031275
ref: 15003
CARBURETOR ASSEMBLY
€ 253.00
16005
160051071
ref: 16005
TOP-CHAMBER
€ 39.00
16009
160091835
ref: 16009
NEEDLE-JET,N2DJ
€ 19.00
16009A
160091836
ref: 16009A
NEEDLE-JET,N2DK
€ 22.50
16009B
160091837
ref: 16009B
NEEDLE-JET,N2DL
€ 20.00
16009C
160091840
ref: 16009C
NEEDLE-JET,N2EJ
€ 19.00
16009D
160091841
ref: 16009D
NEEDLE-JET,N2EK
€ 23.00
16009E
160091842
ref: 16009E
NEEDLE-JET,N2EL
€ 20.00
16009F
160091876
ref: 16009F
NEEDLE-JET,N2DH
€ 20.00
16009G
160091877
ref: 16009G
NEEDLE-JET,N2DW
€ 20.50
16009H
160091878
ref: 16009H
NEEDLE-JET,N2EH
€ 20.50
16009I
160091879
ref: 16009I
NEEDLE-JET,N2EW
€ 20.50
16014
160141058
ref: 16014
SCREW-PILOT AIR
€ 14.00
16016
160161085
ref: 16016
PLUNGER
€ 30.00
16021
160211198
ref: 16021
SCREW-THROTTLE STOP
€ 14.00
16025
160251199
ref: 16025
VALVE-THROTTLE,CA 5
€ 109.00
16025A
160251200
ref: 16025A
VALVE-THROTTLE,CA 6
€ 103.50
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311084
ref: 16031
FLOAT
€ 51.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160651341
ref: 16065
HOLDER-CARBURETOR
€ 70.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371396
ref: 92037
CLAMP,TUBE
€ 3.50
92037A
920371401
ref: 92037A
CLAMP,JET NEEDLE
€ 2.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92055
920551167
ref: 92055
RING-O,MAIN JET COVER
€ 6.50
92059
920591393
ref: 92059
TUBE,5.3X10.5X130
€ 14.00
92059A
920591897
ref: 92059A
TUBE,3.5X6.5X330
€ 7.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
92059B
920591898
ref: 92059B
TUBE,4X7X480
€ 10.00
92063
920631366
ref: 92063
JET-MAIN,#155
€ 10.00
92063A
920631367
ref: 92063A
JET-MAIN,#158
€ 10.00
92063B
920631368
ref: 92063B
JET-MAIN,#160
€ 10.00
92063C
920631369
ref: 92063C
JET-MAIN,#162
€ 9.50
92063D
920631370
ref: 92063D
JET-MAIN,#165
€ 9.50
92063E
920631372
ref: 92063E
JET-MAIN,#170
€ 9.50
92064
920641138
ref: 92064
JET-PILOT,#35
€ 11.50
92064A
920641139
ref: 92064A
JET-PILOT,#38
€ 11.50
92064B
920641140
ref: 92064B
JET-PILOT,#40
€ 11.50
92064C
920641141
ref: 92064C
JET-PILOT,#42
€ 11.50
92064D
920641142
ref: 92064D
JET-PILOT
€ 11.50
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92143
921431201
ref: 92143
COLLAR,THROTTLE VALVE
€ 15.00
92144
921441284
ref: 92144
SPRING,THROTTLE
€ 12.50
92170
921701686
ref: 92170
CLAMP
€ 9.00
92190
921901609
ref: 92190
TUBE,4X7X580
€ 10.00
