FRONT FORK
KX125-K3 1996 EUROPE FR AS

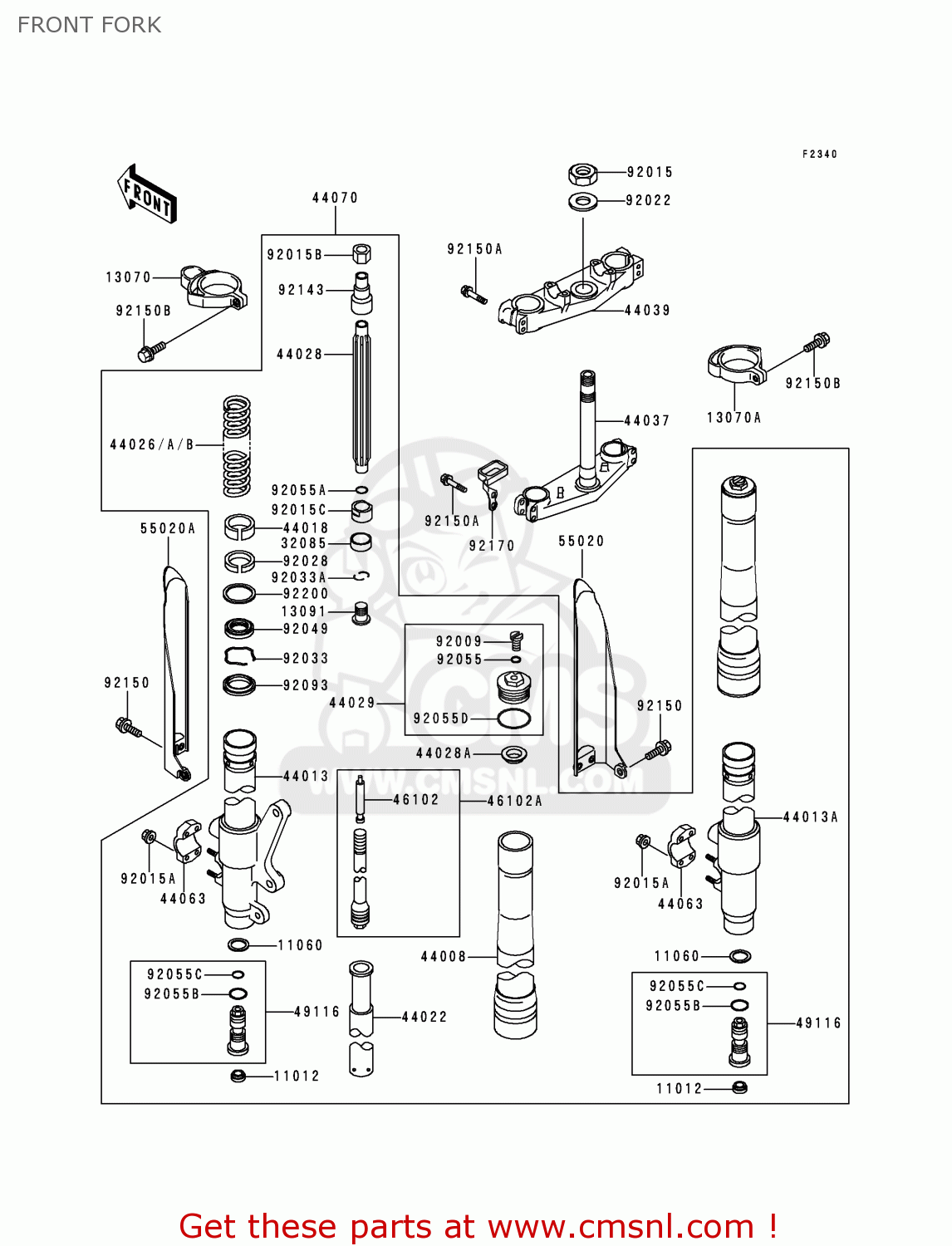

Front fork diagram KX125-K3 1996 EUROPE FR AS
FRONT FORK KX125-K3 1996 EUROPE FR AS
×
prices are in EUR
ref
part #
description
quantity
11012
110121692
ref: 11012
CAP
€ 4.00
11060
110601707
ref: 11060
GASKET (NAS)
€ 3.00
13070
130701289RE
ref: 13070
GUIDE,PROTECTOR,LH,J.
€ 10.00
13070A
130701290RE
ref: 13070A
GUIDE,PROTECTOR,RH,J.
€ 18.00
13091
130911651
ref: 13091
HOLDER
€ 18.00
32085
320851323
ref: 32085
STOPPER
€ 10.50
44008
44008103714
ref: 44008
PIPE-FORK OUTER,A.N.G
€ 816.50
44013
440131413
ref: 44013
PIPE-FORK INNER,LH
€ 312.00
44013A
440131414
ref: 44013A
PIPE-FORK INNER,RH
€ 312.00
44018
440181059
ref: 44018
PISTON-FORK,INNER PIP
€ 17.50
44022
440221309
ref: 44022
CYLINDER-FORK
€ 256.50
44026
440261588
ref: 44026
SPRING-FRONT FORK,K=0
€ 47.00
44026A
440261596
ref: 44026A
SPRING-FRONT FORK,K=0
€ 64.50
44026B
440261597
ref: 44026B
SPRING-FRONT FORK,K=0
€ 57.00
44028
440281096
ref: 44028
GUIDE-FORK SPRING
€ 32.50
44028A
440281097
ref: 44028A
GUIDE-FORK SPRING
€ 10.50
44029
440291159
ref: 44029
SEAT-FORK SPRING
€ 90.50
44037
440371338
ref: 44037
HOLDER-FORK UNDER
€ 411.50
44039
440391263
ref: 44039
HOLDER-FORK UPPER
€ 153.50
44063
440631060
ref: 44063
HOLDER-FRONT AXLE
€ 40.00
44070
440701417RE
ref: 44070
DAMPER-ASSY,FORK,J.S.
€ 2,081.50
46102
461021340
ref: 46102
ROD,FORK,INNER
€ 17.00
46102A
461021387
ref: 46102A
ROD,FORK,ASSY
€ 430.50
49116
491161138
ref: 49116
VALVE-ASSY,FORK
€ 125.50
55020
550201493RE
ref: 55020
GUARD,FORK,RH,J.S.VIO
€ 37.00
55020A
550201554RE
ref: 55020A
GUARD,FORK,LH,J.S.VIO
€ 38.00
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151057
ref: 92015
NUT,24MM
€ 10.50
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92015B
920151905
ref: 92015B
NUT
€ 13.50
92015C
920151945
ref: 92015C
NUT
€ 8.00
92022
92022250
ref: 92022
WASHER,PLAIN
€ 3.00
92028
920281755
ref: 92028
BUSHING
€ 17.00
92033
920331264
ref: 92033
RING-SNAP
€ 4.00
92033A
920331271
ref: 92033A
RING-SNAP
€ 3.50
92049
920491440
ref: 92049
SEAL-OIL,FORK OUTER T
€ 22.00
92055
920551441
ref: 92055
RING-O
€ 2.50
92055A
920551442
ref: 92055A
RING-O
€ 4.50
92055B
920551547
ref: 92055B
RING-O,FORK VALVE
€ 2.50
92055C
920551548
ref: 92055C
RING-O,FORK VALVE
€ 2.00
92055D
920551549
ref: 92055D
RING-O
€ 6.00
92093
920931392
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.00
92143
921431793
ref: 92143
COLLAR,FORK
€ 15.00
92150
921501435
ref: 92150
BOLT
€ 2.50
92150A
921501516
ref: 92150A
BOLT, FLANGED 8X40
€ 9.50
92150B
921501802
ref: 92150B
BOLT,5X16
€ 3.00
92170
921701604
ref: 92170
CLAMP,HOSE
€ 17.00
92200
922001006
ref: 92200
WASHER
€ 8.00
