CRANKSHAFT/PISTON(S)

KX125-K2 1995 EUROPE AS

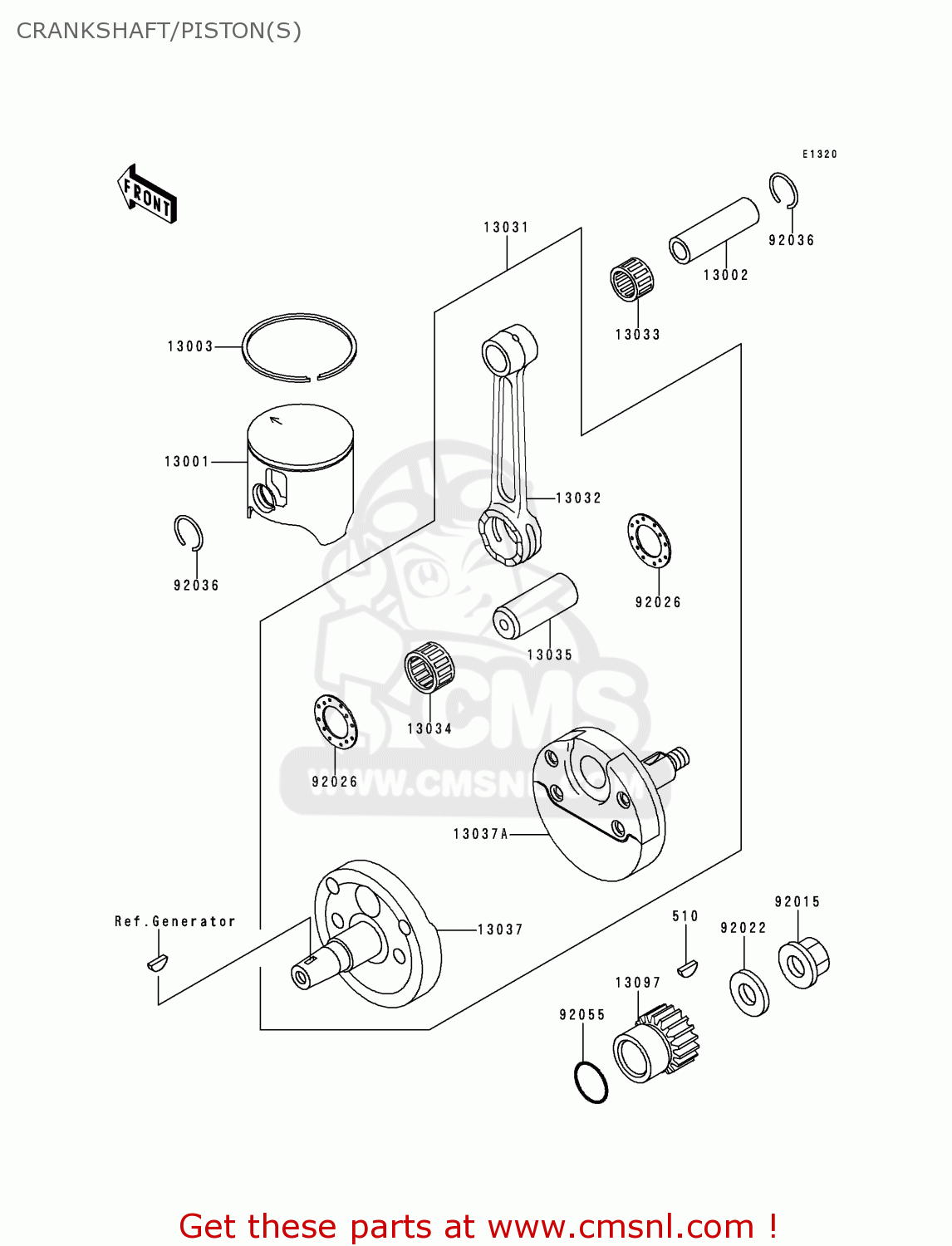

Crankshaft/piston(s) diagram KX125-K2 1995 EUROPE AS

CRANKSHAFT/PISTON(S) KX125-K2 1995 EUROPE AS
CRANKSHAFT/PISTON(S) KX125-K2 1995 EUROPE AS
CRANKSHAFT/PISTON(S) KX125-K2 1995 EUROPE AS
prices are in EUR
ref
part #
description
quantity
510
510A5100
ref: 510
KEY-WOODRUFF
510A5100
€ 1.50
13001
130011429
ref: 13001
PISTON-ENGINE
130011429
€ 47.00
13002
130021099
ref: 13002
PIN-PISTON
130021099
€ 15.50
13003
130031356
ref: 13003
RING-PISTON TOP
130031356
€ 26.50
13031
130311385
ref: 13031
CRANKSHAFT-COMP
€ 327.50
13032
130321196
ref: 13032
ROD-CONNECTING
130321196
€ 50.00
13033
130331057
ref: 13033
BEARING-SMALL END
130331057
€ 10.50
13034
130341099
ref: 13034
BEARING-BIG END,B4
130341099
€ 48.50
13035
130351010
ref: 13035
PIN-CRANK
130351010
€ 33.00
13037
130371482
ref: 13037
CRANKSHAFT,LH
€ 165.50
13037A
130371484
ref: 13037A
CRANKSHAFT,RH
€ 186.00
13097
130971311
ref: 13097
GEAR-PRIMARY SPUR,20T
€ 52.00
92015
920151156
ref: 92015
NUT,12MM
920151156
€ 4.50
92022
920221831
ref: 92022
WASHER
920221831
€ 3.50
92026
920261136
ref: 92026
SPACER,22.2X37X1.0
920261136
€ 5.50
92036
92036005
ref: 92036
CIRCLIP-PISTON PIN
92036005
€ 2.50
92055
92055086
ref: 92055
RING-O
92055086
€ 2.50
