CARBURETOR
KX125-K1 EUROPE AS

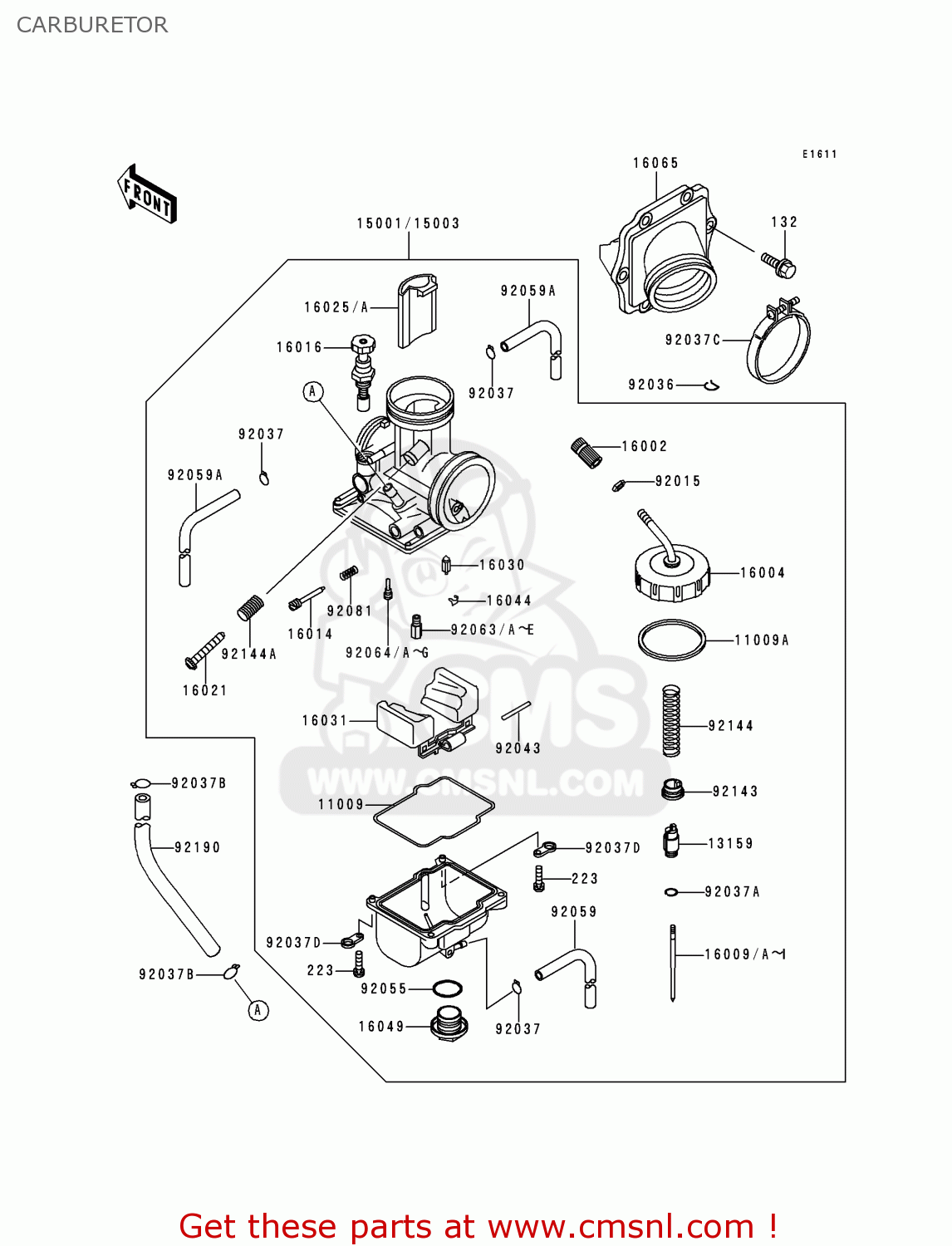

Carburetor diagram KX125-K1 EUROPE AS
CARBURETOR KX125-K1 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
11009
110091716
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
11009A
110091717
ref: 11009A
GASKET,CHAMBER CAP (NAS)
€ 8.00
13159
131591063
ref: 13159
CONNECTOR,THROTTLE CA
€ 13.50
15001
150011885
ref: 15001
AS
CARBURETOR-ASSY
€ 335.50
15003
150031070
ref: 15003
EU
CARBURETOR-ASSY
€ 335.50
16002
160021057
ref: 16002
ADJUSTER-CABLE
€ 13.00
16004
160041071
ref: 16004
CAP-CHAMBER
€ 30.50
16009
160091767
ref: 16009
NEEDLE-JET,N1JK
€ 19.50
16009A
160091768
ref: 16009A
NEEDLE-JET,N1JL
€ 21.00
16009B
160091769
ref: 16009B
NEEDLE-JET,N1JM
€ 20.00
16009C
160091770
ref: 16009C
NEEDLE-JET,N1JN
€ 21.00
16009D
160091772
ref: 16009D
NEEDLE-JET,N1KK
€ 19.00
16009E
160091773
ref: 16009E
NEEDLE-JET,N1KL
€ 21.00
16009F
160091774
ref: 16009F
NEEDLE-JET,N1KM
€ 21.00
16009G
160091775
ref: 16009G
NEEDLE-JET,N1KN
€ 19.00
16009H
160091812
ref: 16009H
NEEDLE-JET,N1JO
€ 19.00
16009I
160091813
ref: 16009I
NEEDLE-JET,N1KO
€ 19.00
16014
160141058
ref: 16014
SCREW-PILOT AIR
€ 14.00
16016
160161085
ref: 16016
PLUNGER
€ 30.00
16021
160211161
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251193
ref: 16025
VALVE-THROTTLE,CA 5
€ 107.00
16025A
160251196
ref: 16025A
VALVE-THROTTLE,CA 6
€ 103.50
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311067
ref: 16031
FLOAT
€ 43.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160651293
ref: 16065
HOLDER-CARBURETOR
€ 60.50
92015
920151772
ref: 92015
NUT,CABLE ADJUST LOCK
€ 3.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371396
ref: 92037
CLAMP,TUBE
€ 3.50
92037A
920371401
ref: 92037A
CLAMP,JET NEEDLE
€ 2.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371486
ref: 92037C
CLAMP,55MM
€ 5.50
92037D
920371969
ref: 92037D
CLAMP,HOSE
€ 5.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551167
ref: 92055
RING-O,MAIN JET COVER
€ 6.50
92059
920591897
ref: 92059
TUBE,3.5X6.5X330
€ 7.50
92059A
920591898
ref: 92059A
TUBE,4X7X480
€ 10.00
92063
920631368
ref: 92063
JET-MAIN,#160
€ 10.00
92063A
920631369
ref: 92063A
JET-MAIN,#162
€ 9.50
92063B
920631370
ref: 92063B
JET-MAIN,#165
€ 9.50
92063C
920631371
ref: 92063C
JET-MAIN,#168
€ 10.00
92063D
920631372
ref: 92063D
JET-MAIN,#170
€ 9.50
92063E
920631374
ref: 92063E
JET-MAIN,#175
€ 9.50
92064
920641130
ref: 92064
JET-PILOT,#52
€ 11.00
92064A
920641141
ref: 92064A
EU
JET-PILOT,#42
€ 11.50
92064B
920641142
ref: 92064B
JET-PILOT
€ 11.50
92064C
920641143
ref: 92064C
EU
JET-PILOT,#48
€ 11.50
92064D
920641143
ref: 92064D
AS
JET-PILOT,#48
€ 11.50
92064E
920641144
ref: 92064E
AS
JET-PILOT
€ 11.00
92064F
920641144
ref: 92064F
EU
JET-PILOT
€ 11.00
92064G
920641145
ref: 92064G
AS
JET-PILOT,#55
€ 11.50
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92143
921431201
ref: 92143
COLLAR,THROTTLE VALVE
€ 15.00
92144
921441305
ref: 92144
SPRING,THROTTLE VALVE
€ 12.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
92144A
921441782
ref: 92144A
SPRING,THROTTLE STOP
€ 11.00
92190
921901528
ref: 92190
TUBE,5.3X10.5X150
€ 3.00
