CRANKCASE

KX125-J2 1993 EUROPE AS

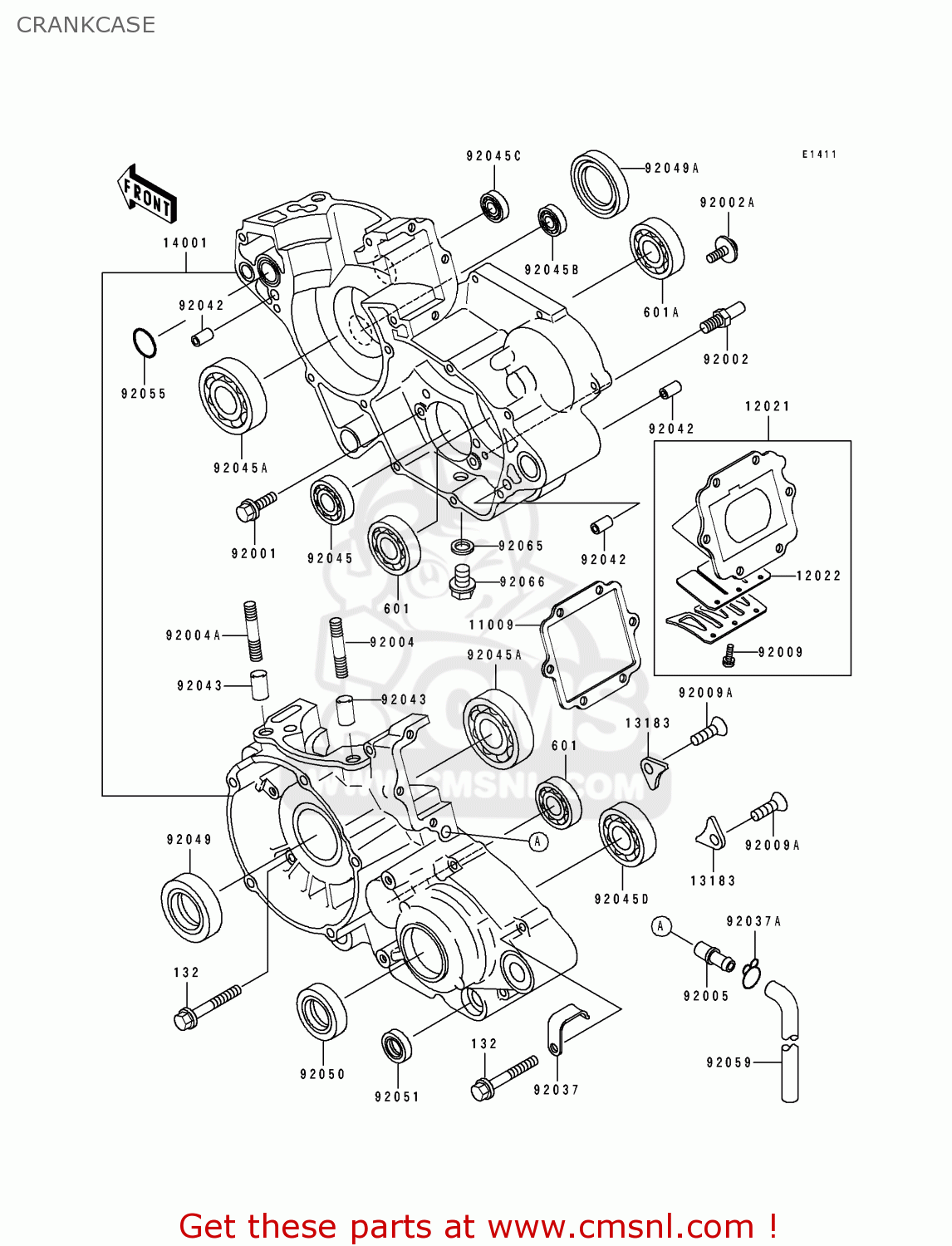

Crankcase diagram KX125-J2 1993 EUROPE AS

CRANKCASE KX125-J2 1993 EUROPE AS
CRANKCASE KX125-J2 1993 EUROPE AS
CRANKCASE KX125-J2 1993 EUROPE AS
prices are in EUR
ref
part #
description
quantity
132
132G0640
ref: 132
BOLT-FLANGED-SMALL
132G0640
€ 2.50
601
601B6202
ref: 601
BEARING-BALL,#6202C3
601B6202
€ 14.50
601A
601B6303
ref: 601A
BEARING-BALL,#6303C3
601B6303
€ 24.00
11009
110091941
ref: 11009
GASKET,REED VALVE (NAS)
110091941
€ 6.00
12021
120211095
ref: 12021
VALVE-ASSY-REED
120211095
€ 151.00
12022
120221071
ref: 12022
VALVE-REED
120221071
€ 52.50
13183
131831182
ref: 13183
PLATE
131831182
€ 3.00
14001
140015313
ref: 14001
SET-CRANKCASE
€ 589.50
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
920011829
€ 2.50
92002
920021601
ref: 92002
BOLT,8X15
920021601
€ 5.00
92002A
920021659
ref: 92002A
BOLT
920021659
€ 3.00
92004
920041210
ref: 92004
STUD
€ 3.00
92004A
920041211
ref: 92004A
STUD
€ 2.50
92005
920051127
ref: 92005
FITTING,BREATHER
920051127
€ 13.00
92009
920091014
ref: 92009
SCREW,REED VALVE
920091014
€ 2.00
92009A
920091563
ref: 92009A
SCREW,6X10
920091563
€ 2.50
92037
920371318
ref: 92037
CLAMP,HARNESS
920371318
€ 4.50
92037A
920371610
ref: 92037A
CLAMP
920371610
€ 1.50
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92045
92045036
ref: 92045
BEARING-BALL,#6905
92045036
€ 29.00
92045A
920451209
ref: 92045A
BEARING-BALL
920451209
€ 32.50
92045B
920451211
ref: 92045B
BEARING-BALL
920451211
€ 11.00
92045C
920451212
ref: 92045C
BEARING-BALL
920451212
€ 11.50
92045D
920451252
ref: 92045D
BEARING-BALL,SX04A29C
920451252
€ 14.50
92049
920491300
ref: 92049
SEAL-OIL
920491300
€ 10.50
92049A
920491301
ref: 92049A
SEAL-OIL
920491301
€ 13.50
92050
92050013
ref: 92050
OIL SEAL SC25376
92050013
€ 9.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
92055086
ref: 92055
RING-O
92055086
€ 2.50
92059
920591946
ref: 92059
TUBE,6X9X420
€ 9.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661388
ref: 92066
PLUG,DRAIN
920661388
€ 4.00
