HANDLEBAR
KX125-H2 1991 EUROPE UK AL AS

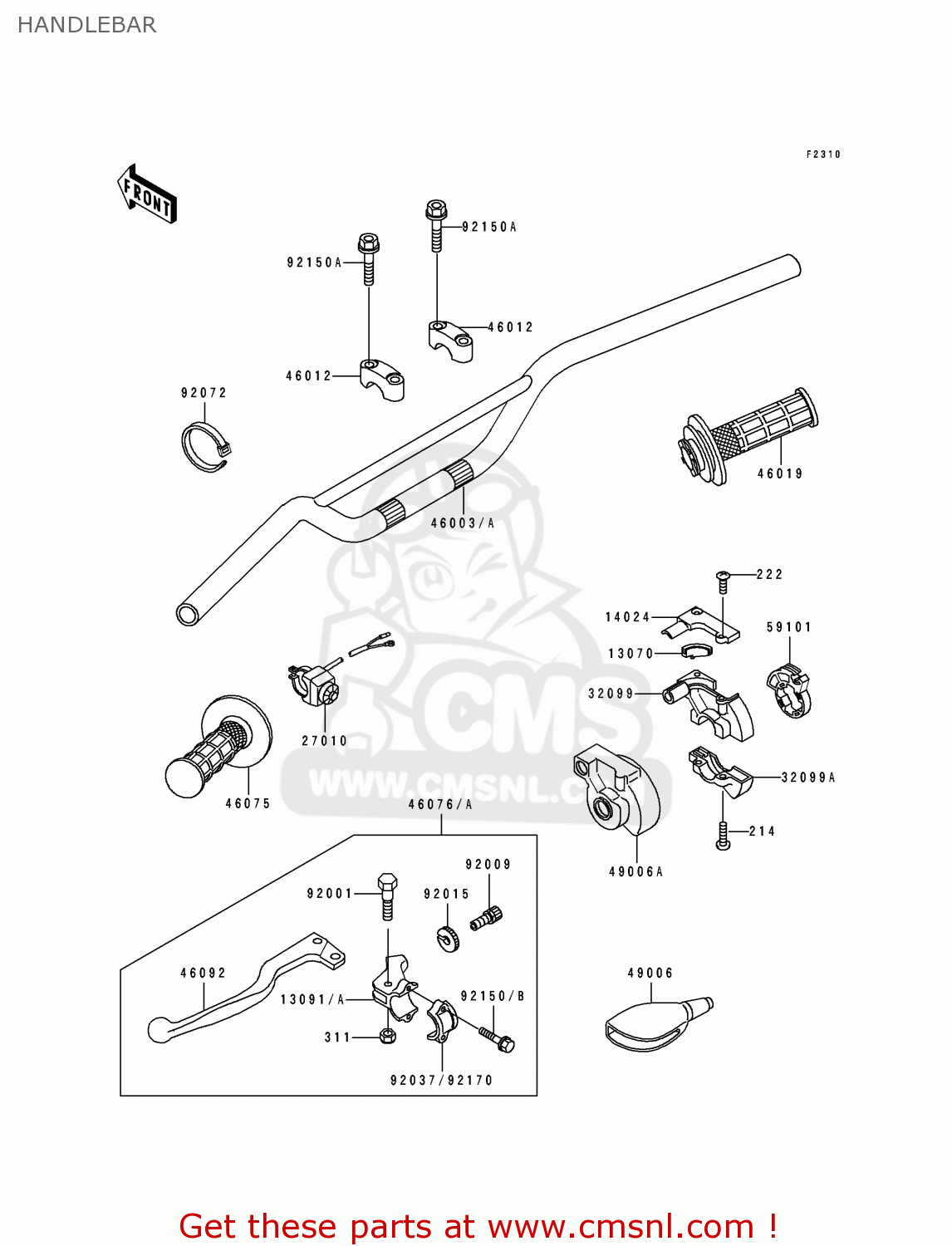

Handlebar diagram KX125-H2 1991 EUROPE UK AL AS
HANDLEBAR KX125-H2 1991 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
214
214C0518
ref: 214
SCREW-PAN+-
€ 2.00
222
222E0412
ref: 222
SCREW-CSK-RD-CROS
€ 2.50
311
311C0500
ref: 311
NUT-HEX
€ 0.50
13070
130701073
ref: 13070
GUIDE,THROTTLE PEACE
€ 4.00
13091A
130911728
ref: 13091A
HOLDER,CLUTCH LEVER
€ 38.50
14024
140251646
ref: 14024
COVER,THROTTLE CASE U
€ 6.50
27010
270101161
ref: 27010
SWITCH,ENGINE STOP
€ 38.00
32099
320991036
ref: 32099
CASE,THROTTLE UPP
€ 25.00
32099A
320991044
ref: 32099A
CASE,THROTTLE LWR
€ 13.50
46003
460031311
ref: 46003
ALAS
HANDLE
€ 64.50
46003A
460031312
ref: 46003A
EUUK
HANDLE
€ 64.00
46012
460121191
ref: 46012
HOLDER-HANDLE,UPP
€ 21.00
46019
460191054
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.50
46075
460751024
ref: 46075
GRIP,LH
€ 13.50
46076A
460761181
ref: 46076A
LEVER-ASSY-GRIP,CLUTC
€ 49.00
46092
460921165
ref: 46092
LEVER-GRIP,CLUTCH
€ 10.00
49006
490061017
ref: 49006
BOOTS,LEVER HOLDER
€ 13.00
49006A
490061097
ref: 49006A
BOOT,THROTTLE CASE
€ 12.00
59101
591011103
ref: 59101
REEL,THROTTLE
€ 8.00
92001
92007046
ref: 92001
BOLT,HEX HEAD,5X22
€ 4.50
92009
920091476
ref: 92009
SCREW,CABLE ADJUST
€ 13.00
92015
920151596
ref: 92015
NUT-LOCK
€ 6.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92150A
921501455
ref: 92150A
BOLT,FLANGED,8X30
€ 4.50
92150B
921501474
ref: 92150B
BOLT,LEVER HOLDER
€ 3.00
92170
921701226
ref: 92170
CLAMP
€ 18.50
