CYLINDER HEAD/CYLINDER
KX125-G1 1989 EUROPE UK AL

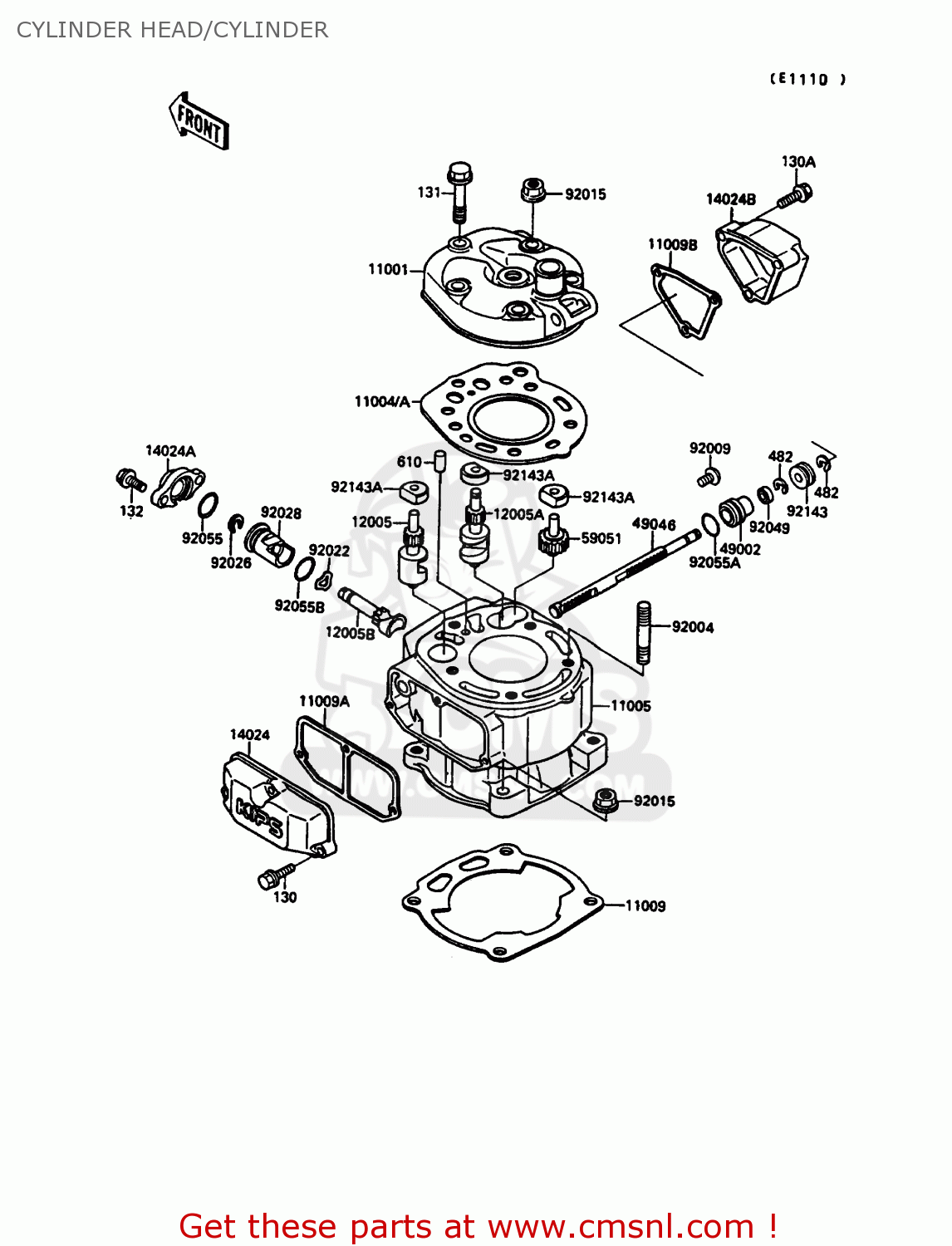

Cylinder head/cylinder diagram KX125-G1 1989 EUROPE UK AL
CYLINDER HEAD/CYLINDER KX125-G1 1989 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11001
110011290
ref: 11001
HEAD-CYLINDER
€ 144.50
11004
110041188
ref: 11004
GASKET-HEAD,T=1.0 (NAS)
€ 17.00
11004A
110041198
ref: 11004A
GASKET-HEAD,T=1.2 (MCA)
€ 13.00
11005
110051565
ref: 11005
CYLINDER-ENGINE
€ 553.50
11009
110091690
ref: 11009
GASKET,CYLINDER BASE (MCA)
€ 6.50
11009A
110091691
ref: 11009A
GASKET,LH,RESONATOR (MCA)
€ 3.50
11009B
110091692
ref: 11009B
GASKET,RH,GOVERNOR (MCA)
€ 4.00
12005
120051113
ref: 12005
VALVE-EXHAUST,LH
€ 44.00
12005A
120051114
ref: 12005A
VALVE-EXHAUST,RH
€ 43.00
12005B
120051128
ref: 12005B
VALVE-EXHAUST,CENTER
€ 39.00
14024
140241565
ref: 14024
COVER,RESONATOR
€ 22.50
14024A
140241708
ref: 14024A
COVER,CENTER VALVE
€ 8.50
14024B
140241724
ref: 14024B
COVER,GOVERNOR
€ 12.00
49002
490021083
ref: 49002
GUIDE-VALVE
€ 12.50
49046
490461062
ref: 49046
ROD-GOVERNOR
€ 51.00
59051
590511190
ref: 59051
GEAR-SPUR,IDLE
€ 23.50
92004
920041009
ref: 92004
STUD, 8X35
€ 4.00
92009
920091502
ref: 92009
SCREW
€ 2.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92022
920221978
ref: 92022
WASHER,WAVE
€ 4.00
92026
920261333
ref: 92026
SPACER
€ 2.50
92028
920281550
ref: 92028
BUSHING,MAIN VALVE
€ 23.00
92049
920491206
ref: 92049
SEAL-OIL,RSO-5.5 11 4
€ 7.50
92055
920551258
ref: 92055
RING-O,ID=16.8
€ 3.00
92055A
920551399
ref: 92055A
RING-O,14.5X1.5
€ 3.00
92055B
920551422
ref: 92055B
RING-O
€ 4.00
92143
921431056
ref: 92143
COLLAR
€ 6.50
92143A
921431147
ref: 92143A
COLLAR,VALVE
€ 9.00
130
130G0520
ref: 130
BOLT-FLANGED
€ 1.00
130A
130G0525
ref: 130A
BOLT-FLANGED
€ 0.50
131
131P0840
ref: 131
BOLT-FLANGED
€ 1.00
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
482
482J4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
