FRONT FORK
KX100-D5 KX100 2005 USA CANADA

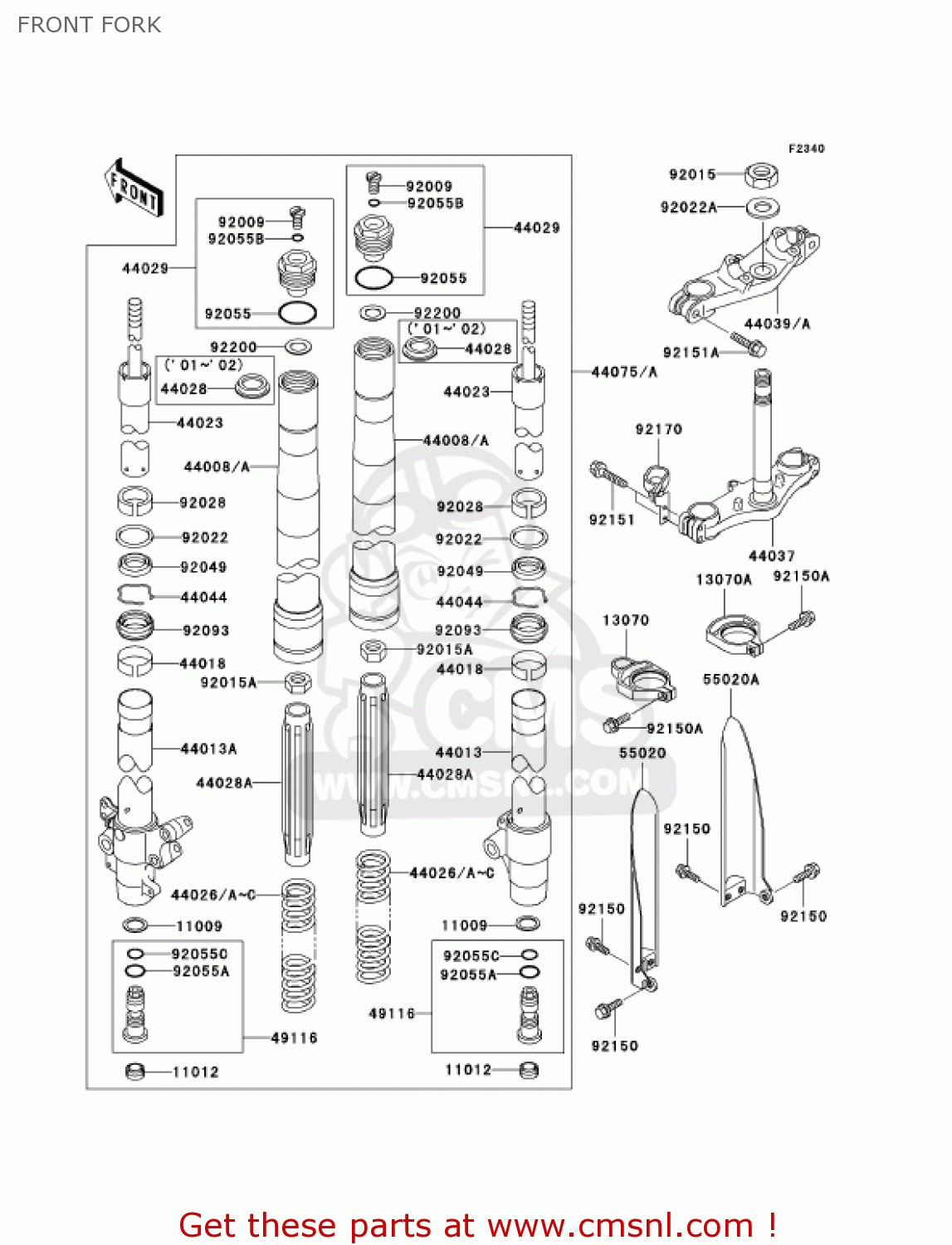

Front fork diagram KX100-D5 KX100 2005 USA CANADA
FRONT FORK KX100-D5 KX100 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121692
ref: 11012
CAP
€ 4.00
13070
130701310RZ
ref: 13070
GUIDE,PROTECTOR,LH,WH
€ 13.00
13070A
130701311RZ
ref: 13070A
GUIDE,PROTECTOR,RH,WH
€ 13.00
44008
440081041JS
ref: 44008
PIPE-FORK OUTER,BRONZ
€ 396.50
44013
440131442
ref: 44013
PIPE-FORK INNER,RH
€ 215.50
44013A
440131484
ref: 44013A
PIPE-FORK INNER,LH
€ 196.50
44018
440181058
ref: 44018
PISTON-FORK
€ 14.50
44023
440231119
ref: 44023
CYLINDER-SET-FORK
€ 294.50
44026
440261633
ref: 44026
(OPTION)
SPRING-FRONT FORK
€ 44.50
44026A
440261634
ref: 44026A
SPRING-FRONT FORK
€ 44.50
44026B
440261635
ref: 44026B
(OPTION)
SPRING-FRONT FORK
€ 44.50
44026C
440261671
ref: 44026C
(OPTION)
SPRING-FRONT FORK,K=0
€ 45.50
44028A
440281090
ref: 44028A
GUIDE-FORK SPRING
€ 30.00
44029
440291152
ref: 44029
SEAT-FORK SPRING
€ 50.50
44037
440371360
ref: 44037
HOLDER-FORK UNDER
€ 283.50
44039
440390023458A
ref: 44039
HOLDER-FORK UPPER,P.S
€ 79.50
44044
44044015
ref: 44044
CIRCLIP
€ 9.50
44075
440751131JS
ref: 44075
DAMPER-SET-FORK,BRONZ
€ 1,427.50
49116
491161153
ref: 49116
VALVE-ASSY,FORK
€ 132.00
55020
550201611RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 16.50
55020A
550201612RZ
ref: 55020A
GUARD,FORK,RH,WHITE
€ 16.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151653
ref: 92015
NUT,STEERING STEM,22M
€ 11.50
92015A
920151839
ref: 92015A
NUT
€ 13.50
92022
920221275
ref: 92022
WASHER,FRONT FORK
€ 4.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281656
ref: 92028
BUSHING
€ 11.00
92049
920491394
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.00
92055
920551123
ref: 92055
RING-O
€ 4.00
92055A
920551156
ref: 92055A
RING-O,REARSHOCK
€ 1.00
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551502
ref: 92055C
RING-O,FORK VALVE
€ 5.00
92093
920931426
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.50
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92150A
921501802
ref: 92150A
BOLT,5X16
€ 3.00
92151
921511877
ref: 92151
BOLT,FLANGED,8X40
€ 3.00
92151A
921511878
ref: 92151A
BOLT,FLANGED,8X35
€ 2.00
92170
921701810
ref: 92170
CLAMP
€ 7.00
92200
922001655
ref: 92200
WASHER
€ 3.50
