FRAME FITTINGS
KX100-D3 KX100 2003 USA CANADA

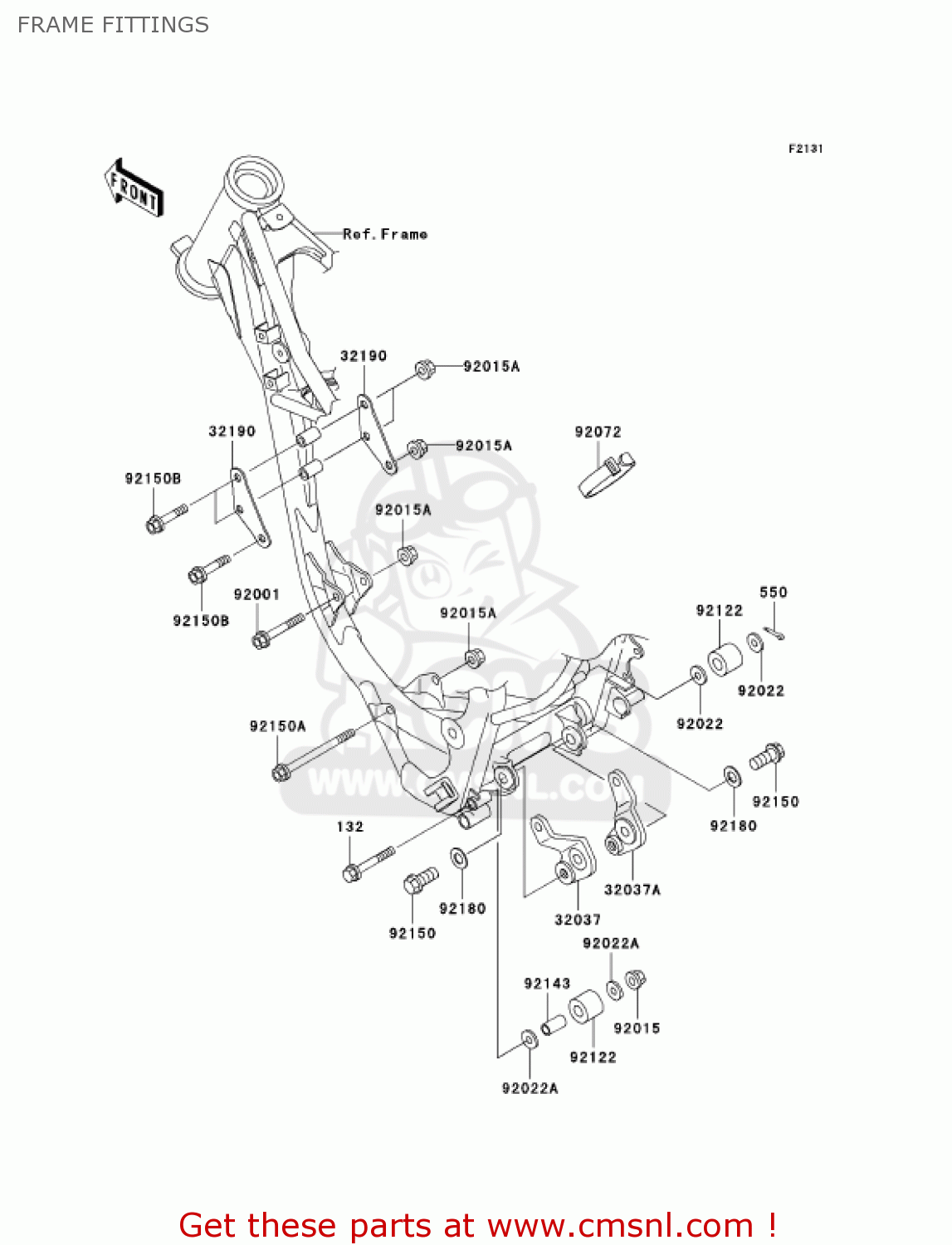

Frame fittings diagram KX100-D3 KX100 2003 USA CANADA
FRAME FITTINGS KX100-D3 KX100 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0860
ref: 132
BOLT-FLANGED-SMALL,8X
€ 3.00
550
550D2518
ref: 550
PIN,COTTER,2.5X18
€ 0.50
32037
320371552
ref: 32037
BRACKET-SHOCKABSORBER
€ 35.50
32037A
320371553
ref: 32037A
BRACKET-SHOCKABSORBER
€ 35.50
32190
321901119
ref: 32190
BRACKET-ENGINE,HEAD
€ 12.50
92001
920011006
ref: 92001
BOLT,HEX HEAD,8X63
€ 5.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151432
ref: 92015A
NUT,8MM
€ 4.50
92022
92022107
ref: 92022
WASHER
€ 2.00
92022A
920221561
ref: 92022A
WASHER,8.5X20X1.6
€ 2.50
92072
920721293
ref: 92072
BAND
€ 6.50
92122
921221213
ref: 92122
ROLLER,CHAIN GUIDE
€ 9.00
92143
921431432
ref: 92143
COLLAR,9.5X12.7X25
€ 4.50
92150
921501359
ref: 92150
BOLT,FLANGED,12X30
€ 5.00
92150A
921501482
ref: 92150A
BOLT
€ 6.50
92150B
921501487
ref: 92150B
BOLT
€ 4.50
92180
921801060
ref: 92180
SHIM,12.5X24X0.5
€ 2.50
