FENDERS

KX100-B7 1997 USA

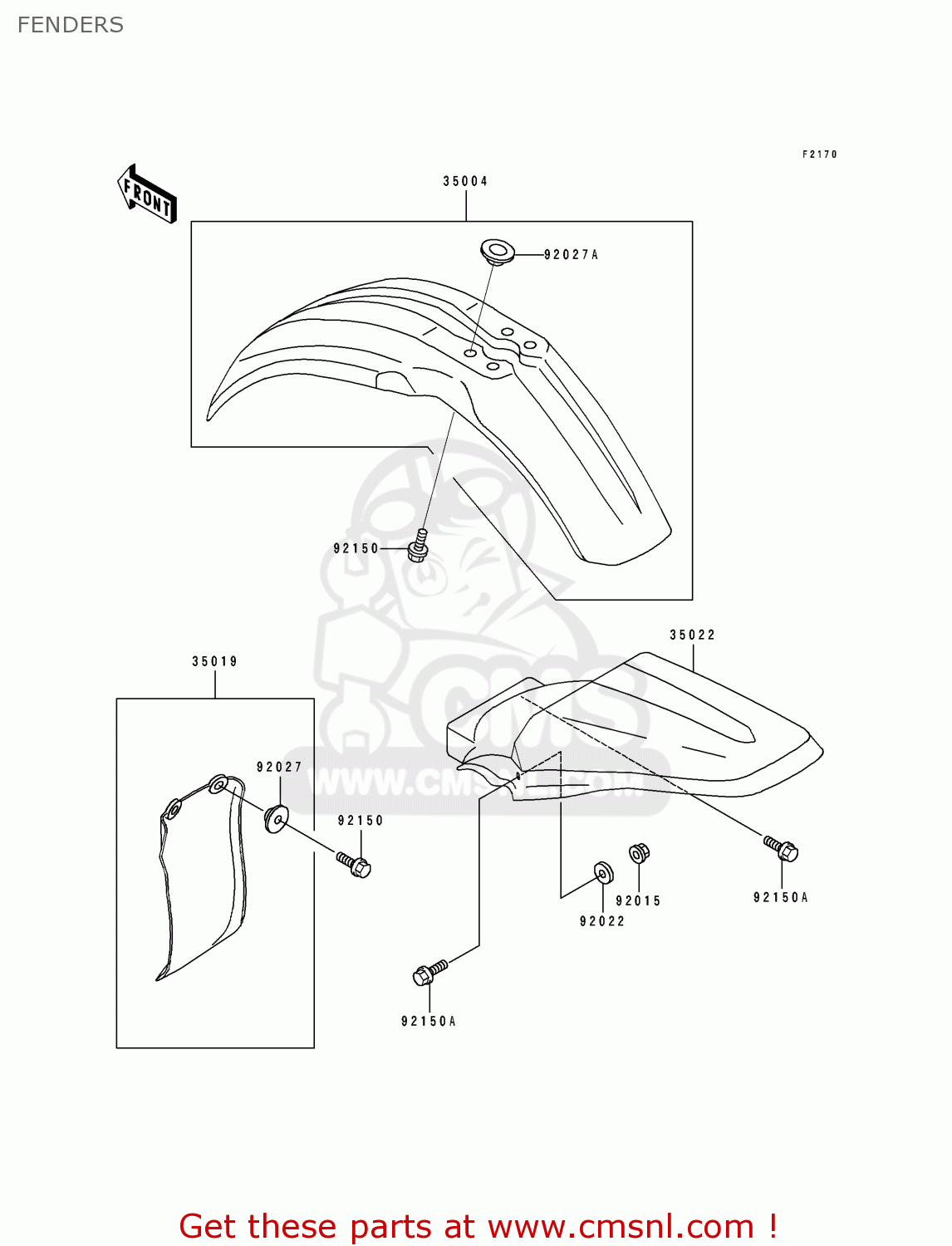

Fenders diagram KX100-B7 1997 USA

FENDERS KX100-B7 1997 USA

FENDERS KX100-B7 1997 USA

prices are in EUR

ref

part #

description

quantity

35004

3500412956W
ref: 35004

FENDER-FRONT,L.GREEN

€ 44.00

35019

350191212
ref: 35019

FLAP,REAR FENDER

€ 22.00

35022

3502212636W
ref: 35022

FENDER-COMP-REAR,L.GR

€ 43.50

92015

920151339
ref: 92015

NUT,LOCK,FLANGED,6MM

€ 1.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

920271757
ref: 92027

COLLAR

€ 3.00

92027A

920271936
ref: 92027A

COLLAR,FRONT FENDER

€ 4.00

92150

921501339
ref: 92150

BOLT,6X20

€ 2.50

92150A

921501481
ref: 92150A

BOLT,FLANGED,6X22

€ 2.50
