BRAKE PEDAL

KX100-B5 1995 USA

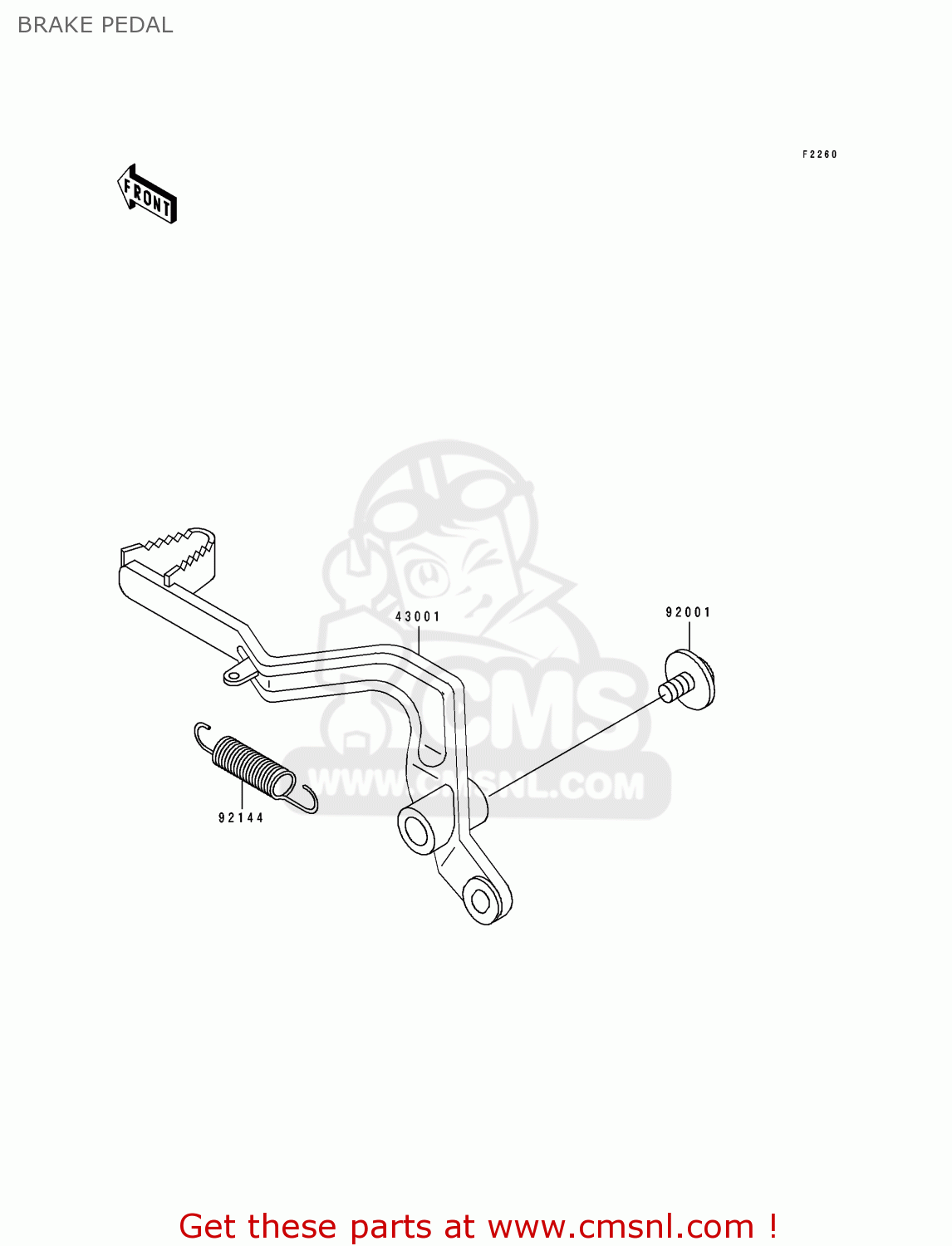

Brake pedal diagram KX100-B5 1995 USA

BRAKE PEDAL KX100-B5 1995 USA

BRAKE PEDAL KX100-B5 1995 USA

prices are in EUR

ref

part #

description

quantity

43001

430011301CE
ref: 43001

LEVER-BRAKE,PEDAL,SIL

€ 30.00

92001

920011034
ref: 92001

BOLT,HEX HEAD,6X10

€ 7.00

92144

921441047
ref: 92144

SPRING,BRAKE PEDAL RE

€ 4.50
