IGNITION SYSTEM

KX100-B5 1995 EUROPE AS

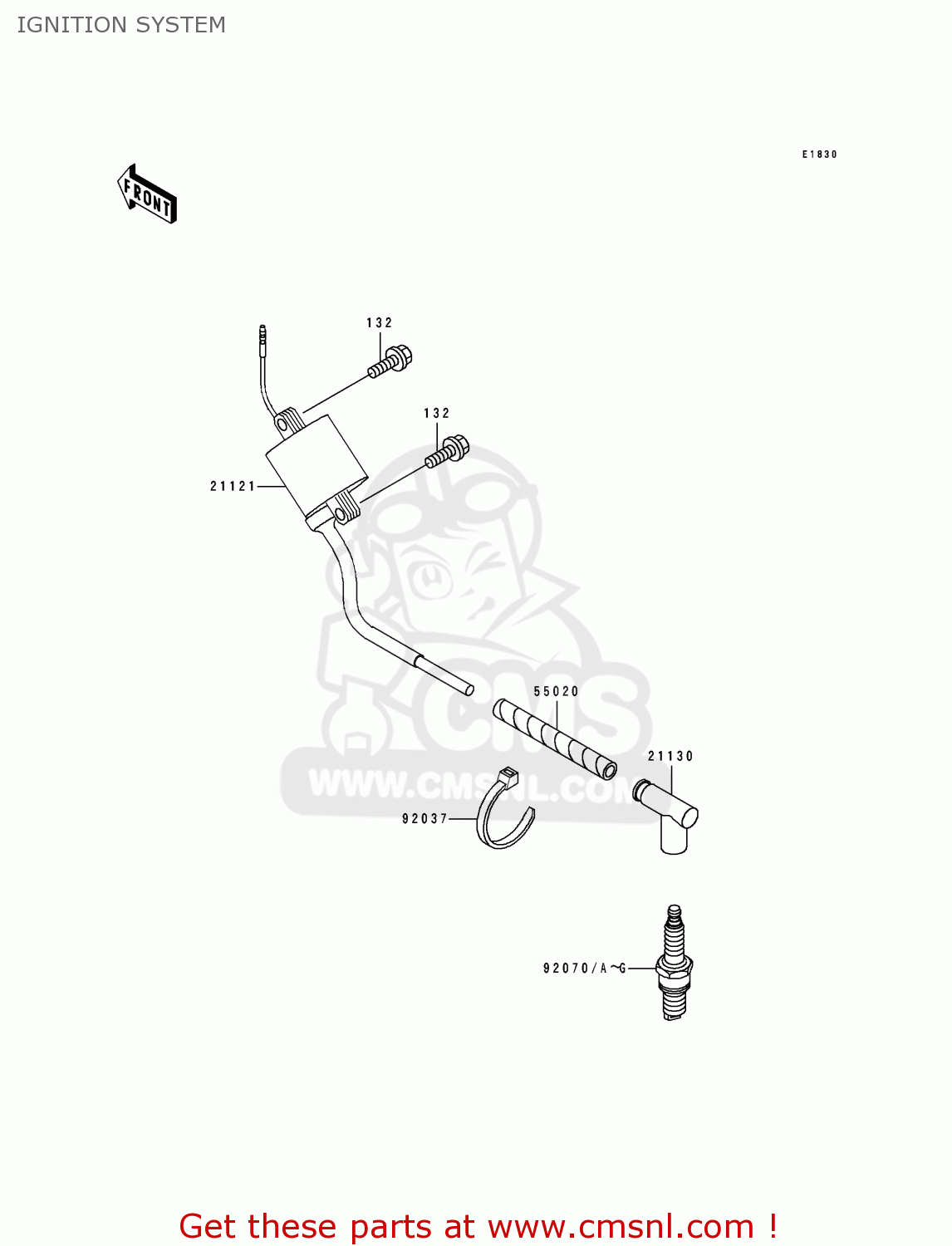

Ignition system diagram KX100-B5 1995 EUROPE AS

IGNITION SYSTEM KX100-B5 1995 EUROPE AS

IGNITION SYSTEM KX100-B5 1995 EUROPE AS

prices are in EUR

ref

part #

description

quantity

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

21121

211211205
ref: 21121

COIL-IGNITION

€ 73.00

21130

211301062
ref: 21130

CAP-SPARK PLUG

€ 28.50

92037

920371173
ref: 92037

CLAMP,SPARK PLUG CAP

€ 1.00

92070

920701240
ref: 92070
AS

R6254K-105 (NGK SPARK

€ 23.50

92070A

920701241
ref: 92070A
EU

R6252K-105 (NGK SPARK

€ 33.50
