CRANKSHAFT/PISTON(S)
KX100-B2 1992 EUROPE UK AL AS

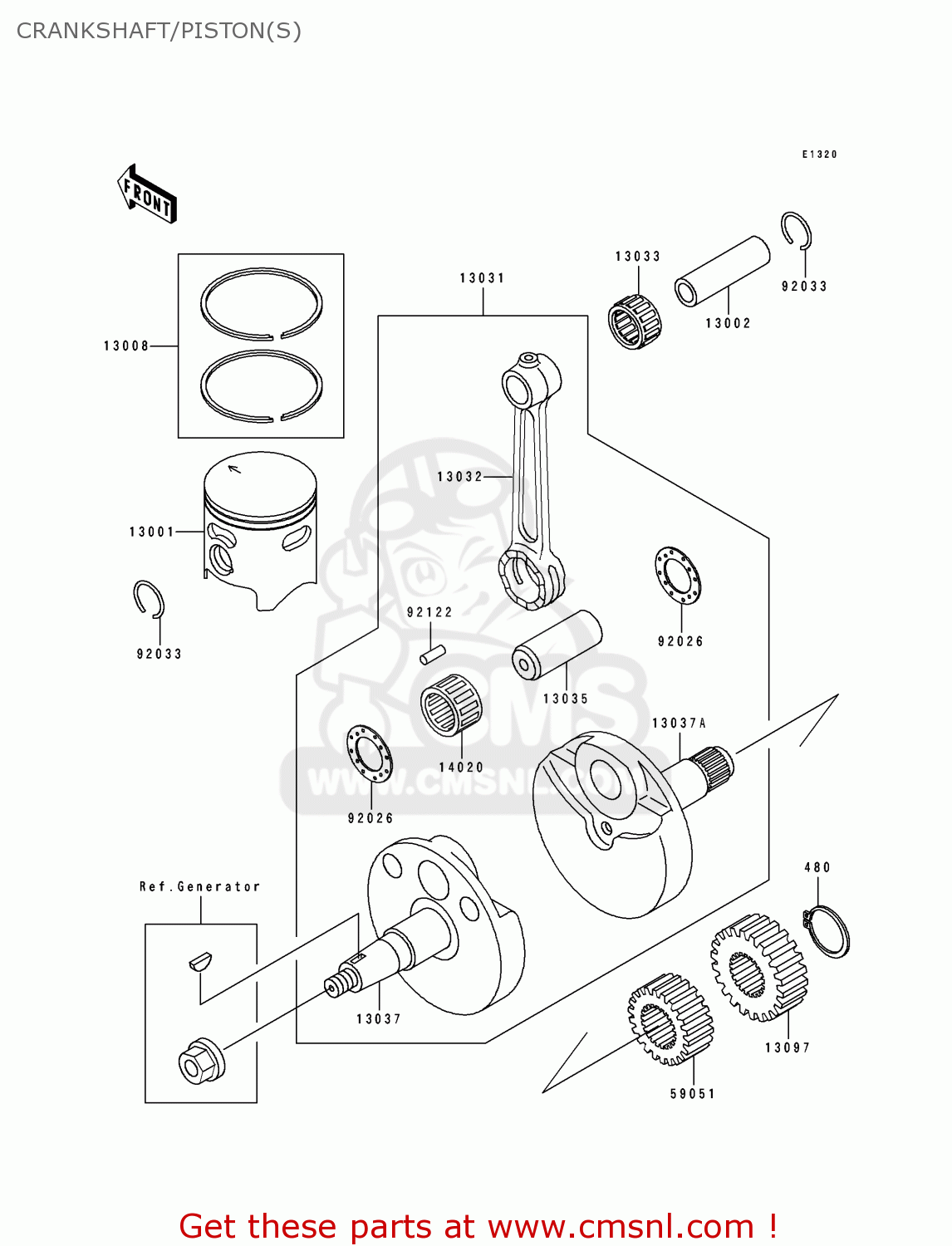

Crankshaft/piston(s) diagram KX100-B2 1992 EUROPE UK AL AS
CRANKSHAFT/PISTON(S) KX100-B2 1992 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
480
480J1600
ref: 480
CIRCLIP-TYPE-C,16MM
€ 2.50
13001
130011308
ref: 13001
PISTON-ENGINE,(B)
€ 60.50
13002
130021018
ref: 13002
PIN-PISTON
€ 26.00
13008
130081107
ref: 13008
RING-SET-PISTON
€ 40.50
13031
130311313
ref: 13031
CRANKSHAFT-COMP
€ 222.00
13032
130321039
ref: 13032
ROD-CONNECTING
€ 67.50
13033
130331053
ref: 13033
BEARING-SMALL END,14R
€ 22.00
13035
130351054
ref: 13035
PIN-CRANK
€ 23.50
13037
130371396
ref: 13037
CRANKSHAFT,LH
€ 139.00
13037A
130371397
ref: 13037A
CRANKSHAFT,RH
€ 145.50
13097
130971148
ref: 13097
GEAR-PRIMARY SPUR,20T
€ 60.50
14020
140201076
ref: 14020
RETAINER
€ 37.50
59051
590511146
ref: 59051
GEAR-SPUR,PUMP,22T
€ 21.00
92026
920261136
ref: 92026
SPACER,22.2X37X1.0
€ 5.50
92033
920331050
ref: 92033
RING-SNAP
€ 2.00
92122
921221177
ref: 92122
ROLLER
€ 2.50
